EMD100-150A-2
Price from €310.00 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
|
Each servo motor comes with a 3-meter power and encoder cable in the package. |

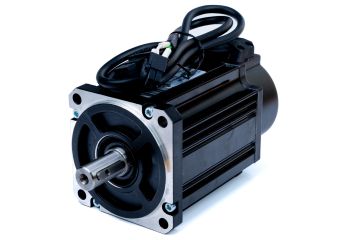

Servo Motor 1,5 kW
EMM-150A-B
- rated torque 6 Nm (max. 18 Nm)
- rated speed 2500 RPM (max. 3000 RPM)
- absolute 23bit encoder
- IP65
- optional brake
Price from €304.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Servo Motor 1,5 kW
Models
Filter: ()
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEMM-110SP180A30PBYYBMotor EPD: flange 110mm, 1,8kW, 3000rpmIn stockWarranty: €500.00€615.00Login to check your price EMM-110SP180A30PBYYBMotor EPD: flange 110mm, 1,8kW, 3000rpmAvailability:In stockNet price:€500.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEMM-130SP100A20PAYYBMotor EPD: flange 130mm, 1kW, 2000rpmIn stockWarranty: €304.00€373.92Login to check your price EMM-130SP100A20PAYYBMotor EPD: flange 130mm, 1kW, 2000rpmAvailability:In stockNet price:€304.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEMM-130SP150A20PAYYBMotor EPD: flange 130mm, 1kW, 2000rpmOut of stock Warranty: €336.00€413.28Login to check your price EMM-130SP150A20PAYYBMotor EPD: flange 130mm, 1kW, 2000rpmAvailability: Out of stockNet price:€336.00
Useful products
Description
The wide power range of Elmatic servo motors allows them to be adapted to any size of machine. However, if the application requirements are higher, we offer planetary gears (LINK) that will significantly improve the performance of servo motors. Full motor specification later in the description.
What makes Elmatic servo unique?
- High dynamics: operating frequency of 1.3 kHz is a fast response of the system allowing suppression of fluctuations caused by low inertia or stiffness.
- 3-times overloading possibility.
- High resolution encoder: motors are equipped with a built-in encoder with a resolution of 23 bits, which allows the detection of over 8 million different positions..
- Attractive price: a motion control solution with wide possibilities while maintaining an attractive price.
Technical Specification
| Rated Output Power (kW) | 1,5 |
| Rated Torque (Nm) | 6 |
| Peak Torque (Nm) | 18 |
| Rated Current (A) | 6 |
| Rated Speed (RPM) | 2500 |
| Max. Speed (RPM) | 3000 |
| Rotor Moment of Inertia (with brake) (kg*cm^2) | 15,3 |
| Insulation class | F |
| Enclosure | IP65 / NEMA4X |

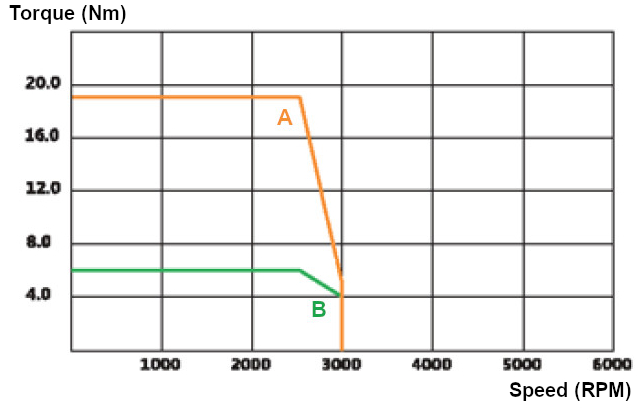

- Torque/speed curve (A - intermittent duty zone, B - continous duty zone)
Download
