Manufacturer: Lenze

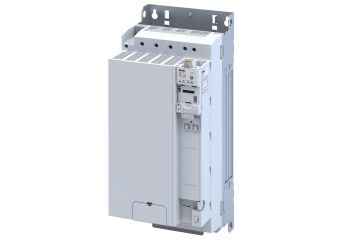

Frequency inverter Lenze i550 cabinet series with a power of 37 kW and 3x400V supply.
- Built-in communication: EtherCAT
- Output current: 76/65 A
- Optional STO functionality
- Integrated EMC filter
- Compact dimensions for space-saving in the control cabinet
- Servo control (SC-ASM) with feedback; U/f with feedback
- Energy-saving function (VFC Eco)
Price from €4,026.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Frequency inverter Lenze i550 cabinet 37kW 3x400VAC EtherCAT
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI55AE337F10V1000KSLenze i550-C37/400-3; 37 kW; 3x400VAC; EtherCAT; without STO; standard I/OOut of stock Warranty: €4,026.00€4,951.98Login to check your price I55AE337F10V1000KSLenze i550-C37/400-3; 37 kW; 3x400VAC; EtherCAT; without STO; standard I/OAvailability: Out of stockNet price:€4,026.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI55AE337F1AV1000KSLenze i550-C37/400-3; 37 kW; 3x400VAC; EtherCAT; Basic Safety – STO; standard I/OOut of stock Warranty: €4,075.00€5,012.25Login to check your price I55AE337F1AV1000KSLenze i550-C37/400-3; 37 kW; 3x400VAC; EtherCAT; Basic Safety – STO; standard I/OAvailability: Out of stockNet price:€4,075.00
Description
Technical Specification
| Specification | I55AE337F10V1000KS | I55AE337F1AV1000KS |
|---|---|---|
| Rated Power | 37 kW/50 HP | |
| Supply Voltage | 3/PE 400/480 V AC | |
| Output Current | 76/65 A | |
| Output Frequency | 0-599 Hz | |
| IP code | IP20 | |
| EMC Filter | Integrated | |
| Mounting Location | Control Cabinet | |
| I/O Extension | Standard I/O | |
| Number of Connections | 5 digital inputs, 1 digital output, 2 analog inputs, 1 analog output, 1 relay output NO/NC, Frequency input 0...100kHz |
|
| Industrial Communication Bus | EtherCAT | |
| Safety Functions | None | Basic Safety - STO |
| Approvals / Standards | CE, UL, CSA, EAC, RoHS | |
| Operating Temperature | -10°C to +50°C | |
| Overload Capacity | 200% for 3 s; 150% for 60 s | |
| Motor Control | - Energy-saving function (VFC Eco) - Linear/quadratic control according to U/f characteristic (VFC Plus) - Sensorless vector control (SLVC) - Sensorless vector control for synchronous motors (up to 22 kW) - Servo control (SC-ASM) with feedback - Control according to U/f characteristic with feedback |
|
| Additional Functions | DC braking, brake control, S-ramps, flying start, PID controller, dynamic braking using a resistor | |
| Switching Frequencies | 2, 4, 8, 16 kHz | |
| Weight | 16,3 kg | 16,3 kg |
