- No additional externl power supply require
- KNX commissioning, addressing and parameters settings
- KNX protocol and system visualization
- Diagnostic operations
- Long messages support up to 220 byte APDU
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddKSI-01UKNX-USB interfaceIn stockWarranty: €154.90€190.53Login to check your price KSI-01UKNX-USB interfaceAvailability:In stockNet price:€154.90
Description

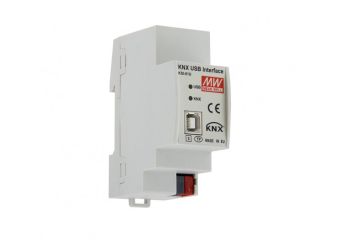

The KSI-01 U is an USB interface providing galvanic isolated bidirectional access to the KNX bus line. It makes network configurations less effort and time-consuming.The KSI-01 U is used to access all bus connected devices in the KNX bus system including commissioning, addressing, setting parameters, diagnostic functions, visualization, protocol....etc.
The connection between the KNX data bus and a PC with standard software like ETS, EITT (also Raw Frame operating mode) and other software is handled by the FALCON driver. The KSI-01U supports long messages (up to 220 byte APDU length) and ensures easy handling in software under operating systems not supported by the FALCON driver (e.g. Linux). The communication protocol used for communication between interface and host is the flexible “cEMl” protocol.
Technical Specification
KSI-01U: DETAILS
