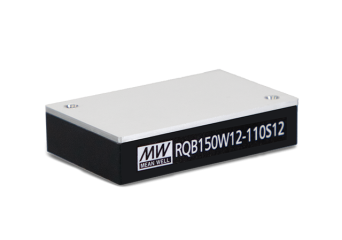

RQB150W3

Railway DC/DC 150W converter

Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
  • wide input voltage range: 14~160VDC
  • input/output isolation 3kVDC / 1.5kVAC
  • short-circuit and overload protection
  • overvoltage and temperature protection
  • remote on/off
  • compliance with railway standard EN50155
  • open-air cooling
  • working temperature -40~+90°C
  • 3 years warranty

Prices with discounts and exact stock levels are visible after logging in to the e-shop.

Price from €133.70 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 4 models

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    RQB150W12-110S12
    DC/DC module 150W 14~160V 12V 12.5A
    Out of stock Warranty:
    €133.70
    €164.45
    Login to check your price
    132 pieces in box
    RQB150W12-110S12
    DC/DC module 150W 14~160V 12V 12.5A
    Availability: Out of stock
    Net price:
    €133.70
    132 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    RQB150W12-110S24
    DC/DC module 150W 14~160V/ 24V 6.25A
    Out of stock Warranty:
    €133.70
    €164.45
    Login to check your price
    132 pieces in box
    RQB150W12-110S24
    DC/DC module 150W 14~160V/ 24V 6.25A
    Availability: Out of stock
    Net price:
    €133.70
    132 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    RQB150W12-110S48
    DC/DC module 150W 14~160V/ 48V 3.125A
    Out of stock Warranty:
    €133.70
    €164.45
    Login to check your price
    132 pieces in box
    RQB150W12-110S48
    DC/DC module 150W 14~160V/ 48V 3.125A
    Availability: Out of stock
    Net price:
    €133.70
    132 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    RQB150W12-110S54
    DC/DC module 150W 14~160V/ 54V 2.778A
    Out of stock Warranty:
    €133.70
    €164.45
    Login to check your price
    132 pieces in box
    RQB150W12-110S54
    DC/DC module 150W 14~160V/ 54V 2.778A
    Availability: Out of stock
    Net price:
    €133.70
    132 pieces in box

Description

The series of single output converters for through-hole mounting is designed for use in electronics. Wide range of input voltages, high efficiency up to 89%, wide range of operating temperatures (-40~90°C). Thanks to the high short-circuit strength (depending on the model up to 3kVDC) and compliance with the EN50155 standard, the devices are suitable for use on railways, trams, buses or in other harsh environmental conditions.

Technical Specification

Model Input Output Ripple&Noise Dimensions
RQB150W3-110S12 14~160VDC 12V, 12.5A 240mV 57.9x36.8x12.7mm
RQB150W3-110S24 14~160VDC 24V, 6.25A 240mV 57.9x36.8x12.7mm
RQB150W3-110S48 14~160VDC 48V, 3.125A 480mV 57.9x36.8x12.7mm
RQB150W3-110S54 14~160VDC 54V, 2.778A 480mV 57.9x36.8x12.7mm
