new
- DALI-2 DT6(Dimming) or DT8 (Tunable
white/RGBW) control available - Constant voltage PWM style output with 1 to 4 channels
- Standby power consumption <0.5W
- Flicker free, complying with CE ErP directive
- Plastic housing with class Il and PFC design
- Function options: 3 in 1dimming/DALI-2+PUSH Dimming
- Minimum dimming level 0.1%(DALI-2)
- Cooling by free air convection
- 5 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
SPWM-150
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPWM-150-12LED driver 150W 12V 12.5AIn delivery Warranty: €33.80€41.57Login to check your price SPWM-150-12LED driver 150W 12V 12.5AAvailability: In deliveryNet price:€33.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPWM-150-12DA2LED driver 150W 12V 12.5A DALI2In delivery Warranty: €37.00€45.51Login to check your price SPWM-150-12DA2LED driver 150W 12V 12.5A DALI2Availability: In deliveryNet price:€37.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPWM-150-12DA2QLED driver 150W 12V 12.5A DALI2 4 channelsIn delivery Warranty: €43.40€53.38Login to check your price SPWM-150-12DA2QLED driver 150W 12V 12.5A DALI2 4 channelsAvailability: In deliveryNet price:€43.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPWM-150-24LED driver 151.2W 24V 6.3AIn delivery Warranty: €33.80€41.57Login to check your price SPWM-150-24LED driver 151.2W 24V 6.3AAvailability: In deliveryNet price:€33.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPWM-150-24DA2LED driver 151.2W 24V 6.3A DALI2In stockWarranty: €37.00€45.51Login to check your price SPWM-150-24DA2LED driver 151.2W 24V 6.3A DALI2Availability:In stockNet price:€37.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPWM-150-24DA2QLED driver 151.2W 24V 6.3A DALI2 4 channelsIn stockWarranty: €43.40€53.38Login to check your price SPWM-150-24DA2QLED driver 151.2W 24V 6.3A DALI2 4 channelsAvailability:In stockNet price:€43.40
Description

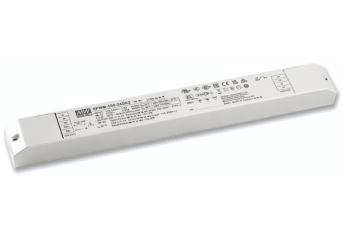

SPWM-150 series is a 150W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips. SPWM-150 operates from 100~305VAC and offers models with different rated voltage ranging include 12V and 24V. Thanks to the high efficiency up to 92%,with the fanless design,the entire series is able to operate for -20~+90°C case temperature under free air convention.SPWM-150 is equipped with various function options, such as dimming methodologies with DALI-2 , so as to provide the optimal design flexibility for LED lighting system.
Technical Specification
- MEAN WELL SPWM-150: 150W RGBW LED power supply
Model | Output | Regulation | Efficiency | Dimension |
SPWM-150-12 | 12V, 0~12.5A, 150W | 11V~14V | 92% | 340x38x28.5mm |
SPWM-150-24 | 24V, 0~6.3A, 150W | 23V~26V | 92% | 340x38x28.5mm |
