- DALI-2 DT6(Dimming) or DT8 (Tunable
white/RGBW) control available - Constant voltage PWM style output with 1 to 4 channels
- Standby power consumption <0.5W
- Flicker free, complying with CE ErP directive
- Plastic housing with class Il and PFC design
- Function options: 3 in 1dimming/DALI-2+PUSH Dimming
- Minimum dimming level 0.1%(DALI-2)
- Cooling by free air convection
- 5 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only

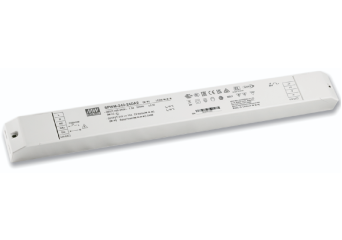

SPWM-240
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPWM-240-24LED driver 240W 24V 10AIn delivery Warranty: €41.00€50.43Login to check your price SPWM-240-24LED driver 240W 24V 10AAvailability: In deliveryNet price:€41.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPWM-240-24DA2LED driver 240W 24V 10A DALI2In stockWarranty: €43.40€53.38Login to check your price SPWM-240-24DA2LED driver 240W 24V 10A DALI2Availability:In stockNet price:€43.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPWM-240-24DA2QLED driver 240W 24V 10A DALI2 4 channelsIn stockWarranty: €49.80€61.25Login to check your price SPWM-240-24DA2QLED driver 240W 24V 10A DALI2 4 channelsAvailability:In stockNet price:€49.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPWM-240-48LED driver 240W 48V 10AIn delivery Warranty: €41.00€50.43Login to check your price SPWM-240-48LED driver 240W 48V 10AAvailability: In deliveryNet price:€41.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPWM-240-48DA2LED driver 240W 48V 10A DALI2Out of stock Warranty: €43.40€53.38Login to check your price SPWM-240-48DA2LED driver 240W 48V 10A DALI2Availability: Out of stockNet price:€43.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSPWM-240-48DA2QLED driver 240W 48V 10A DALI2 4 channelsOut of stock Warranty: €49.80€61.25Login to check your price SPWM-240-48DA2QLED driver 240W 48V 10A DALI2 4 channelsAvailability: Out of stockNet price:€49.80
Description
SPWM-240 series is a 240W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips. SPWM-240 operates from 180~305VAC and offers models with different rated voltage ranging include 24V and 48V. Thanks to the high efficiency up to 94%,with the fanless design,the entire series is able to operate for -20~+90°C case temperature under free air convention.SPWM-240 is equipped with various function options, such as dimming methodologies with DALI-2 , so as to provide the optimal design flexibility for LED lighting system. It can also be used as a power supply for LED Neon tubes and other types of LED lighting.
Technical Specification
- MEAN WELL SPWM-240: 240W RGBW LED power supply
Model | Output | Regulation | Efficiency | Dimension |
SPWM-240-24 | 24V, 0~10A, 240W | 23V~26V | 93% | 380x38x28.5mm |
SPWM-240-48 | 48V, 0~5A, 240W | 47V~50V | 94% | 380x38x28.5mm |
