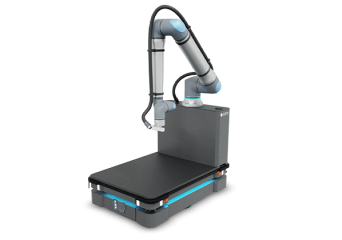

MC600 Mobile Manipulator

Heavy-duty power and enormous reach in one device

The MC600 (ER-FLEX-MAX series) is the most powerful mobile manipulator in the range, combining the MiR600 platform with the power of the new generation of Universal Robots. It is an industrial-grade solution for automating the heaviest tasks, such as machine tending and palletising. With its robust design and long reach, it effectively replaces operators in tasks requiring considerable physical strength.

Power and precision

The MC600 is available in two variants – with an arm UR20 or UR30 – allowing you to choose the configuration that best suits your application requirements in terms of payload and reach. The vision system enables arm positioning with an accuracy of 1 mm, ensuring high repeatability and motion control. With a maximum reach of 1750 mm, the robot operates effectively in large working areas.

Value for your business

Implementing the MC600 is a step towards automating heavy-duty processes, ensuring continuity of operation for up to 18 hours a day. The robot software allows you to quickly create and modify tasks, easily coordinate work with other systems in the plant and fully utilise the robot's potential, which translates into time savings, cost reductions and greater production flexibility, as well as savings and increased efficiency in your plant.

Key technical parameters

The MC600 combines the robustness of a mobile base with the capabilities of the most powerful cobots:

• Compatibility: dedicated for UR20 and UR30.

• Transport capacity: transport of goods on the platform up to 380 kg.

• Reach and force: manipulation of elements up to 30 kg or a reach of up to 1750 mm.

• Speed: maximum travel speed 2 m/s.

• Resistance: protection class IP52 (base) and IP54 (tower and arm).

• Dimensions: base 1350 x 910 mm.

Example applications

Due to its high payload and reach, the MC600 is designed for tasks that exceed the capabilities of smaller robots:

• Handling heavy machinery: automatic loading and unloading of parts weighing up to 30 kg from CNC machine tools.

• Mobile palletising: stacking products on pallets in various locations in the hall without the need for a stationary robot.

• Operations in hard-to-reach places: a robot arm with a reach of up to 1750 mm (cobot UR20) allows handling of parts and components in places inaccessible to smaller robots.

• Transport and assembly: transporting heavy semi-finished products between stations and positioning them precisely.

• Large-scale logistics: picking and moving large containers or heavy industrial components.

Available configurations

The robot is available in variants adapted to the specific characteristics of the load being handled:

• Variant with UR20 – Maximum arm reach 1750 mm, payload up to 25 kg.

• Variant with UR30 – Maximum arm reach 1300 mm, payload up to 35 kg.
