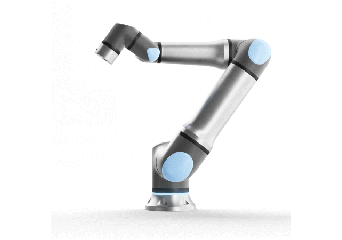

UR30 collaborative robot

The UR30 model is a revolutionary cobot, created from scratch based on many years of experience of Universal Robots engineers. The result is a tool that is even stronger, faster and more efficient, allowing you to complete more demanding tasks in less time.

It enables the automation of repetitive and dangerous tasks with a load capacity of up to 35 kg. The robot arm has a reach of up to 1300 mm and a repeatability of 0.1 mm. It is ideal for automating tedious tasks such as:

• Pick & Place
• packaging and palletising
• screwing
• welding
• assembly
• polishing and grinding
• operating CNC machines and injection moulding machines
• soldering, gluing, painting

The UR30 cobot is easy to programme, quick to install and has a built-in safety system, making it a "friendly co-worker". It also offers a competitive advantage with the fastest return on investment in the industry.

The UR30 collaborative robot is equipped with, among other things, 16 digital I/O, safety I/O, analogue I/O, encoder I/O and a socket for communication using Modbus TCP, Profinet and Ethernet/IP protocols.

Kit contents:

• UR30 collaborative robot arm
• Control Box
• 3-position Teach Pendant with PolyScope software
• mounting bracket for control box
• mounting bracket for teach pendant
• key for the control box
• power cable mains
• robot arm cable
• user manual

Unlike the standard robot, the OEM Control Box version does not have a housing and does not include a Teach Pendant. This version is designed for installation in a workstation.

OEM kit contents:

• UR30 collaborative robot arm
• Control Box without housing
• power cable mains
• robot arm cable
• user manual

Various software versions are available:

• PolyScope X software
• PolyScope 5 software

PolyScope X is a newer, 64-bit version of the system, characteristic of new-generation cobots. It is equipped with a greater number of advanced functions and smart skills. In addition, thanks to an improved interface, programming the robot is even easier.

Would you like to know the price of the robot and learn about the possibilities of robotising processes? Fill out the form and we will contact you.
