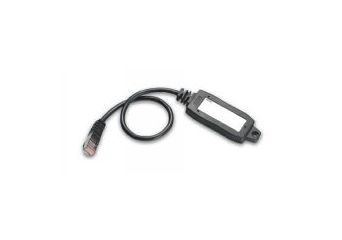

ABC-01

RS-232-based configuration backup and restoration tool for managed switches and WLAN products

Manufacturer: MOXA

Rugged, reliable design
RS-232 RJ45 console port connection
Load the system configuration automatically after system reboot
Supports Moxa's managed Ethernet switches and wireless APs/bridges/clients products
Plug-and-Play system configuration backup and restoration

Price from €73.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Models
Description
Technical Specification
Download
Recommended Products

ABC-01

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
ABC-01 Automatic Backup Configurator	Out of stock	Warranty:		€73.00 €89.79 Login to check your price	Login to check your price	pcs.

ABC-01

Automatic Backup Configurator

Availability: Out of stock

Net price:

€73.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
ABC-01-M12 Configuration backup and restoration tool with M12 Connection	Out of stock	Warranty:		€102.00 €125.46 Login to check your price	Login to check your price	pcs.

ABC-01-M12

Configuration backup and restoration tool with M12 Connection

Availability: Out of stock

Net price:

€102.00

Description

The ABC-01 Series automatic backup configurators are designed for system backup and restoration to enhance maintenance efficiency and reduce system downtime. The ABC-01 Series can be used to save and load the configuration of Moxa’s Ethernet switches and AWK wireless APs/bridges/clients through the RS-232 console port. The ABC-01 Series makes it easier to manage the backup of system parameters and perform configurations.

Technical Specification

Interface

Connector

RJ45

Basic Operation

Storage Capacity

128 KB Flash

Power Parameters

Input Voltage

3 to 5 VDC (through the RS-232 port's RTS signal)

Physical Characteristics

Housing	PVC molding
IP Rating	IP40
Dimensions	32.5 x 97 x 12 mm (1.28 x 3.82 x 0.47 in)
Weight	50 g (0.11 lb)
Installation	M4 screws (<4 mm)
Cable Length	35ą3 cm (including connector)

Environmental Limits

Operating Temperature	0 to 60°C (32 to 140°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

EMC	EN 55032 Class A
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
