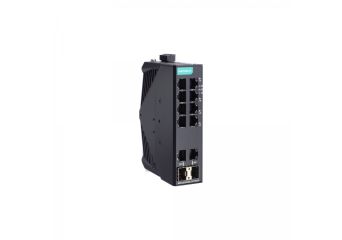

EDS-2010-ML

8+2G-port Gigabit unmanaged Ethernet switches

Manufacturer: MOXA
Manufacturer: MOXA
  •  2 Gigabit uplinks with flexible interface design for high-bandwidth data aggregation
  •  QoS supported to process critical data in heavy traffic
  •  Relay output warning for power failure and port break alarm
  •  IP30-rated metal housing
  •  Redundant dual 12/24/48 VDC power inputs
  •  -40 to 75°C operating temperature range (-T models)
Price from €410.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €500

See 2 models

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    EDS-2010-ML-2GTXSFP
    Unmanaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP ports, and -10 to 60°C operating temperature
    In delivery Warranty: 60 months
    €410.00
    €504.30
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    EDS-2010-ML-2GTXSFP-T
    Unmanaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP ports, and -40 to 75°C operating temperature
    In stock
    Warranty: 60 months
    €483.00
    €594.09
    Login to check your price

Accessories

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    DIN rail power supply 15W 24V 0.63A
    In stock
    Warranty: 36 months
    €13.10
    €16.11
    Login to check your price
    160 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    LM28-C3S-TI-N-DD
    Small Form Factor pluggable transceiver with 1000BaseSX, LC connector, 0.5 km compatible with Moxa`s switches
    In stock
    Warranty: 24 months
    €50.00
    €61.50
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    LM38-A3S-TI-N-DD
    Small Form Factor pluggable transceiver with 100Base multi-mode, LC connector, 2 km compatible with Moxa`s switches
    In delivery Warranty: 24 months
    €52.00
    €63.96
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    LS38-A3S-TI-N-DD
    Small Form Factor pluggable transceiver with 100Base single-mode, LC connector, 40Km compatible with Moxa`s switches
    In stock
    Warranty: 24 months
    €54.00
    €66.42
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    LS38-C3S-TI-N-DD
    Small Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km compatible with Moxa`s switches
    In stock
    Warranty: 24 months
    €58.00
    €71.34
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    19" Rackmont set
    In stock
    Warranty: 24 months
    €144.00
    €177.12
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    Small Form Factor pluggable transceiver with 100Base multi-mode, LC connector, 4Km, -40 to 85°C
    In delivery Warranty: 60 months
    €106.00
    €130.38
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    Small Form Factor pluggable transceiver with 100Base single-mode, LC connector, 40Km, -40 to 85°C
    In delivery Warranty: 60 months
    €239.00
    €293.97
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    Small Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km, 0 to 60°C
    In stock
    Warranty: 60 months
    €223.00
    €274.29
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    Small Form Factor pluggable transceiver with 1000BaseSX, LC connector, 0.5 km, 0 to 60°C
    In stock
    Warranty: 60 months
    €126.00
    €154.98
    Login to check your price

Description

The EDS-2010-ML series of industrial Ethernet switches have eight 10/100M copper ports and two 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, which are ideal for applications that require high-bandwidth data convergence. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2010-ML Series also allows users to enable or disable the Quality of Service (QoS) function, broadcast storm protection, and the port break alarm function with DIP switches on the outer panel.

The EDS-2010-ML Series has 12/24/48 VDC redundant power inputs, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2010-ML Series has passed a 100% burn-in test to ensure it will function reliably in the field. The EDS-2010-ML Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.

Technical Specification

  • Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) 8
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) 2
Auto negotiation speed
Auto MDI/MDI-X connection
Full/Half duplex mode
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for flow control
IEEE 802.1p for Class of ServiceDIP Switch Configuration



Ethernet Interface Quality of Service (QoS), Broadcast storm protection, Port break alarm
  • Input/Output Interface
Alarm Contact Channels Relay output with current carrying capacity of 1 A @ 24 VDC
  • Switch Properties
MAC Table Size 8 K
Packet Buffer Size 4 Mbits
Processing Type Store and Forward
  • Power Parameters
Connection 1 removable 6-contact terminal block(s)
Input Current 0.251 A @ 24 VDC
Input Voltage 12/24/48 VDC, Redundant dual inputs
Operating Voltage 9.6 to 60 VDC
Overload Current Protection Supported
Reverse Polarity Protection Supported
  • Physical Characteristics
Housing Metal
IP Rating IP30
Dimensions 36 x 135 x 95 mm (1.41 x 5.31 x 3.74 in)
Weight 498 g (1.10 lb)
Installation DIN-rail mounting, Wall mounting (with optional kit)
  • Environmental Limits
Operating Temperature EDS-2010-ML-2GTXSFP: -10 to 60°C (14 to 140°F)
EDS-2010-ML-2GTXSFP-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
Safety UL 61010-2-201, EN 62368-1(LVD)
EMC EN 55032/35
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Hazardous Locations Class I Division 2, ATEX, IECEx
Railway EN 50121-4
Traffic Control NEMA TS2
Vibration IEC 60068-2-6
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
  • MTBF
Time 2,174,016 hrs
Standards Telcordia (Bellcore), GB
