ANT-WDB-ARM-0202

2 dBi at 2.4 GHz or 2 dBi at 5 GHz, RP-SMA (male), dual-band, omnidirectional antennas

Manufacturer: MOXA

Small size for easy installation
Lightweight for portable deployment
Tilt and swivel design
Flexible installation
RP-SMA-type (male) connector

Price from €7.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Models
Description
Technical Specification
Download
Recommended Products

ANT-WDB-ARM-0202

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
ANT-WDB-ARM-0202 2.4/5GHz, dual-band omni-directional antenna, 1.8/1.8 dBi, RP-SMA (male) connector	In stock	Warranty:		€7.00 €8.61 Login to check your price	Login to check your price	pcs.

ANT-WDB-ARM-0202

2.4/5GHz, dual-band omni-directional antenna, 1.8/1.8 dBi, RP-SMA (male) connector

Availability:

In stock

Net price:

€7.00

Description

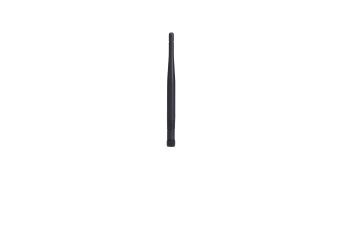

The ANT-WDB-ARM-0202 is an omni-directional lightweight compact dual-band indoor antenna with RP-SMA (male) connectors. The antenna provides a gain of 2/2 dBi and is designed to operate in temperatures from -40 to 75°C.

Technical Specification

Antenna Characteristics

Frequency	2.4 to 2.5, 4.9 to 5.825 GHz
Antenna Type	Omni-directional
Typical Antenna Gain	2/2 dBi
Connector	RP-SMA (male)
Impedance	50 ohms
Polarization	Linear
HPBW/Horizontal	360°
V.S.W.R.	2:1 max.
Power Handling	1 W (max.)

Physical Characteristics

Weight	9.65 g (0.02 lb)
Length	136 mm (5.35 in)
Radome Color	Black
Radome Material	Plastic
Installation	Straight mount

Environmental Limits

Operating Temperature	-40 to 75°C (-40 to 167°F)
Storage Temperature (package included)	-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity	5 to 95% (30°C, non-condensing)
