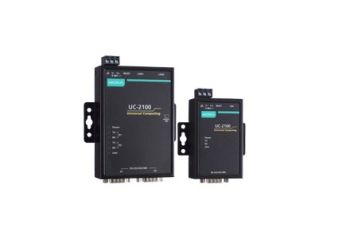

UC-2100
Arm Cortex-A8 600 MHz palm-sized IIoT gateway with 1 mini PCIe expansion slot for a wireless module
Manufacturer: MOXA
Manufacturer: MOXA
- Armv7 Cortex-A8 600-1000 MHz processor
- 1 or 2 auto-sensing 10/100 Mbps Ethernet ports
- Gigabit Ethernet supported (UC-2112)
- Up to 2 software-selectable RS-232/422/485 ports supporting all signals
- Moxa Industrial Linux with 10-year superior long-term support
- microSD socket for storage expansion (UC-2111, UC-2112)
- Mini PCIe socket for Wi-Fi/cellular module (UC-2104)
- -40 to 75°C wide-temperature model available with hazardous locations certification
Price from €213.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUC-2101-LXMini RISC-based embedded computer with 600 MHz processor, 1 serial port and 1 LAN port.Recommended
In stockWarranty: €326.00€400.98Login to check your price UC-2101-LXMini RISC-based embedded computer with 600 MHz processor, 1 serial port and 1 LAN port.Recommended
Availability:In stockNet price:€326.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUC-2102-LXMini RISC-based embedded computer with 600 MHz processor and 2 LAN ports.Out of stock Warranty: €326.00€400.98Login to check your price UC-2102-LXMini RISC-based embedded computer with 600 MHz processor and 2 LAN ports.Availability: Out of stockNet price:€326.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUC-2104-LXMini RISC-based embedded computer with 600 MHz processer, 1 LAN port, 1 mini-PCIe socket for wireless capability.Out of stock Warranty: €345.00€424.35Login to check your price UC-2104-LXMini RISC-based embedded computer with 600 MHz processer, 1 LAN port, 1 mini-PCIe socket for wireless capability.Availability: Out of stockNet price:€345.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUC-2111-LXCompact RISC-based embedded computer with 600 MHz processes, 2 serial ports, 2 LAN ports and micro SD card socket.In stockWarranty: €398.00€489.54Login to check your price UC-2111-LXCompact RISC-based embedded computer with 600 MHz processes, 2 serial ports, 2 LAN ports and micro SD card socket.Availability:In stockNet price:€398.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUC-2112-LXCompact RISC-based embedded computer with 1GHz processor, 2 serial ports, 2 LAN ports (1 Gb Ethernet), and micro SD card socket.In stockWarranty: €476.00€585.48Login to check your price UC-2112-LXCompact RISC-based embedded computer with 1GHz processor, 2 serial ports, 2 LAN ports (1 Gb Ethernet), and micro SD card socket.Availability:In stockNet price:€476.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUC-2112-T-LXCompact RISC-based embedded computer with 1GHz processor, 2 serial ports, 2 LAN ports (1 Gb Ethernet), micro SD card socket and -40~75 operating temperature.In stockWarranty: €533.00€655.59Login to check your price UC-2112-T-LXCompact RISC-based embedded computer with 1GHz processor, 2 serial ports, 2 LAN ports (1 Gb Ethernet), micro SD card socket and -40~75 operating temperature.Availability:In stockNet price:€533.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUC-LTE-CAT1-EULTE regions: Asia, Europe, Penta-Band LTE: Bands 1, 3, 8, 20, 28 (700, 800, 900, 1800, 2100 MHz), Dual-Band GSM 900 and 1800 MHzIn stockWarranty: €213.00€261.99Login to check your price UC-LTE-CAT1-EULTE regions: Asia, Europe, Penta-Band LTE: Bands 1, 3, 8, 20, 28 (700, 800, 900, 1800, 2100 MHz), Dual-Band GSM 900 and 1800 MHzAvailability:In stockNet price:€213.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLTE Stick antenna that covers 704-960/1710-2620 MHz providingOut of stock Warranty: €31.00€38.13Login to check your price LTE Stick antenna that covers 704-960/1710-2620 MHz providingAvailability: Out of stockNet price:€31.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMulti-band antenna that covers 700-2700 MHz. Specially designedOut of stock Warranty: €72.00€88.56Login to check your price Multi-band antenna that covers 700-2700 MHz. Specially designedAvailability: Out of stockNet price:€72.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMulti-band antenna that covers 700-2700/2400-2500/5150-5850 MHz frequencies. Screw-fastened mounting and full IP67 waterproofing are available.Out of stock Warranty: €164.00€201.72Login to check your price Multi-band antenna that covers 700-2700/2400-2500/5150-5850 MHz frequencies. Screw-fastened mounting and full IP67 waterproofing are available.Availability: Out of stockNet price:€164.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddANT-WDB-ARM-0202 plus ADP1.8/1.8 dBi, RP-SMA (male) antenna with 1 SMA adapterOut of stock Warranty: €10.00€12.30Login to check your price ANT-WDB-ARM-0202 plus ADP1.8/1.8 dBi, RP-SMA (male) antenna with 1 SMA adapterAvailability: Out of stockNet price:€10.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCable (CBL-PJTB-10)In stockWarranty: €4.00€4.92Login to check your price Cable (CBL-PJTB-10)Availability:In stockNet price:€4.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN Rail Mounting Kit 35mm, for DE-311/211, NPort 5200/5400, NPort W2250/2150In stockWarranty: €4.00€4.92Login to check your price DIN Rail Mounting Kit 35mm, for DE-311/211, NPort 5200/5400, NPort W2250/2150Availability:In stockNet price:€4.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add12V 1.5A, 5.5/2.1/7.5, w/Nut WT, -40 to 75°C, EU PlugIn stockWarranty: €38.00€46.74Login to check your price 12V 1.5A, 5.5/2.1/7.5, w/Nut WT, -40 to 75°C, EU PlugAvailability:In stockNet price:€38.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLTE regions: Asia, Europe, Penta-Band LTE: Bands 1, 3, 8, 20, 28 (700, 800, 900, 1800, 2100 MHz), Dual-Band GSM 900 and 1800 MHzIn stockWarranty: €213.00€261.99Login to check your price LTE regions: Asia, Europe, Penta-Band LTE: Bands 1, 3, 8, 20, 28 (700, 800, 900, 1800, 2100 MHz), Dual-Band GSM 900 and 1800 MHzAvailability:In stockNet price:€213.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUC-WiFi-USB802.11 ac/a/b/g/n WiFi mini PCIe module accessory package with screwsIn stockWarranty: €77.00€94.71Login to check your price UC-WiFi-USB802.11 ac/a/b/g/n WiFi mini PCIe module accessory package with screwsAvailability:In stockNet price:€77.00
Description
The UC-2100 Series computing platform is designed for embedded data acquisition and processing applications. The computer comes with up to two software selectable RS-232/422/485 full-signal serial ports and single or dual Ethernet ports. This palm-sized series of Arm-based computing platforms includes a variety of models for a wide range of interface requirements, such as single or dual serial and Ethernet ports, Gigabit Ethernet, and wireless connections. These versatile communication capabilities allow users to efficiently adapt the UC‑2100 for a variety of complex communications solutions.
The UC-2100 Series has a built-in Cortex-A8 Arm-based processor that has been optimized for a variety of industrial solutions. With its flexible interface options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites and is a useful communication platform for many other large-scale deployments. Models designed for wide temperature applications are available for use in extreme environments such as those found in the oil and gas industry. Furthermore, all models use the Moxa Industrial Linux platform, which provides optimized software features and long-term support.
Technical Specification
- Computer
| CPU | UC-2101-LX: Armv7 Cortex-A8 600 MHz UC-2102-LX: Armv7 Cortex-A8 600 MHz UC-2104-LX: Armv7 Cortex-A8 600 MHz UC-2111-LX: Armv7 Cortex-A8 600 MHz UC-2112-LX: Armv7 Cortex-A8 1 GHz UC-2112-T-LX: Armv7 Cortex-A8 1 GHz |
| DRAM | UC-2101-LX: 256 MB DDR3 UC-2102-LX: 256 MB DDR3 UC-2104-LX: 256 MB DDR3 UC-2111-LX: 512 MB DDR3 UC-2112-LX: 512 MB DDR3 UC-2112-T-LX: 512 MB DDR3 |
| Pre-installed OS | Moxa Industrial Linux (Debian 9, Kernel 4.4) See www.moxa.com/MIL |
| Storage Pre-installed | 8 GB eMMC |
| Storage Slot | UC-2111-LX: Micro SD slots x 1 UC-2112-LX: Micro SD slots x 1 UC-2112-T-LX: Micro SD slots x 1 |
- Computer Interface
| Ethernet Ports | UC-2101-LX: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 1 UC-2102-LX: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2 UC-2104-LX: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 1 UC-2111-LX: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2 UC-2112-LX: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 1, Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 1 UC-2112-T-LX: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 1, Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 1 |
| Serial Ports | UC-2101-LX: RS-232/422/485 ports x 1, software selectable (DB9 male) UC-2111-LX: RS-232/422/485 ports x 2, software selectable (DB9 male) UC-2112-LX: RS-232/422/485 ports x 2, software selectable (DB9 male) UC-2112-T-LX: RS-232/422/485 ports x 2, software selectable (DB9 male) |
| Console Port | RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1) |
| Expansion Slots | UC-2104-LX: mPCIe slot x 1 |
| Cellular Antenna Connector | UC-2104-LX: SMA x 2 |
| Number of SIMs | UC-2104-LX: 1 |
| SIM Format | UC-2104-LX: Standard |
| Buttons | Reset button, DIP switch for serial port configuration |
- Ethernet Interface
| Magnetic Isolation Protection | 1.5 kV (built-in) |
- Serial Interface
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
| Baudrate | 50 bps to 921.6 kbps |
| Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
| ESD Protection | 4 kV, for all signals |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
- LED Indicators
| System | Power x 1 |
| LAN | 2 per port (10/100 Mbps) UC-2112-LX, UC-2112-T-LX: 2 per port (10/100/1000 Mbps) |
| Serial | UC-2101-LX: 2 per port (Tx, Rx) UC-2111-LX: 2 per port (Tx, Rx) UC-2112-LX: 2 per port (Tx, Rx) UC-2112-T-LX: 2 per port (Tx, Rx) |
| User Programmable | UC-2101-LX: User x 1 UC-2102-LX: User x 2 UC-2111-LX: User x 1 UC-2112-LX: User x 1 UC-2112-T-LX: User x 1 |
| Wireless Signal Strength | UC-2104-LX: Cellular/Wi-Fi x 3 |
- Physical Characteristics
| Housing | Metal |
| Installation | Wall mounting, DIN-rail mounting (with optional kit) |
| Weight | UC-2101-LX: 190 g (0.42 lb) UC-2102-LX: 190 g (0.42 lb) UC-2104-LX: 220 g (0.49 lb) UC-2111-LX: 290 g (0.64 lb) UC-2112-LX: 290 g (0.64 lb) UC-2112-T-LX: 290 g (0.64 lb) |
| Dimensions (with ears) | UC-2101-LX: 73 x 80 x 28 mm (2.87 x 3.15 x 1.10 in) UC-2102-LX: 73 x 80 x 28 mm (2.87 x 3.15 x 1.10 in) UC-2104-LX: 80 x 80 x 30.8 mm (3.15 x 3.15 x 1.21 in) UC-2111-LX: 99 x 111 x 25.5 mm (3.90 x 4.37 x 1.00 in) UC-2112-LX: 99 x 111 x 25.5 mm (3.90 x 4.37 x 1.00 in) UC-2112-T-LX: 99 x 111 x 25.5 mm (3.90 x 4.37 x 1.00 in) |
| Dimensions (without ears) | UC-2101-LX: 50 x 80 x 28 mm (1.97 x 3.15 x 1.10 in) UC-2102-LX: 50 x 80 x 28 mm (1.97 x 3.15 x 1.10 in) UC-2104-LX: 57 x 80 x 30.8 mm (2.24 x 3.15 x 1.21 in) UC-2111-LX: 77 x 111 x 25.5 mm (3.03 x 4.37 x 1.00 in) UC-2112-LX: 77 x 111 x 25.5 mm (3.03 x 4.37 x 1.00 in) UC-2112-T-LX: 77 x 111 x 25.5 mm (3.03 x 4.37 x 1.00 in) |
- Environmental Limits
| Operating Temperature | UC-2101-LX: -10 to 60°C (14 to 140°F) UC-2102-LX: -10 to 60°C (14 to 140°F) UC-2104-LX: -10 to 70°C (14 to 158°F) UC-2111-LX: -10 to 60°C (14 to 140°F) UC-2112-LX: -10 to 60°C (14 to 140°F) UC-2112-T-LX: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | UC-2101-LX: -20 to 70°C (-4 to 158°F) UC-2102-LX: -20 to 70°C (-4 to 158°F) UC-2104-LX: -20 to 70°C (-4 to 158°F) UC-2111-LX: -20 to 70°C (-4 to 158°F) UC-2112-LX: -20 to 70°C (-4 to 158°F) UC-2112-T-LX: -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Shock | IEC 60068-2-27 |
| Vibration | 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached) |
- Power Parameters
| Input Voltage | 9 to 48 VDC |
| Input Current | 0.45 A @ 9 VDC, 0.084 A @ 48 VDC |
| Power Consumption | 4 W |
- MTBF
| Time | UC-2101-LX: 1,360,496 hrs UC-2102-LX: 1,652,339 hrs UC-2104-LX: 1,577,995 hrs UC-2111-LX: 985,911 hrs UC-2112-LX: 982,882 hrs UC-2112-T-LX: 982,882 hrs |
| Standards | Telcordia (Bellcore) Standard TR/SR |
- Reliability
| Alert Tools | External RTC (real-time clock) |
| Automatic Reboot Trigger | External WDT (watchdog timer) |
- Standards and Certifications
| Safety | IEC 60950-1, UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF |
| Hazardous Locations | UC-2112-LX, UC-2112-T-LX: Class I Division 2, ATEX Zone 2 |
| Green Product | RoHS, CRoHS, WEEE |
