Antennas GSM/HSPA/LTE

GSM / HSPA / LTE antennas for Mxoa mobile devices

Antennas GSM/GPRS
Antennas UMTS/HSPA
Antennas LTE

Price from €19.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 6 models

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Models
Technical Specification
Download
Recommended Products

Antennas GSM/HSPA/LTE

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CRF-SMA(M)/N(M)-300 CFD200 cable, N-type (male) to SMA (male), 3 meters	In stock	Warranty:		€43.00 €52.89 Login to check your price	Login to check your price	pcs.

CRF-SMA(M)/N(M)-300

CFD200 cable, N-type (male) to SMA (male), 3 meters

Availability:

In stock

Net price:

€43.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
ANT-LTE-ASM-02 Antenna, Cellular band on UMTS/LTE, Omni directional, 2 dBi, rubber SMA	In stock	Warranty:		€19.00 €23.37 Login to check your price	Login to check your price	pcs.

ANT-LTE-ASM-02

Antenna, Cellular band on UMTS/LTE, Omni directional, 2 dBi, rubber SMA

Availability:

In stock

Net price:

€19.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
ANT-LTE-ASM-04 BK LTE Stick antenna that covers 704-960/1710-2620 MHz providing	Out of stock	Warranty:		€24.00 €29.52 Login to check your price	Login to check your price	pcs.

ANT-LTE-ASM-04 BK

LTE Stick antenna that covers 704-960/1710-2620 MHz providing

Availability: Out of stock

Net price:

€24.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
ANT-LTE-OSM-03-3m BK Multi-band antenna that covers 700-2700 MHz. Specially designed	Out of stock	Warranty:		€69.00 €84.87 Login to check your price	Login to check your price	pcs.

ANT-LTE-OSM-03-3m BK

Multi-band antenna that covers 700-2700 MHz. Specially designed

Availability: Out of stock

Net price:

€69.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
ANT-LTE-OSM-06-3m BK MIMO Multi-band antenna that covers 700-2700/2400-2500/5150-5850 MHz frequencies. Screw-fastened mounting and full IP67 waterproofing are available.	Out of stock	Warranty:		€158.00 €194.34 Login to check your price	Login to check your price	pcs.

ANT-LTE-OSM-06-3m BK MIMO

Multi-band antenna that covers 700-2700/2400-2500/5150-5850 MHz frequencies. Screw-fastened mounting and full IP67 waterproofing are available.

Availability: Out of stock

Net price:

€158.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
ANT-LTE-ANF-04 Full-band GSM/GPRS/EDGE/UMTS/HSPA/LTE, 4 dBi, omni-directional IP66 outdoor antenna	In stock	Warranty:		€63.00 €77.49 Login to check your price	Login to check your price	pcs.

ANT-LTE-ANF-04

Full-band GSM/GPRS/EDGE/UMTS/HSPA/LTE, 4 dBi, omni-directional IP66 outdoor antenna

Availability:

In stock

Net price:

€63.00

Technical Specification

Anteny GSM/GPRS

ANT-CQB-ASM-01

Frequency: 850/900/1800/1900 MHz
Anntenna Type: Omni-directional
Typical Antenna Gain: 1 dBi (Max)
Connector: SMA (male)
Impedance: 50 ohms
Polarization: Linear, vertical
HPBW/horizontal: 360°
V.S.W.R.: 3.5 (Max)
Weight: 10 g
Dimensions: Length=83 mm
Radome Color: Black
Radome Material: Plastic
Installation: Straight mount
Operating Temperature: -30 to 75°C
Ambient Relative Humidity: 5 to 95%

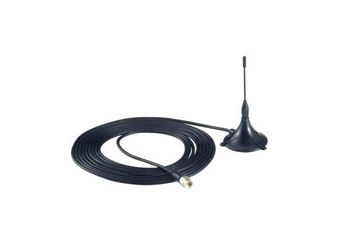

ANT-CQB-AHSM-00-3m

Frequency: 850/900/1800/1900 MHz

Antenna Type: Omni-directional
Typical Antenna Gain: 0 dBi
Connector: SMA (male)

Impedance: 50 ohms

Polarization: Linear, Vertical

HPBW/Horizontal: 360°

V.S.W.R.: < 2

Weight: 58 g (0.13 lb)

Length (including base): 85 mm (3.35 in)

Radome Color: Black

Installation: Magnetic mount

Cable: RG-174

Cable Length: 3 m

Operating Temperature: -30 to 75°C (-22 to 167°F)

Storage Temperature (package included): -30 to 75°C (-22 to 167°F)

Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)

Warranty Period: 1 year

ANT-CQB-AHSM-03-3m

Frequency: 850/900/1800/1900 MHz

Antenna Type: Omni-directional
Typical Antenna Gain: 3 dBi
Connector: SMA (male)

Impedance: 50 ohms

Polarization: Linear, Vertical

HPBW/Horizontal: 360°

V.S.W.R.: < 2

Weight: 60 g (0.13 lb)

Length (including base): 250 mm (9.84 in)

Radome Color: Black

Installation: Magnetic mount

Cable: RG-174

Cable Length: 3 m

Operating Temperature: -30 to 75°C (-22 to 167°F)

Storage Temperature (package included): -30 to 75°C (-22 to 167°F)

Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)

ANT-CQB-AHSM-05-3m

Frequency: 850/900/1800/1900 MHz

Antenna Type: Omni-directional
Typical Antenna Gain: 5 dBi
Connector: SMA (male)

Impedance: 50 ohms

Polarization: Linear, Vertical

HPBW/Horizontal: 360°

V.S.W.R.: < 2

Weight: 58 g (0.13 lb)

Length (including base): 85 mm (3.35 in)

Radome Color: Black

Installation: Magnetic mount

Cable: RG-174

Cable Length: 3 m

Operating Temperature: -30 to 75°C (-22 to 167°F)

Storage Temperature (package included): -30 to 75°C (-22 to 167°F)

Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)

Anteny UMTS/HSPA

ANT-WCDMA-ASM-1.5	Frequency: 850/900/1800/1900/2100 MHz Anntenna Type: Omni-directional Typical Antenna Gain: 1.5 dBi Connector: SMA (male) Impedance: 50 ohms Polarization: Linear, vertical HPBW/horizontal: 360° V.S.W.R.: <2 Weight: 10 g Dimensions: Length=104 mm Radome Color: Black Radome Material: Plastic Installation: Straight mount Operating Temperature: -30 to 75°C Ambient Relative Humidity: 5 to 95%
ANT-WCDMA-AHSM-04-2.5m	Frequency: 850/900/1800/1900/2100 MHz Anntenna Type: Omni-directional Typical Antenna Gain: 4 dBi Connector: SMA (male) Impedance: 50 ohms Polarization: Linear, vertical HPBW/horizontal: 360° V.S.W.R.: <2 Weight: 60 g Dimensions: Length=110 mm Cable Length: 2.5 m Radome Color: Black Radome Material: Plastic Installation: Straight mount Operating Temperature: -30 to 75°C Ambient Relative Humidity: 5 to 95%
ANT-WCDMA-ANF-00	Frequency: 850/900/1800/1900/2100 MHz Anntenna Type: Omni-directional Typical Antenna Gain: 0 dBi Connector: N-type (female) Impedance: 50 ohms Polarization: Linear, vertical HPBW/horizontal: 360° V.S.W.R.: 1.5 Weight: 430 g Dimensions: Length=420 mm IP Rating: IP65 Radome Color: White Radome Material: Fiber Glass Installation: Pole mount Operating Temperature: -40 to 80°C Ambient Relative Humidity: 5 to 95%
CRF-SMA(M)/N(M)-300	Cable Type: CFD200 Connector Type: N-type Male To RP SMA Male Cable Length: 3 m Outer Dimension: 4.14mm Min. Bend Radius: 20.32mm Attenuation: 32.6@900 MHz 55.4@2500 MHz

Anteny LTE

ANT-LTE-ASM-05 bk
ANT-LTE-ANF-04
Zakres częstotliwości	700/800/900/1700/1800/1900/2100/2600 MHz
Typ anteny	Dookólna
Typowy zysk anteny	3 dBi @ 698 do 969 MHz 4 dBi @ 1710 do 2700 MHz
Złącze	Typ N (żeński)
Impedancja	50 omów
Polaryzacja	Pionowy
VSWR	2,5 GBP
Waga	360 g
Wymiary	Długość = 124 mm
Kolor radia	Biały
Materiał radialny	ABS
Instalacja	Wspornik L
temperatura robocza	-30 do 70 ° C (-22 do 158 ° F)
Temperatura przechowywania	-40 do 85 ° C (-40 do 185 ° F)
ANT-LTE-ASM-02
Częstotliwość	800/900/1800/2100/2600 MHz
Typ anteny	dookólna
Typowy zysk	2 dBi
Złącze	SMA (mężczyzna)
Impedancja	50 omów
Polaryzacja	Liniowy, pionowy
HPBW / poziomy	360 °
VSWR	<3
Waga	26 g
Wymiary	Długość = 161 mm
Kolor radia	czarny
Materiał radialny	Plastikowy
Instalacja	Prosty montaż
temperatura robocza	-22 do 65 ° C (-4 do 149 ° F)
Temperatura przechowywania	-30 do 70 ° C (-22 do 158 ° F)
Wilgotność względna otoczenia	5 do 95% (30 ° C, bez kondensacji)
ANT-LTE-ASM-04 BK
ANT-LTE-OSM-03-3m BK
ANT-LTE-OSM-06-3m BK MIMO
