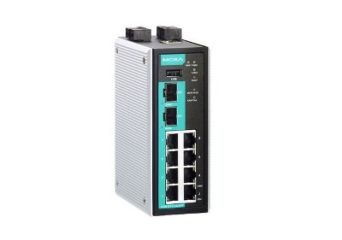

8 FE copper and 2 GbE SFP multiport industrial secure routers
Recommended
- 8+2G all-in-one firewall/NAT/VPN/router/switch
- Secure remote access tunnel with VPN
- Stateful firewall protects critical assets
- Inspect industrial protocols with PacketGuard technology
- Easy network setup with Network Address Translation (NAT)
- RSTP/Turbo Ring redundant protocol enhances network redundancy
- -40 to 75°C operating temperature range (-T model)
- Security features based on IEC 62443/NERC CIP
- Check firewall settings with intelligent SettingCheck feature
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDR-810-2GSFPIndustrial Secure Router Switch with 8 10/100BaseT(X) ports, 2 1000BaseSFP slots, 1 WAN, Firewall/NAT, -10 to 60°CRecommended
In stockWarranty: €1,080.00€1,328.40Login to check your price EDR-810-2GSFPIndustrial Secure Router Switch with 8 10/100BaseT(X) ports, 2 1000BaseSFP slots, 1 WAN, Firewall/NAT, -10 to 60°CRecommended
Availability:In stockNet price:€1,080.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDR-810-2GSFP-TIndustrial Secure Router Switch with 8 10/100BaseT(X) ports, 2 1000BaseSFP slots, 1 WAN, Firewall/NAT, -40 to 75°COut of stock Warranty: €1,202.00€1,478.46Login to check your price EDR-810-2GSFP-TIndustrial Secure Router Switch with 8 10/100BaseT(X) ports, 2 1000BaseSFP slots, 1 WAN, Firewall/NAT, -40 to 75°CAvailability: Out of stockNet price:€1,202.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDR-810-VPN-2GSFPIndustrial Secure Router Switch with 8 10/100BaseT(X) ports, 2 1000BaseSFP slots, 1 WAN, Firewall/NAT, -10 to 60°CIn stockWarranty: €1,202.00€1,478.46Login to check your price EDR-810-VPN-2GSFPIndustrial Secure Router Switch with 8 10/100BaseT(X) ports, 2 1000BaseSFP slots, 1 WAN, Firewall/NAT, -10 to 60°CAvailability:In stockNet price:€1,202.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDR-810-VPN-2GSFP-TIndustrial Secure Router Switch with 8 10/100BaseT(X) ports, 2 1000BaseSFP slots, 1 WAN, Firewall/NAT, -40 to 75°COut of stock Warranty: €1,325.00€1,629.75Login to check your price EDR-810-VPN-2GSFP-TIndustrial Secure Router Switch with 8 10/100BaseT(X) ports, 2 1000BaseSFP slots, 1 WAN, Firewall/NAT, -40 to 75°CAvailability: Out of stockNet price:€1,325.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 30W 24V 1.5AIn stockWarranty: €13.40€16.48Login to check your price DIN rail power supply 30W 24V 1.5AAvailability:In stockNet price:€13.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 100Base multi-mode, LC connector, 4Km, -40 to 85°CIn stockWarranty: €122.00€150.06Login to check your price Small Form Factor pluggable transceiver with 100Base multi-mode, LC connector, 4Km, -40 to 85°CAvailability:In stockNet price:€122.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 100Base single-mode, LC connector, 40Km, -40 to 85°CIn stockWarranty: €274.00€337.02Login to check your price Small Form Factor pluggable transceiver with 100Base single-mode, LC connector, 40Km, -40 to 85°CAvailability:In stockNet price:€274.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km, 0 to 60°CIn stockWarranty: €257.00€316.11Login to check your price Small Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km, 0 to 60°CAvailability:In stockNet price:€257.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 1000BaseSX, LC connector, 0.5 km, 0 to 60°CIn stockWarranty: €145.00€178.35Login to check your price Small Form Factor pluggable transceiver with 1000BaseSX, LC connector, 0.5 km, 0 to 60°CAvailability:In stockNet price:€145.00
Useful products
Description
The EDR-810 is a highly integrated industrial multiport secure router with firewall/NAT/VPN and managed Layer 2 switch functions. It is designed for Ethernet-based security applications on critical remote control or monitoring networks, and it provides an electronic security perimeter for the protection of critical cyber assets including pump-and-treat systems in water stations, DCS systems in oil and gas applications, and PLC/SCADA systems in factory automation. The EDR-810 Series includes the following cybersecurity features:
- Firewall/NAT: Firewall policies control network traffic between different trust zones, and Network Address Translation (NAT) shields the internal LAN from unauthorized activity by outside hosts.
- VPN: Virtual Private Networking (VPN) is designed to provide users with secure communication tunnels when accessing a private network from the public Internet. VPNs use IPsec (IP Security) server or client mode for encryption and authentication of all IP packets at the network layer to ensure confidentiality and sender authentication.
The EDR-810’s “WAN Routing Quick Setting” provides an easy way for users to set up WAN and LAN ports to create a routing function in four steps. In addition, the EDR-810’s “Quick Automation Profile” gives engineers a simple way to configure the firewall filtering function with general automation protocols, including EtherNet/IP, Modbus TCP, EtherCAT, FOUNDATION Fieldbus, and PROFINET. Users can easily create a secure Ethernet network from a user-friendly web UI with a single click, and the EDR-810 is capable of performing deep Modbus TCP packet inspection. Wide-temperature range models that operate reliably in hazardous, -40 to 75°C environments are also available.
Technical Specification
- Input/Output Interface
Alarm Contact Channels | Resistive load: 1 A @ 24 VDC |
Buttons | Reset button |
Digital Input Channels | +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA |
- Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) | 8 |
100/1000BaseSFP Slots | 2 |
Standards | IEEE 802.1Q for VLAN Tagging IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) Static Port Trunk IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/ZX |
- Ethernet Software Features
Broadcast Forwarding | IP directed broadcast, broadcast forwarding |
Management | Back Pressure Flow Control, DDNS, DHCP Server/Client, Web Console (HTTP/HTTPS), LLDP, QoS/CoS/ToS, SNMPv1/v2c/v3, Telnet, TFTP |
Multicast Routing | DVMRP, PIM-SM, PIM-SSM |
Redundancy Protocols | RSTP, STP, Turbo Ring v2 |
Routing | Throughput: 10,000 packets per second (max. 100 Mbps) |
Routing Redundancy | VRRP |
Security | All models: HTTPS/SSL, SSH, L2TP (server), RADIUS EDR-810-VPN-2GSFP Series: HTTPS/SSL, SSH, IPsec, OpenVPN (client and server), UDP and TCP Tunnel mode (routing) and TAP mode (bridge), L2TP (server), RADIUS, L2TP (server), RADIUS |
Time Management | NTP Server/Client, SNTP |
Unicast Routing | OSPF, RIPV1/V2, Static Route |
Filter | IGMP v1/v2/v3 |
- Switch Properties
VLAN ID Range | VID 1 to 4094 |
IGMP Groups | 256 |
Max. No. of VLANs | 16 |
- LED Interface
LED Indicators | STATE, PWR1, PWR2, FAULT, 10/100/1000M |
- DoS and DDoS Protection
Technology | ARP-Flood, FIN Scan, ICMP-Death, NEWWithout-SYN Scan, NMAP-ID Scan, NMAP-Xmas Scan, Null Scan, SYN/FIN Scan, SYN/RST Scan, SYN-Flood, Xmas Scan |
- Firewall
Deep Packet Inspection | Modbus TCP Modbus UDP |
Filter | DDoS, Ethernet protocols, ICMP, IP address, MAC address, Ports |
Quick Automation Profiles | DNP, EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, FTP, HTTP, IEC 60870-104, IPsec, L2TP, LonWorks, Modbus TCP, PPTP, PROFINET, RADIUS, SSH, Telnet |
Stateful Inspection | Router firewall Transparent (bridge) firewall |
Throughput | Max. 10,000 packets per second (max. 100 Mbps) |
- IPsec VPN
Authentication | EDR-810-VPN-2GSFP Series: MD5 and SHA (SHA-256), RSA (key size: 1024-bit, 2048-bit), X.509 v3 certificate |
Concurrent VPN Tunnels | EDR-810-VPN-2GSFP Series: Max. 10 IPsec VPN tunnels |
Encryption | EDR-810-VPN-2GSFP Series: DES, 3DES, AES-128, AES-192, AES-256 |
Protocols | EDR-810-VPN-2GSFP Series: IPsec, L2TP (server), PPTP (client) |
Throughput | EDR-810-VPN-2GSFP Series: Max. 17 Mbps (Conditions: AES-256, SHA-256) |
- NAT
Features | 1-to-1, N-to-1, Port forwarding |
- OpenVPN
Authentication | EDR-810-VPN-2GSFP Series: User password by MD5 and SHA1 |
Concurrent VPN Tunnels | EDR-810-VPN-2GSFP Series: Client Mode: max. 2 external servers Server Mode: max. 5 external clients |
Encryption | EDR-810-VPN-2GSFP Series: AES-128/192/256 CBC, Blowfish CBC, DES CBC, DES-EDE3 CBC |
Protocols | EDR-810-VPN-2GSFP Series: OpenVPN (client and server), UDP, and TCP Tunnel mode (routing) and TAP mode (bridge) |
Throughput | EDR-810-VPN-2GSFP Series: Max. 5 Mbps |
- Real-Time Firewall / VPN Event Log
Event Type | All models: Firewall event EDR-810-VPN-2GSFP Series: VPN event |
Media | Local storage, SNMP Trap, Syslog server |
- Serial Interface
Console Port | RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1) |
- Power Parameters
Connection | Removable terminal block |
Input Voltage | 12 to 48 VDC |
Input Current | 0.706 A @ 12 VDC, 0.353 A @ 24 VDC, 0.187 A @ 48 VDC |
Reverse Polarity Protection | Supported |
- Physical Characteristics
Housing | Metal |
Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
Weight | 830 g (2.10 lb) |
Installation | DIN-rail mounting, Wall mounting (with optional kit) |
- Environmental Limits
Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
Safety | UL 508 |
EMC | EN 55032/24 |
Hazardous Locations | UL/cUL Class I Division 2 Groups A/B/C/D |
EMI | CISPR 32, FCC Part 15B Class A |
EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
Railway | EN 50121-4 |
Traffic Control | NEMA TS2 |
Shock | IEC 60068-2-27 |
Freefall | IEC 60068-2-32 |
Vibration | IEC 60068-2-6 |
- MTBF
Time | 981,954 hrs |
Standards | Telcordia (Bellcore), GB |
