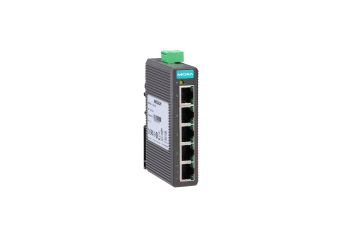

EDS-205

5-port entry-level unmanaged Ethernet switches

Manufacturer: MOXA

10/100BaseT(X) (RJ45 connector)
IEEE802.3/802.3u/802.3x support
Broadcast storm protection
DIN-rail mounting ability
-10 to 60°C operating temperature range

Price from €71.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Models
Accessories
Description
Technical Specification
Download
Recommended Products

5-portowy, tani switch przemysłowy na szynę DIN w plastikowej obudowie, Moxa

EDS-205

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EDS-205 Entry-level Unmanaged Ethernet Switch with 5 10/100BaseT(X) ports, -10 to 60°C Recommended	In stock	Warranty:		€71.00 €87.33 Login to check your price	Login to check your price	pcs.

EDS-205

Entry-level Unmanaged Ethernet Switch with 5 10/100BaseT(X) ports, -10 to 60°C

Recommended

Availability:

In stock

Net price:

€71.00

Accessories

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
HDR-15-24 DIN rail power supply 15W 24V 0.63A	In stock	Warranty:		€11.00 €13.53 Login to check your price	Login to check your price	pcs. 160 pieces in box

HDR-15-24

DIN rail power supply 15W 24V 0.63A

Availability:

In stock

Net price:

€11.00

Description

The EDS-205 Series supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-205 Series is rated to operate at temperatures ranging from -10 to 60°C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature, and the IP30 housing with LED indicators make the plug-and-play EDS-205 switches reliable and easy to use.

Technical Specification

Ethernet Interface

Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control
10/100BaseT(X) Ports (RJ45 connector)	Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speedSwitch Properties

Processing Type	Store and Forward
MAC Table Size	1 K
Packet Buffer Size	512 kbits

Power Parameters

Input Voltage	24 VDC
Input Current	0.11 A @ 24 VDC
Operating Voltage	12 to 48 VDC
Connection	1 removable 3-contact terminal block(s)
Overload Current Protection	1.1 A @ 24 VDC
Reverse Polarity Protection	Supported

Physical Characteristics

Housing	Plastic
IP Rating	IP30
Dimensions	24.9 x 100 x 86.5 mm (0.98 x 3.94 x 3.41 in)
Weight	135 g (0.30 lb)
Installation	DIN-rail mounting

Environmental Limits

Operating Temperature	-10 to 60°C (14 to 140°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

Safety	EN 60950-1, UL 508
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
Shock	IEC 60068-2-27
Vibration	IEC 60068-2-6
Freefall	IEC 60068-2-31
