ANT-WDB-ONF-0709
7 dBi at 2.4 GHz and 9 dBi at 5 GHz, N-type (female), dual-band omnidirectional antenna
Manufacturer: MOXA
Manufacturer: MOXA
- High-gain antenna to enhance performance
- Waterproof N-type connector
- Lightweight
- Compact form factor
- Pole-mounting support
- Housing provides IP65 protection
- -40 to 80°C operating temperature range
Price from €138.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
ANT-WDB-ONF-0709
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddANT-WDB-ONF-070907 dBi at 2.4 GHz and 09 dBi at 5 GHz, N-type (female), dual-band omnidirectional antennaIn stockWarranty: €138.00€169.74Login to check your price ANT-WDB-ONF-070907 dBi at 2.4 GHz and 09 dBi at 5 GHz, N-type (female), dual-band omnidirectional antennaAvailability:In stockNet price:€138.00
Description

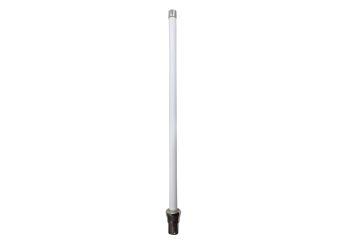

The ANT-WDB-ONF-0709 is an omnidirectional dual-band high-gain antenna with a waterproof N-type female connector. The IP65-rated housing, pole-mounting support, and wide operating temperature range of -40 to 85°C make it suitable for outdoor use.
Technical Specification
- Cechy anteny
| Zakres częstotliwości | 2.4 do 2.4835 GHz lub 5.15 od 5.85 GHz |
| Typ anteny | Dookólna |
| Zysk energetyczny | 7/9 dBi |
| Złącze | N-type (żeńskie) |
| Impedancja | 50 ohms |
| Polaryzacja | Pionowa |
| HPBW/Horyzontalny | 360° |
| V.S.W.R. | 1:1.5 max. |
| Moc wyjściowa (Power Handling) | 10 W (max.) |
- Parametry fizyczne
| Klasa ochrony | IP65 |
| Wymiary | Średnica: 22 mm (0.87 in) Długość: 610 mm (24 in) |
| Waga | 461 g (1.02 lb) |
| Kolor osłony | Biały |
| Materiał osłony | Włókno szklane |
| Montaż | Słup, rurka itp |
- Warunki środowiskowe
| Temperatura pracy | -40 do 85°C (-40 do 185°F) |
| Temperatura przechowywania | -40 do 85°C (-40 do 185°F) |
- Gwarancja
| Okres | 1 rok |
| Szczegóły | www.moxa.com/warranty |
