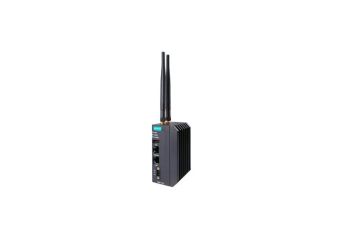

AWK-1161C

Entry-level 1-port industrial IEEE 802.11ax wireless clients

Manufacturer: MOXA
Manufacturer: MOXA
  • High-speed IEEE 802.11ax Wi-Fi
  • Selectable dual-band Wi-Fi with data rates up to 1,201 Mbps
  • Latest WPA3 encryption for enhanced wireless network security
  • Universal (UN) models with configurable country or region code for more flexible deployment
  • Easy network setup with Network Address Translation (NAT)
  • Millisecond-level Client-based Turbo Roaming
  • Built-in 2.4 GHz and 5 GHz band pass filter for more reliable wireless connections
  • -40 to 75°C wide operating temperature range (-T models)
  • Integrated antenna isolation
Price from €548.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    AWK-1161C-UN
    Industrial 802.11ax wireless client with 1 10/100/1000BaseT(X) port, IP30, UN band, -25 to 60°C operating temperature
    In stock
    Warranty:
    €548.00
    €674.04
    Login to check your price
    AWK-1161C-UN
    Industrial 802.11ax wireless client with 1 10/100/1000BaseT(X) port, IP30, UN band, -25 to 60°C operating temperature
    Availability:
    In stock
    Net price:
    €548.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    AWK-1161C-UN-T
    Industrial 802.11ax wireless client with 1 10/100/1000BaseT(X) port, IP30, UN band, -40 to 75°C operating temperature
    Out of stock Warranty:
    €629.00
    €773.67
    Login to check your price
    AWK-1161C-UN-T
    Industrial 802.11ax wireless client with 1 10/100/1000BaseT(X) port, IP30, UN band, -40 to 75°C operating temperature
    Availability: Out of stock
    Net price:
    €629.00

Description

Introduction

The AWK-1161C Series industrial wireless client is designed to meet the growing need for efficient data transmissions in high-density deployments scenarios through IEEE 802.11ax (Wi-Fi 6) technology. The AWK-1161C is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The compact form factor with DIN-rail or optional wall mounting easily fits into industrial machines or control cabinets, offering reliable wireless connectivity. The AWK-1161C can operate on the 2.4 or 5 GHz band and is backwards compatible with existing 802.11a/b/g/n/ac deployments to future-proof your wireless investments.



Advanced 802.11ax Industrial Wireless Solution

  • 802.11ax Wi-Fi 6 compliant client backwards compatible with Wi-Fi 4/ Wi-Fi 5 for flexible deployment

  • DFS channel support allows a wider range of 5 GHz channel selection to avoid interference from existing wireless infrastructure

  • Wi-Fi 6 OFDMA (Orthogonal Frequency-Division Multiple Access) technology enables concurrent communication with multiple clients for improved network efficiency

  • Wi-Fi 6 TWT (Target Wake Time) technology facilitates better scheduling and longer device battery life



Advanced Wireless Technology

  • Seamless roaming with client-based Turbo Roaming  for < 150 ms roaming recovery time between APs



Industrial Ruggedness

  • Integrated antenna isolation designed to provide protection against external electrical interference

  • -40 to 75°C wide operating temperature (-T) models for smooth wireless communication in harsh environments

Technical Specification

WLAN Interface

WLAN Standards 2.4 GHz: 802.11ax with 1024 QAM support, 20/40 MHz
5 GHz: 802.11ax with 1024 QAM support, 20/40/80 MHz
Frequency Range for USA (20 MHz operational channels)

AWK-1161C-US models only:
2.412 to 2.462 GHz (11 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
5.745 to 5.825 GHz (5 channels)

Frequency Range for EU (20 MHz operational channels) AWK-1161C-UN models only:
2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
5.745 to 5.825 GHz (5 channels)
Available channels may vary depending on the selected country or region.
Wireless Security WEP Encryption (64-bit and 128-bit)
WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2/WPA3-Personal
Transmission Speed 2.4 GHz:
Up to 573.5 Mbps
5 GHz:
Up to 1,201 Mbps
Transmitter Power for 802.11a (Dual Chain) 18±1.5 dBm @ 6 Mbps
18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (5 GHz, Dual Chain) 18±1.5 dBm @ MCS0 20 MHz
18±1.5 dBm @ MCS7 20 MHz
18±1.5 dBm @ MCS0 40 MHz
18±1.5 dBm @ MCS7 40 MHz
Transmitter Power for 802.11ac (Dual Chain) 18±1.5 dBm @ MCS0 20 MHz
18±1.5 dBm @ MCS8 20 MHz
18±1.5 dBm @ MCS0 40 MHz
18±1.5 dBm @ MCS9 40 MHz
18±1.5 dBm @ MCS0 80 MHz
18±1.5 dBm @ MCS9 80 MHz
Transmitter Power for 802.11ax (Dual Chain) 18±1.5 dBm @ MCS0 20 MHz
18±1.5 dBm @ MCS11 20 MHz
17±1.5 dBm @ MCS0 40 MHz
17±1.5 dBm @ MCS11 40 MHz
17±1.5 dBm @ MCS0 80 MHz
17±1.5 dBm @ MCS11 80 MHz
Transmitter Power for 802.11b (Dual Chain) 18±1.5 dBm @ 1 Mbps
18±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g (Dual Chain) 18±1.5 dBm @ 6 Mbps
18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz, Dual Chain) 18±1.5 dBm @ MCS0 20 MHz
18±1.5 dBm @ MCS7 20 MHz
18±1.5 dBm @ MCS0 40 MHz
18±1.5 dBm @ MCS7 40 MHz
Transmitter Power for 802.11ax (2.4 GHz, Dual Chain) 18±1.5 dBm @ MCS0 20 MHz
18±1.5 dBm @ MCS11 20 MHz
18±1.5 dBm @ MCS0 40 MHz
18±1.5 dBm @ MCS11 40 MHz
Receiver Sensitivity for 802.11a (measured at 5.680 GHz) Typ. -88 dBm @ 6 Mbps
Typ. -72 dBm @ 54 Mbps
Standardy WLAN 2.4 GHz: 802.11ax z obsługą 1024 QAM, 20/40 MHz
5 GHz: 802.11ax z obsługą 1024 QAM, 20/40/80 MHz
Frequency Range for USA (20 MHz operational channels) AWK-1161C-US models only:
2.412 to 2.462 GHz (11 channels)
5.180 to 5.240 GHz (4 channels)
Frequency Range for EU (20 MHz operational channels) AWK-1161C-UN models only:
2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
5.745 to 5.825 GHz (5 channels)
Available channels may vary depending on the selected country or region.
Wireless Security WEP Encryption (64-bit and 128-bit)
WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2/WPA3-Personal
Transmission Speed 2.4 GHz:
Up to 573.5 Mbps
5 GHz:
Up to 1,201 Mbps
Transmitter Power for 802.11a (Dual Chain) 18±1.5 dBm @ 6 Mbps
18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (5 GHz, Dual Chain) 18±1.5 dBm @ MCS0 20 MHz
18±1.5 dBm @ MCS7 20 MHz
18±1.5 dBm @ MCS0 40 MHz
18±1.5 dBm @ MCS7 40 MHz
Transmitter Power for 802.11ac (Dual Chain) 18±1.5 dBm @ MCS0 20 MHz
18±1.5 dBm @ MCS8 20 MHz
18±1.5 dBm @ MCS0 40 MHz
18±1.5 dBm @ MCS9 40 MHz
18±1.5 dBm @ MCS0 80 MHz
18±1.5 dBm @ MCS9 80 MHz
Transmitter Power for 802.11ax (Dual Chain) 18±1.5 dBm @ MCS0 20 MHz
18±1.5 dBm @ MCS11 20 MHz
17±1.5 dBm @ MCS0 40 MHz
17±1.5 dBm @ MCS11 40 MHz
17±1.5 dBm @ MCS0 80 MHz
17±1.5 dBm @ MCS11 80 MHz
Transmitter Power for 802.11b (Dual Chain) 18±1.5 dBm @ 1 Mbps
18±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g (Dual Chain) 18±1.5 dBm @ 6 Mbps
18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz, Dual Chain) 18±1.5 dBm @ MCS0 20 MHz
18±1.5 dBm @ MCS7 20 MHz
18±1.5 dBm @ MCS0 40 MHz
18±1.5 dBm @ MCS7 40 MHz
Transmitter Power for 802.11ax (2.4 GHz, Dual Chain) 18±1.5 dBm @ MCS0 20 MHz
18±1.5 dBm @ MCS11 20 MHz
18±1.5 dBm @ MCS0 40 MHz
18±1.5 dBm @ MCS11 40 MHz
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz) Typ. -88 dBm @ MCS0 20 MHz
Typ. -88 dBm @ MCS7 20 MHz
Typ. -84 dBm @ MCS0 40 MHz
Typ. -66 dBm @ MCS7 40 MHz
Receiver Sensitivity for 802.11ac (5 GHz) Typ. -88 dBm @ MCS0 20 MHz
Typ. -85 dBm @ MCS8 20 MHz
Typ. -88 dBm @ MCS0 40 MHz
Typ. -68 dBm @ MCS9 40 MHz
Typ. -81 dBm @ MCS0 80 MHz
Typ. -55 dBm @ MCS9 80 MHz
Receiver Sensitivity for 802.11ax (5 GHz) Typ. -88 dBm @ MCS0 20 MHz
Typ. -89 dBm @ MCS11 20 MHz
Typ. -88 dBm @ MCS0 40 MHz
Typ. -66 dBm @ MCS11 40 MHz
Typ. -81 dBm @ MCS0 80 MHz
Typ. -52 dBm @ MCS11 80 MHz
Receiver Sensitivity for 802.11b (measured at 2.437 GHz) Typ. -96 dBm @ 1 Mbps
Typ. -88 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g (measured at 2.437 GHz) Typ. -90 dBm @ 6 Mbps
Typ. -74 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz) Typ. -90 dBm @ MCS0 20 MHz
Typ. -70 dBm @ MCS7 20 MHz
Typ. -87 dBm @ MCS0 40 MHz
Typ. -69 dBm @ MCS7 40 MHz
Receiver Sensitivity for 802.11ac (2.4 GHz) Typ. -90 dBm @ MCS0 20 MHz
Typ. -68 dBm @ MCS7 20 MHz
Typ. -87 dBm @ MCS0 40 MHz
Typ. -63 dBm @ MCS7 40 MHz
Receiver Sensitivity for 802.11ax (2.4 GHz) Typ. -90 dBm @ MCS0 20 MHz
Typ. -89 dBm @ MCS11 20 MHz
Typ. -87 dBm @ MCS0 40 MHz
Typ. -56 dBm @ MCS11 40 MHz
WLAN Operating Mode Client
Client-router
Slave
Sniffer
Antennas External, 2/2 dBi
Omnidirectional
Antenna Connectors 2 x RP-SMA female



Ethernet Interface

Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3az for Energy-Efficient Ethernet
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for Authentication
10/100/1000BaseT(X) Ports (RJ45 connector) 1



Ethernet Software Features

Management DHCP Server
DHCP Client
DNS
HTTP
IPv4
LLDP
SMTP
SNMPv1/v2c/v3
Syslog
TCP/IP
Telnet
UDP
VLAN
MXconfig
Routing Port Forwarding
Static Route
NAT
Security HTTPS/SSL
RADIUS
SSH
Certificate Management
Time Management SNTP Client

Firewall

Filter ICMP
MAC Address
IP Protocol
Port-based
Wi-Fi ACL



Serial Interface

Console Port RS-232
8-pin RJ45

USB Interface

Storage Port USB Type A

LED Interface

LED Indicators PWR, WLAN, SYSTEM

I/O Interface

Buttons Reset Button

Physical Characteristics

Housing Metal
IP Protection Level IP30
Dimensions AWK-1161C models: 60 x 100 x 34.2 mm (2.36 x 3.94 x 1.35 in)
AWK-1161C-T models: 60 x 100 x 47.2 mm (2.36 x 3.94 x 1.86 in)
Weight AWK-1161C models: 330 g (0.73 lb)
AWK-1161C-T models: 387.5 g (0.85 lb)
Installation DIN-Rail Mounting
Wall Mounting (optional kit)

Power Supply Parameters

Input Current 9 to 30 VDC, 1.57 to 0.47 A
Input Voltage 9 to 30 VDC
Power Connector 1 removable terminal block with 3 contacts
Power Consumption 14 W (max.)

Environmental Limits

Operating Temperature Standard models: -25 to 60°C (-13 to 140°F)
Wide temperature models: -40 to 75°C (-40 to 167°F)
Storage Temperature (including packaging) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)

Standards and Certifications

EMC EN 61000-6-2/6-4
EN 55032/35
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V/m
IEC 61000-4-8 PFMF: 30 A/m
Road Vehicles E-mark E1
Safety IEC 62368-1
UL 62368-1
Vibration IEC 60068-2-6
Radio EN 300 328, EN 301 489-1/17, EN 301 893, ANATEL, FCC, MIC, NCC, RCM, SRRC, WPC, KC, NBTC, IC

MTBF

Time 4,002,106 hours
Standards Telcordia SR332

Warranty

Warranty Period 5 years
Details See www.moxa.com/warranty
