- PCI Express 1.0 compliant
- 921.6 kbps maximum baudrate for fast data transmission
- 128-byte FIFO and on-chip H/W, S/W flow control
- Variety of connection cables and boxes available for RS-232/422/485
- Low-profile form factor fits small-sized PCs
- Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
- Easy maintenance with built-in LEDs and management software
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCP-118EL-A8 Port PCIe Board, w/o Cable,RS-232/422/485, Low ProfileIn stockWarranty: €430.00€528.90Login to check your price CP-118EL-A8 Port PCIe Board, w/o Cable,RS-232/422/485, Low ProfileAvailability:In stockNet price:€430.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCable/CBL-M68M25x8-100 (SCSI VHDCI 68 male to 8-port DB25 male connection)In stockWarranty: €65.00€79.95Login to check your price Cable/CBL-M68M25x8-100 (SCSI VHDCI 68 male to 8-port DB25 male connection)Availability:In stockNet price:€65.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCable/CBL-M68M9x8-100(SCSI VHDCI 68 male to 8-port DB9 male connection)In stockWarranty: €63.00€77.49Login to check your price Cable/CBL-M68M9x8-100(SCSI VHDCI 68 male to 8-port DB9 male connection)Availability:In stockNet price:€63.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add8 Port Connection Box, DB25F, 150CM CableOut of stock Warranty: €108.00€132.84Login to check your price 8 Port Connection Box, DB25F, 150CM CableAvailability: Out of stockNet price:€108.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add8 Port Connection Box, DB25M, 150CM CableOut of stock Warranty: €108.00€132.84Login to check your price 8 Port Connection Box, DB25M, 150CM CableAvailability: Out of stockNet price:€108.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add8 Port Connection Box, DB9M, Matel CaseIn delivery Warranty: €132.00€162.36Login to check your price 8 Port Connection Box, DB9M, Matel CaseAvailability: In deliveryNet price:€132.00
Description

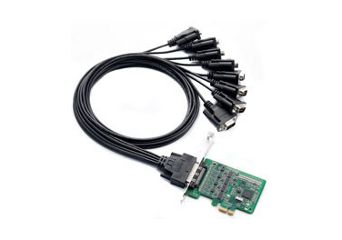

The CP-118EL-A is a smart, 8-port PCI Express board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the board’s eight serial ports can be configured independently for RS-232, RS-422, or RS-485 (either 2-wire or 4-wire), and the ports supports a fast 921.6 kbps baudrate. The CP-118EL-A provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and its PCI Express x1 classification allows it to be installed in any PCI Express slot.
Smaller Form Factor
The CP-118EL-A is a low-profile board that is compatible with any PCI Express slot. The board requires only a 3.3 VDC power supply, which means that the board fits any host computer, ranging from shoebox to standard-sized PCs.
Drivers Provided for Windows, Linux, and UNIX
Moxa continues to support a wide variety of operating systems, and the CP-118EL-A board is no exception. Reliable Windows and Linux/UNIX drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.
Technical Specification
- Serial Interface
| Comm. Controller | 16C550C compatible |
| Bus | PCI Express 1.0 |
| Connector | VHDCI 68 |
| FIFO | 128 bytes |
| Max. No. of Boards per PC | 8 |
| No. of Ports | 8 |
| Serial Standards | RS-232, RS-422, RS-485 |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, XON/XOFF |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
- Serial Software Features
| Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x |
| UNIX Drivers | Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6 |
- Power Parameters
| Input Current | 1,285 mA @ 3.3 VDC |
- Physical Characteristics
| Dimensions | 68.9 x 88 mm (2.71 x 3.46 in) |
- LED Interface
| LED Indicators | Built-in Tx, Rx LEDs for each port |
- Environmental Limits
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature (package included) | -20 to 85°C (-4 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF |
- Declaration
| Green Product | RoHS, CRoHS, WEEE |
- MTBF
| Time | 1,359,482 hrs |
| Standards | Telcordia (Bellcore) Standard TR/SR |
