Promocja cenowa na model HDR-15-5
Connection boxes for PCI cards
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddOPT 8A+8 Port Connection Box, DB25F, 150CM CableOut of stock Warranty: €105.00€129.15Login to check your price OPT 8A+8 Port Connection Box, DB25F, 150CM CableAvailability: Out of stockNet price:€105.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddOPT 8B+8 Port Connection Box, DB25M, 150CM CableOut of stock Warranty: €105.00€129.15Login to check your price OPT 8B+8 Port Connection Box, DB25M, 150CM CableAvailability: Out of stockNet price:€105.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddOPT8-M9+8 Port Connection Box, DB9M, Matel CaseIn stockWarranty: €128.00€157.44Login to check your price OPT8-M9+8 Port Connection Box, DB9M, Matel CaseAvailability:In stockNet price:€128.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddOPT 8S+8 Port Connection Box, DB25F, w/ SurgeOut of stock Warranty: €214.00€263.22Login to check your price OPT 8S+8 Port Connection Box, DB25F, w/ SurgeAvailability: Out of stockNet price:€214.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddOPT8-RJ45+8 Port Connection Box, RJ45, Matel CaseIn delivery Warranty: €154.00€189.42Login to check your price OPT8-RJ45+8 Port Connection Box, RJ45, Matel CaseAvailability: In deliveryNet price:€154.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddOPT 8A8 Port Connection Box, DB25F, 150CM CableOut of stock Warranty: €100.00€123.00Login to check your price OPT 8A8 Port Connection Box, DB25F, 150CM CableAvailability: Out of stockNet price:€100.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddOPT 8B8 Port Connection Box, DB25M, 150CM CableOut of stock Warranty: €100.00€123.00Login to check your price OPT 8B8 Port Connection Box, DB25M, 150CM CableAvailability: Out of stockNet price:€100.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddOPT 8S8 Port Connection Box, DB25F, w/ SurgeOut of stock Warranty: €214.00€263.22Login to check your price OPT 8S8 Port Connection Box, DB25F, w/ SurgeAvailability: Out of stockNet price:€214.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddOPT8-M98 Port Connection Box, DB9M, Matel CaseOut of stock Warranty: €109.00€134.07Login to check your price OPT8-M98 Port Connection Box, DB9M, Matel CaseAvailability: Out of stockNet price:€109.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddOPT8-RJ458 Port Connection Box, RJ45, Matel CaseOut of stock Warranty: €97.00€119.31Login to check your price OPT8-RJ458 Port Connection Box, RJ45, Matel CaseAvailability: Out of stockNet price:€97.00
Description
Introduction

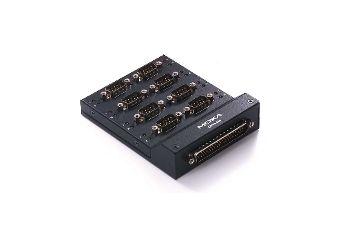

Moxa’s 8-port RS-232 connection boxes provide 8 common connection ports, including DB9, 8-pin RJ45, and DB25, for connecting your serial devices to a serial board.
Pin Assignments
Technical Specification
- Connector
| Board-side Connector | OPT8-M9/RJ45, OPT 8A/S/B: DB62 (male) x 1OPT8-M9+/RJ45+, OPT 8A+/S+/B+: VHDCI 68 x 1 |
| Device-side Connector | OPT8-M9/M9+: DB9 (male) x 8OPT8-RJ45/RJ45+: 8-pin RJ45 x 8OPT 8A/A+: DB25 (female) x 8OPT 8S/S+: DB25 (female) x 8OPT 8B/B+: DB25 (male) x 8 |
| Connection Cable | OPT8-M9: DB62 (male) to DB62 (female) 1.5 m connection cable for connecting to the serial board OPT8-M9+: VHDCI 68 to DB62 (female) 1.5 m connection cable for connecting to the serial board OPT 8A: DB62 (male) to DB62 (male) 1.5 m connection cable for connecting to the serial board OPT 8A+: VHDCI 68 to DB62 (male) 1.5 m connection cable for connecting to the serial board OPT 8S: DB62 (male) to DB62 (male) 1.5 m connection cable for connecting to the serial board OPT 8S+: VHDCI 68 to DB62 (male) 1.5 m connection cable for connecting to the serial board OPT 8B: DB62 (male) to DB62 (male) 1.5 m connection cable for connecting to the serial board OPT 8B+: VHDCI 68 to DB62 (male) 1.5 m connection cable for connecting to the serial board |
- LED Interface
| LED Indicators | OPT8-M9, OPT 8A/S/B: TxD, RxD indicators for each device-side portOPT8-M9+, OPT 8A+/S+/B+: TxD, RxD indicators for each device-side port |
- Serial Interface
| Baudrate | OPT 8A/S/B/A+/S+/B+: 50 bps to 921.6 kbps |
- Physical Characteristics
| Dimensions | OPT8-M9/M9+: 90 x 111 x 27.5 mm (3.54 x 4.37 x 1.08 in)OPT8-RJ45/RJ45+: 152.8 x 32.8 x 32 mm (6.02 x 1.29 x 1.26 in)OPT 8A/B/S/A+/B+/S+: 247 x 108 x 35 mm (9.72 x 4.25 x 1.38 in) |
| Surge Protection | OPT 8S: 25 kV ESD, 2 kV EFT surge protection |
- Warranty
| Warranty Period | 1 year |
| Details | See www.moxa.com/warranty |
