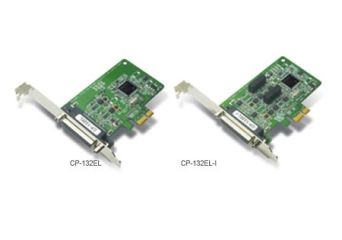

CP-132EL/EL-I
2-port RS-422/485 PCI Express boards with optional 2 kV isolation
- PCI Express 1.0 compliant
- 921.6 kbps maximum baudrate for fast data transmission
- 128-byte FIFO and on-chip S/W flow control
- Low-profile form factor fits small-sized PCs
- Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
- Easy maintenance with built-in LEDs and management software
Price from €128.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCP-132EL/DB9M2 Port PCIe Board, w/ DB9M Cable, RS-422/485, Low ProfileIn stockWarranty: €128.00€157.44Login to check your price CP-132EL/DB9M2 Port PCIe Board, w/ DB9M Cable, RS-422/485, Low ProfileAvailability:In stockNet price:€128.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCP-132EL-I/DB9M2 Port PCIe Board, w/ DB9M Cable, RS-422/485, w/ Isolation, Low ProfileIn delivery Warranty: €228.00€280.44Login to check your price CP-132EL-I/DB9M2 Port PCIe Board, w/ DB9M Cable, RS-422/485, w/ Isolation, Low ProfileAvailability: In deliveryNet price:€228.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCBL-M25M9x2-50Cable/CBL-M25M9x2-50Out of stock Warranty: €10.00€12.30Login to check your price CBL-M25M9x2-50Cable/CBL-M25M9x2-50Availability: Out of stockNet price:€10.00
Description
The CP-132EL and CP-132EL-I are 2-port PCI Express boards designed for industrial automation applications that require a long-distance, multipoint, PC-based data acquisition solution.
RS-485 Multidrop for up to 31 Devices Within 1.2 km
The CP-132EL/EL-I boards have two RS-422/485 serial ports, each of which can achieve data rates up to 921.6 kbps. In RS-485 mode, the boards can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. For long-distance RS-485 communication, choose the CP-132EL-I model, which comes with 2 kV electrical isolation protection to prevent equipment damage.
Drivers Provided for Windows, Linux, and UNIX
Moxa continues to support a wide variety of operating systems, and the CP-132EL/EL-I boards are no exception. Reliable Windows and Linux drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.
Technical Specification
- Serial Interface
| Comm. Controller | 16C550C compatible |
| Bus | PCI Express 1.0 |
| Connector | DB25 female |
| FIFO | 128 bytes |
| Max. No. of Boards per PC | 8 |
| No. of Ports | 2 |
| Serial Standards | RS-422, RS-485 |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, XON/XOFF |
| Isolation | CP-132EL-I-DB9M: 2 kV |
- Serial Signals
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
- Serial Software Features
| Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x |
| UNIX Drivers | Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6, QNX 6 |
- Power Parameters
| Input Current | CP-132EL-DB9M: 548 mA @ 3.3 VDC CP-132EL-I-DB9M: 636 mA @ 3.3 VDC |
- Physical Characteristics
| Dimensions | CP-132EL-DB9M: 67.21 x 101.97 mm (2.65 x 4.08 in) CP-132EL-I-DB9M: 67.21 x 103.97 mm (2.65 x 4.16 in) |
- LED Interface
| LED Indicators | Built-in Tx, Rx LEDs for each port |
- Environmental Limits
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature (package included) | -20 to 85°C (-4 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF |
- Declaration
| Green Product | RoHS, CRoHS, WEEE |
- MTBF
| Time | CP-132EL-DB9M: 4,147,133 hrs CP-132EL-I-DB9M: 1,681,099 hrs |
| Standards | Telcordia (Bellcore) Standard TR/SR |
