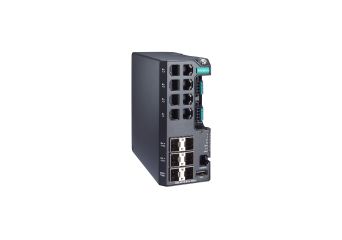

EDS-4014

8+4G+2 2.5GbE-port managed Ethernet switches

Manufacturer: MOXA

Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
Increased bandwidth capabilities with fiber SFP slots supporting up to 2.5 Gbps
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches) , and RSTP/STP for network redundancy
Wide range of power input options for flexible deployment
Compact and flexible housing design to fit into confined spaces
Supports MXstudio for easy, visualized industrial network management

Price from €1,601.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 4 models

Promocja cenowa na model HDR-15-5

Models
Accessories
Description
Technical Specification
Download
Recommended Products

EDS-4014

Models

Filter: ()

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EDS-4014-4GS-2QGS-LV Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, 2 1000/2500BaseSFP ports, dual power inputs 12/24/48 VDC, -10 to 60°C operating temperature	Out of stock	Warranty:		€1,601.00 €1,969.23 Login to check your price	Login to check your price	pcs.

EDS-4014-4GS-2QGS-LV

Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, 2 1000/2500BaseSFP ports, dual power inputs 12/24/48 VDC, -10 to 60°C operating temperature

Availability: Out of stock

Net price:

€1,601.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EDS-4014-4GS-2QGS-LV-T Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, 2 1000/2500BaseSFP ports, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperature	Out of stock	Warranty:		€1,729.00 €2,126.67 Login to check your price	Login to check your price	pcs.

EDS-4014-4GS-2QGS-LV-T

Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, 2 1000/2500BaseSFP ports, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperature

Availability: Out of stock

Net price:

€1,729.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EDS-4014-4GS-2QGS-HV Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, 2 1000/2500BaseSFP ports, single power input 110/220 VAC/VDC, -10 to 60°C operating temperature	Out of stock	Warranty:		€1,707.00 €2,099.61 Login to check your price	Login to check your price	pcs.

EDS-4014-4GS-2QGS-HV

Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, 2 1000/2500BaseSFP ports, single power input 110/220 VAC/VDC, -10 to 60°C operating temperature

Availability: Out of stock

Net price:

€1,707.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EDS-4014-4GS-2QGS-HV-T Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, 2 1000/2500BaseSFP ports, single power input 110/220 VAC/VDC, -40 to 75°C operating temperature	Out of stock	Warranty:		€1,839.00 €2,261.97 Login to check your price	Login to check your price	pcs.

EDS-4014-4GS-2QGS-HV-T

Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, 2 1000/2500BaseSFP ports, single power input 110/220 VAC/VDC, -40 to 75°C operating temperature

Availability: Out of stock

Net price:

€1,839.00

Accessories

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
SFP-1FEMLC-T Small Form Factor pluggable transceiver with 100Base multi-mode, LC connector, 4Km, -40 to 85°C	In stock	Warranty:		€122.00 €150.06 Login to check your price	Login to check your price	pcs.

SFP-1FEMLC-T

Small Form Factor pluggable transceiver with 100Base multi-mode, LC connector, 4Km, -40 to 85°C

Availability:

In stock

Net price:

€122.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
SFP-1FESLC-T Small Form Factor pluggable transceiver with 100Base single-mode, LC connector, 40Km, -40 to 85°C	In stock	Warranty:		€274.00 €337.02 Login to check your price	Login to check your price	pcs.

SFP-1FESLC-T

Small Form Factor pluggable transceiver with 100Base single-mode, LC connector, 40Km, -40 to 85°C

Availability:

In stock

Net price:

€274.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
SFP-1GLXLC Small Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km, 0 to 60°C	In stock	Warranty:		€257.00 €316.11 Login to check your price	Login to check your price	pcs.

SFP-1GLXLC

Small Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km, 0 to 60°C

Availability:

In stock

Net price:

€257.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
SFP-1GSXLC Small Form Factor pluggable transceiver with 1000BaseSX, LC connector, 0.5 km, 0 to 60°C	In stock	Warranty:		€145.00 €178.35 Login to check your price	Login to check your price	pcs.

SFP-1GSXLC

Small Form Factor pluggable transceiver with 1000BaseSX, LC connector, 0.5 km, 0 to 60°C

Availability:

In stock

Net price:

€145.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
SFP-2.5GLSLC-T SFP module with 1 2.5GBaseFX port with LC connector, single-mode, for 20 km transmission, -40 to 85 °C operating temperature	In stock	Warranty:		€663.00 €815.49 Login to check your price	Login to check your price	pcs.

SFP-2.5GLSLC-T

SFP module with 1 2.5GBaseFX port with LC connector, single-mode, for 20 km transmission, -40 to 85 °C operating temperature

Availability:

In stock

Net price:

€663.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
SFP-2.5GMLC-T SFP module with 1 2.5GBaseFX port with LC connector, multi-mode, for 170, 200, 550, 600 m transmission, -40 to 85 °C operating temperature	In stock	Warranty:		€267.00 €328.41 Login to check your price	Login to check your price	pcs.

SFP-2.5GMLC-T

SFP module with 1 2.5GBaseFX port with LC connector, multi-mode, for 170, 200, 550, 600 m transmission, -40 to 85 °C operating temperature

Availability:

In stock

Net price:

€267.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
SFP-2.5GSLC-T SFP module with 1 2.5GBaseFX port with LC connector, single-mode, for 5 km transmission, -40 to 85 °C operating temperature	In stock	Warranty:		€431.00 €530.13 Login to check your price	Login to check your price	pcs.

SFP-2.5GSLC-T

SFP module with 1 2.5GBaseFX port with LC connector, single-mode, for 5 km transmission, -40 to 85 °C operating temperature

Availability:

In stock

Net price:

€431.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
SFP-2.5GSLHLC-T SFP module with 1 2.5GBaseFX port with LC connector, single-mode, for 45 km transmission, -40 to 85 °C operating temperature	Out of stock	Warranty:		€1,978.00 €2,432.94 Login to check your price	Login to check your price	pcs.

SFP-2.5GSLHLC-T

SFP module with 1 2.5GBaseFX port with LC connector, single-mode, for 45 km transmission, -40 to 85 °C operating temperature

Availability: Out of stock

Net price:

€1,978.00

Description

The EDS-4014 Series is a range of 14-port managed Fast Ethernet switches with four 1 Gbps and two 2.5 Gbps fiber-optic ports.

Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-4014 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone.

The EDS-4014 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.

Technical Specification

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)	8 Auto MDI/MDI-X connection Auto negotiation speed Full/Half duplex mode
100/1000BaseSFP Slots	4
1000/2500BaseSFP Ports	2
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3bz for 2.5GBaseX IEEE 802.3x for flow control IEEE 802.3ad for Port Trunk with LACP IEEE 802.1Q for VLAN Tagging IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1X for authentication

Ethernet Software Features

Filter	GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier
Management	IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Port Mirror, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB
MIB	P-BRIDGE MIB, Q-BRIDGE MIB, IEEE8021-SPANNING-TREE-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, LLDP-EXT-DOT1-MIB, LLDP-EXT-DOT3-MIB, SNMPv2-MIB, RMON MIB Groups 1, 2, 3, 9
Redundancy Protocols	STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, MSTP
Security	Broadcast storm protection, Rate Limit, Trust access control, Static Port Lock, MAC Sticky, HTTPS/SSL, SSH, RADIUS, TACACS+, Login and Password Policy, ACL
Time Management	SNTP, NTP Server/Client, NTP Authentication
Protocols	IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog

Switch Properties

MAC Table Size	16 K
Jumbo Frame Size	9.216 KB
Max. No. of VLANs	256
VLAN ID Range	VID 1 to 4094
IGMP Groups	512
Priority Queues	4
Packet Buffer Size	1 MB

LED Interface

LED Indicators

PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC

Serial Interface

Console Port

RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

USB Interface

USB Connector

USB Type A (Reserved)

Input/Output Interface

Alarm Contact Channels	1, Relay output with current carrying capacity of 1 A @ 24 VDC
Digital Input Channels	1
Digital Inputs	+13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA
Buttons	Reset button

DIP Switch Configuration

DIP Switches

Turbo Ring, Master, Coupler, Reserve

Power Parameters

Connection	2 removable 4-contact terminal block(s)
Pre-installed Power Module	-LV/-LV-T models: PWR-100–LV -HV/-HV-T models: PWR-105-HV-I
Note	The EDS-4014 Series supports modular power supplies. The model names and power parameters are determined by the installed power module. For example: EDS-4014-4GS-2QGS-T + PWR-100-LV = EDS-4014-4GS-2QGS-LV-T EDS-4014-4GS-2QGS-T + PWR-105-HV-I = EDS-4014-4GS-2QGS-HV-T If you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-4014-4GS-2QGS-LV-T with the PWR-105-HV-I, refer to the specifications of the EDS-4014-4GS-2QGS-HV-T.
Input Voltage	-LV/-LV-T models: 12/24/48 VDC, Redundant dual inputs -HV/-HV-T models: 110/220 VDC/VAC, Single input
Operating Voltage	-LV/-LV-T models: 9.6 to 60 VDC -HV/-HV-T models: 88 to 300 VDC, 85 to 264 VAC
Input Current	-LV/-LV-T models: 12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A -HV/-HV-T models: 110-220 VAC, 50-60 Hz, 0.30-0.20 A or 110-220 VDC, 0.30-0.20 A
Power Consumption (Max.)	EDS-4014-4GS-2QGS-LV(-T) models: 12.15 W EDS-4014-4GS-2QGS-HV(-T) models: 14.44 W
Overload Current Protection	Supported
Reverse Polarity Protection	Supported

Physical Characteristics

IP Rating	IP40
Dimensions	55 x 140 x 122.5 mm (2.17 x 5.51 x 4.82 in)
Weight	846 g (1.87 lb)
Installation	DIN-rail mounting, Wall mounting (with optional kit)
Housing	Metal

Environmental Limits

Operating Temperature

Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Standards and certifications

Industrial Cybersecurity	IEC 62443-4-1 IEC 62443-4-2
Safety	UL 61010-2-201, EN 62368-1 (LVD)
EMC	EN 55032/35, EN 61000-6-2/-6-4
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Railway	EN 50121-4
Traffic Control	NEMA TS2
Power Substation	IEC 61850-3 IEEE 1613 Class 1
Hazardous Locations	-LV/-LV-T models: ATEX IECEx Class I Division 2
Maritime	-LV/-LV-T, PoE/PoE-T models: DNV, ABS, NK, LR

MTBF

Time	EDS-4014-4GS-2QGS-LV/LV-T: 1,003,814 hrs EDS-4014-4GS-2QGS-HV/HV-T: 489,769 hrs

Warranty

Warranty Period	5 years
Details	See www.moxa.com/warranty
