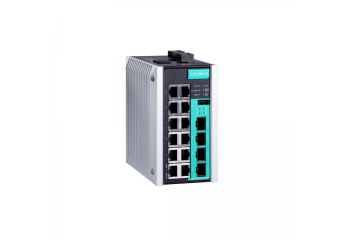

EDS-G516E
16G-port full Gigabit managed Ethernet switches
- Up to 12 10/100/1000BaseT(X) ports and 4 100/1000BaseSFP ports
- Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
- RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and sticky MAC-addresses to enhance network security
- Security features based on IEC 62443
- EtherNet/IP, PROFINET, and Modbus TCP protocols supported for device management and monitoring
- Supports MXstudio for easy, visualized industrial network management
- V-ON™ ensures millisecond-level multicast data and video network recovery
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-G516E-4GSFPManaged full Gigabit Ethernet switch with 12 10/100/1000BaseT(X) ports, and 4 100/1000Base SFP slots, -10°C to 60°C operating temperatureIn stockWarranty: €2,159.00€2,655.57Login to check your price EDS-G516E-4GSFPManaged full Gigabit Ethernet switch with 12 10/100/1000BaseT(X) ports, and 4 100/1000Base SFP slots, -10°C to 60°C operating temperatureAvailability:In stockNet price:€2,159.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-G516E-4GSFP-TManaged full Gigabit Ethernet switch with 12 10/100/1000BaseT(X) ports, and 4 100/1000Base SFP slots, -40°C to 75°C operating temperatureIn stockWarranty: €2,308.00€2,838.84Login to check your price EDS-G516E-4GSFP-TManaged full Gigabit Ethernet switch with 12 10/100/1000BaseT(X) ports, and 4 100/1000Base SFP slots, -40°C to 75°C operating temperatureAvailability:In stockNet price:€2,308.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 30W 24V 1.5AIn stockWarranty: €13.40€16.48Login to check your price DIN rail power supply 30W 24V 1.5AAvailability:In stockNet price:€13.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 1000BaseSX+, LC connector, 2Km, 0 to 60°CIn stockWarranty: €277.00€340.71Login to check your price Small Form Factor pluggable transceiver with 1000BaseSX+, LC connector, 2Km, 0 to 60°CAvailability:In stockNet price:€277.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km, 0 to 60°CIn stockWarranty: €257.00€316.11Login to check your price Small Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km, 0 to 60°CAvailability:In stockNet price:€257.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 1000BaseSX, LC connector, 0.5 km, 0 to 60°CIn stockWarranty: €145.00€178.35Login to check your price Small Form Factor pluggable transceiver with 1000BaseSX, LC connector, 0.5 km, 0 to 60°CAvailability:In stockNet price:€145.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSFP module with 10/100/1000 Base-T port, RJ-45 Connector, -40~75°C Operation TemperatureIn stockWarranty: €319.00€392.37Login to check your price SFP module with 10/100/1000 Base-T port, RJ-45 Connector, -40~75°C Operation TemperatureAvailability:In stockNet price:€319.00
Description
The EDS-G516E Series is equipped with 16 Gigabit Ethernet ports and up to 4 fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. Gigabit transmission increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly.
Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase the reliability of your system and improve the availability of your network backbone. The EDS-G500E Series is designed specifically for communication demanding applications, such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable network backbone.
Additional Features and Benefits
- Command line interface (CLI) for quickly configuring major managed functions
- DHCP Option 82 for IP address assignment with different policies
- Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring
- IGMP snooping and GMRP for filtering multicast traffic
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
- Supports the ABC-02-USB (Automatic Backup Configurator) for system configuration backup/restore and firmware upgrade
- QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
- Port Trunking for optimum bandwidth utilization
- RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1x, MAC ACL, HTTPS, SSH, and sticky MAC address to enhance network security
- SNMPv1/v2c/v3 for different levels of network management
- RMON for proactive and efficient network monitoring
- Bandwidth management to prevent unpredictable network status
- Lock port function for blocking unauthorized access based on MAC address
- Port mirroring for online debugging
- Automatic warning by exception through email and relay output
Technical Specification
- Input/Output Interface
| Alarm Contact Channels | 1, Relay output with current carrying capacity of 1 A @ 24 VDC |
| Buttons | Reset button |
| Digital Input Channels | 1 |
| Digital Inputs | +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA |
- Ethernet Interface
| 10/100/1000BaseT(X) Ports (RJ45 connector) | 12 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| 100/1000BaseSFP Slots | 4 |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication IEEE 802.3ad for Port Trunk with LACP |
- Ethernet Software Features
| Filter | 802.1Q VLAN, Port-based VLAN, GVRP, IGMP v1/v2/v3, GMRP |
| Industrial Protocols | EtherNet/IP, Modbus TCP, PROFINET IO Device (Slave) |
| Management | LLDP, Back Pressure Flow Control, BOOTP, Port Mirror, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP |
| MIB | Ethernet-like MIB, MIB-II, Bridge MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB |
| Redundancy Protocols | Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Security | Broadcast storm protection, HTTPS/SSL, TACACS+, SNMPv3, MAB authentication, Sticky MAC, NTP authentication, MAC ACL, Port Lock, RADIUS, SSH, SMTP with TLS |
| Time Management | NTP Server/Client, SNTP |
- Switch Properties
| IGMP Groups | 2048 |
| Jumbo Frame Size | 9.6 KB |
| MAC Table Size | 8 K |
| Max. No. of VLANs | 256 |
| Packet Buffer Size | 4 Mbits |
| Priority Queues | 4 |
| VLAN ID Range | VID 1 to 4094 |
- USB Interface
| Storage Port | USB Type A |
- LED Interface
| LED Indicators | PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 1000M (TP port), 100/1000M (SFP port), MSTR/HEAD, CPLR/TAIL |
- Serial Interface
| Console Port | USB-serial console (Type B connector) |
- DIP Switch Configuration
| DIP Switches | Turbo Ring, Master, Coupler, Reserve |
- Power Parameters
| Connection | 2 removable 4-contact terminal block(s) |
| Input Current | 0.39 A @ 24 VDC |
| Input Voltage | 12/24/48/-48 VDC, Redundant dual inputs |
| Operating Voltage | 9.6 to 60 VDC |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
- Physical Characteristics
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | 79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in) |
| Weight | 1440 g (3.18 lb) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
- Environmental Limits
| Operating Temperature | EDS-G516E-4GSFP: -10 to 60°C (14 to 140°F) EDS-G516E-4GSFP-T: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| Safety | UL 508 |
| EMC | EN 61000-6-2/-6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Hazardous Locations | ATEX, Class I Division 2 |
| Maritime | DNV-GL, LR, ABS, NK |
| Power Substation | IEC 61850-3, IEEE 1613 |
| Railway | EN 50121-4 |
| Traffic Control | NEMA TS2 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
- MTBF
| Time | 805,491 hrs |
| Standards | Telcordia (Bellcore), GB |
