Manufacturer: MOXA
- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- IEEE 802.3af-compliant PoE PSE equipment
- Power failure alarm by relay output
- Supports store-and-forward mode and pass-through mode
- -40 to 75°C operating temperature range (-T models)
- Redundant dual DC power inputs
Price from €491.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
Filter: ()
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIMC-P101-M-SCIndustrial PoE Media Converter, multi mode, SC connectorOut of stock Warranty: €491.00€603.93Login to check your price IMC-P101-M-SCIndustrial PoE Media Converter, multi mode, SC connectorAvailability: Out of stockNet price:€491.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIMC-P101-M-SC-TIndustrial PoE Media Converter, multi mode, SC connector, -40 to 75°COut of stock Warranty: €613.00€753.99Login to check your price IMC-P101-M-SC-TIndustrial PoE Media Converter, multi mode, SC connector, -40 to 75°CAvailability: Out of stockNet price:€613.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIMC-P101-M-STIndustrial PoE Media Converter, multi mode, ST connectorOut of stock Warranty: €541.00€665.43Login to check your price IMC-P101-M-STIndustrial PoE Media Converter, multi mode, ST connectorAvailability: Out of stockNet price:€541.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIMC-P101-M-ST-TIndustrial PoE Media Converter, multi mode, ST connector, -40 to 75°COut of stock Warranty: €719.00€884.37Login to check your price IMC-P101-M-ST-TIndustrial PoE Media Converter, multi mode, ST connector, -40 to 75°CAvailability: Out of stockNet price:€719.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIMC-P101-S-SCIndustrial PoE Media Converter, single mode, SC connectorOut of stock Warranty: €686.00€843.78Login to check your price IMC-P101-S-SCIndustrial PoE Media Converter, single mode, SC connectorAvailability: Out of stockNet price:€686.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIMC-P101-S-SC-TIndustrial PoE Media Converter, single mode, SC connector, -40 to 75°COut of stock Warranty: €853.00€1,049.19Login to check your price IMC-P101-S-SC-TIndustrial PoE Media Converter, single mode, SC connector, -40 to 75°CAvailability: Out of stockNet price:€853.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIMC-P101-S-STIndustrial PoE Media Converter, single mode, ST connectorOut of stock Warranty: €742.00€912.66Login to check your price IMC-P101-S-STIndustrial PoE Media Converter, single mode, ST connectorAvailability: Out of stockNet price:€742.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIMC-P101-S-ST-TIndustrial PoE Media Converter, single mode, ST connector, -40 to 75°COut of stock Warranty: €1,000.00€1,230.00Login to check your price IMC-P101-S-ST-TIndustrial PoE Media Converter, single mode, ST connector, -40 to 75°CAvailability: Out of stockNet price:€1,000.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 75W 48V 1.6AIn stockWarranty: €22.70€27.92Login to check your price DIN rail power supply 75W 48V 1.6AAvailability:In stockNet price:€22.70
Description

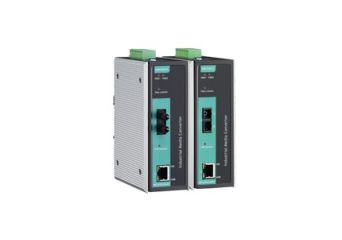

IMC-P101 Ethernet-to-fiber media converters provide Ethernet media conversion from 10/100BaseT(X) to 100BaseFX (with SC or ST connectors). These converters are classified as power source equipment (PSE), and when used in this way, they provide up to 15.4 watts to IEEE 802.3af-compliant powered devices (PDs), eliminating the need for additional wiring. The IMC-P101 converters support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing, providing a complete solution for your industrial Ethernet network.
Technical Specification
- Ethernet Interface
| 100BaseFX Ports (multi-mode SC connector) | IMC-P101-M-SC Series: 1 |
| 100BaseFX Ports (multi-mode ST connector) | IMC-P101-M-ST Series: 1 |
| 100BaseFX Ports (single-mode SC connector) | IMC-P101-S-SC Series: 1 |
| 100BaseFX Ports (single-mode ST connector) | IMC-P101-S-ST Series: 1 |
| Optical Fiber |  |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| PoE Ports (10/100BaseT(X), RJ45 connector) | 1 |
- Power Parameters
| Input Current | 430 mA @ 46 to 57 VDC |
| Input Voltage | 46 to 57 VDC |
| Overload Current Protection | Supported |
| Power Consumption | 430 mA @ 46 to 57 VDC |
- Physical Characteristics
| Housing | Metal |
| Dimensions | 144.5 x 122.3 x 51.65 mm (5.69 x 4.81 x 2.03 in) |
| Weight | 710 g (1.56 lb) |
| Installation | DIN-rail mounting |
- Environmental Limits
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 |
| Environmental Testing | IEC 60068-2-2 IEC 60068-2-3 |
| Safety | EN 60950-1, UL 60950-1 |
| Vibration | IEC 60068-2-6 |
- MTBF
| Time | 435,210 hrs |
| Standards | Telcordia (Bellcore), GB |
