Advanced modular remote I/O adapter with built-in serial ports
Price from €344.00 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
new
Manufacturer: MOXA
- 10/100/1000BaseT(X) auto-negotiation and auto-MDI/MDI-X
- IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standard compliance
- Up to 36 W output on the PoE+ port
- Supports store-and-forward mode and pass-through mode
- -10 to 60°C operating temperature range
- Redundant dual DC power inputs
Price from €414.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIMC-P21GA-G2PoE+ industrial 10/100/1000Base-T(X) to 100/1000BaseSFP media converter, -10 to 60°C operating temperatureIn stockWarranty: €414.00€509.22Login to check your price IMC-P21GA-G2PoE+ industrial 10/100/1000Base-T(X) to 100/1000BaseSFP media converter, -10 to 60°C operating temperatureAvailability:In stockNet price:€414.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIMC-P21GA-G2-SX-SCPoE+ industrial 10/100/1000Base-T(X) to 1000Base-SX media converter, multi-mode port with SC connector, -10 to 60°C operating temperatureOut of stock Warranty: €578.00€710.94Login to check your price IMC-P21GA-G2-SX-SCPoE+ industrial 10/100/1000Base-T(X) to 1000Base-SX media converter, multi-mode port with SC connector, -10 to 60°C operating temperatureAvailability: Out of stockNet price:€578.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIMC-P21GA-G2-LX-SCPoE+ industrial 10/100/1000Base-T(X) to 1000Base-LX media converter, single-mode port with SC connector, -10 to 60°C operating temperatureOut of stock Warranty: €703.00€864.69Login to check your price IMC-P21GA-G2-LX-SCPoE+ industrial 10/100/1000Base-T(X) to 1000Base-LX media converter, single-mode port with SC connector, -10 to 60°C operating temperatureAvailability: Out of stockNet price:€703.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 60W 48V 1.25AIn stockWarranty: €18.20€22.39Login to check your price DIN rail power supply 60W 48V 1.25AAvailability:In stockNet price:€18.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLM28-C3S-TI-N-DDmoduł SFP: 1x 1000SX LC 500m, MMIn stockWarranty: €52.00€63.96Login to check your price LM28-C3S-TI-N-DDmoduł SFP: 1x 1000SX LC 500m, MMAvailability:In stockNet price:€52.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLM38-A3S-TI-N-DDmoduł SFP: FE, multi-mode LC 2km LEDIn stockWarranty: €54.00€66.42Login to check your price LM38-A3S-TI-N-DDmoduł SFP: FE, multi-mode LC 2km LEDAvailability:In stockNet price:€54.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLS38-A3S-TI-N-DDmoduł SFP: 1x100Base, 30km, SM, 1310nmOut of stock Warranty: €57.00€70.11Login to check your price LS38-A3S-TI-N-DDmoduł SFP: 1x100Base, 30km, SM, 1310nmAvailability: Out of stockNet price:€57.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLS38-C3L-TI-N-DDmoduł SFP: 1x 1000LX LC 30km, SM, 1310nmIn stockWarranty: €165.00€202.95Login to check your price LS38-C3L-TI-N-DDmoduł SFP: 1x 1000LX LC 30km, SM, 1310nmAvailability:In stockNet price:€165.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLS38-C3S-TI-N-DDmoduł SFP: 1x 1000LX LC 10km, SM, 1310nmIn stockWarranty: €60.00€73.80Login to check your price LS38-C3S-TI-N-DDmoduł SFP: 1x 1000LX LC 10km, SM, 1310nmAvailability:In stockNet price:€60.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km, 0 to 60°CIn delivery Warranty: €257.00€316.11Login to check your price Small Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km, 0 to 60°CAvailability: In deliveryNet price:€257.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km, -40 to 85°CIn stockWarranty: €302.00€371.46Login to check your price Small Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km, -40 to 85°CAvailability:In stockNet price:€302.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 1000BaseSX, LC connector, 0.5 km, 0 to 60°CIn stockWarranty: €145.00€178.35Login to check your price Small Form Factor pluggable transceiver with 1000BaseSX, LC connector, 0.5 km, 0 to 60°CAvailability:In stockNet price:€145.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 1000BaseSX, LC connector, 0.5 km, -20 to 75°CIn stockWarranty: €197.00€242.31Login to check your price Small Form Factor pluggable transceiver with 1000BaseSX, LC connector, 0.5 km, -20 to 75°CAvailability:In stockNet price:€197.00
Description

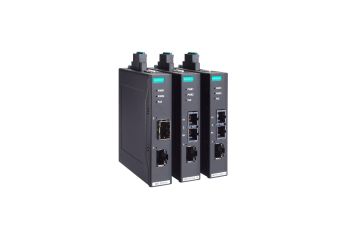

IMC-P21GA-G2 PoE+ Gigabit Ethernet-to-fiber media converters are designed to provide reliable and stable 10/100/1000BaseT(X)-to-100/ 1000Base-SX/LX or selected 100/1000Base SFP module media conversions. These converters are classified as power source equipment (PSE) and are used to directly power up powered devices (PDs), eliminating the need for additional wiring.
The IMC-P21GA-G2 PoE+ Gigabit Ethernet-to-fiber media converters provide up to 30 watts of power on the PoE+ port in standard mode and allow high-power output of up to 36 watts for heavy-duty industrial PoE devices, such as weather-proof IP surveillance cameras with wipers/heaters, high-performance wireless access points, and IP phones. The IMC-P21GA-G2 media converters are highly versatile, and with SFP fiber ports, can transmit data high EMI immunity for up to 80 km from the device to the control center.
The PoE+ Gigabit Ethernet-to-fiber media converters support a variety of useful functions, as well as PoE diagnostics, Link Fault Pass-through, store-and-forward mode and pass-through mode. The IMC-P21GA-G2 converters support IEEE 802.3/802.3u/802.3x with 10/100/1000M and MDI/ MDI-X auto-sensing, providing a complete solution for your industrial Ethernet networks.
Technical Specification
- Ethernet Interface
| 100/1000BaseSFP Ports | IMC-P21GA-G2 models: 1 |
| 1000BaseSX Ports (multi-mode SC connector) | IMC-P21GA-G2-SX-SC models: 1 |
| 1000BaseLX Ports (single-mode SC connector) | IMC-P21GA-G2-LX-SC models: 1 |
| PoE Ports (10/100/1000BaseT(X), RJ45 connector) | 1 |
| Optical Fiber |  |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
- Power Parameters
| Input Voltage | 44 to 57 VDC PoE+ output: >52 VDC recommendedPoE output: >44 VDC recommended |
| Power Consumption | Max 828 mA |
| Overload Current Protection | Supported |
- Physical Characteristics
| Housing | Metal |
| IP Rating | IP40 (with I/O modules attached) |
| Dimensions | 90 x 73 x 20.3 mm (3.54 x 2.87 x 0.79 in) |
| Weight | Product Only: 212 g (0.47 lb) |
| Installation | DIN-rail mounting |
- Environmental Limits
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz; Signal: 10 V IEC 61000-4-8 PFMF |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 IEC 60068-2-64 |
| Freefall | ISTA 1A |
- MTBF
| Time | 8,709,561 hrs |
| Standards | Telcordia Standard SR-332 |
- Warranty
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
