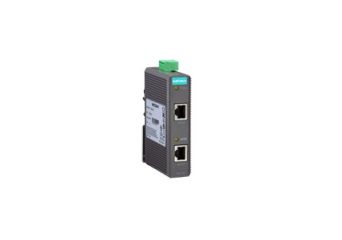

INJ-24

Gigabit IEEE 802.3af/at PoE+ injectors

Manufacturer: MOXA

PoE+ injector for 10/100/1000M networks; injects power and sends data to PDs (power devices)
IEEE 802.3af/at compliant; supports a full 30 watt output
24/48 VDC wide range power input
-40 to 75°C operating temperature range (-T model)

Price from €212.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Models
Accessories
Description
Technical Specification
Download
Recommended Products

INJ-24

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
INJ-24 Industrial IEEE802.3af/at PoE injector, maximum output of 30W at 24/48 VDC, 0 to 60°C	In delivery	Warranty:		€212.00 €260.76 Login to check your price	Login to check your price	pcs.

INJ-24

Industrial IEEE802.3af/at PoE injector, maximum output of 30W at 24/48 VDC, 0 to 60°C

Availability: In delivery

Net price:

€212.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
INJ-24-T Industrial IEEE802.3af/at PoE injector, maximum output of 30W at 24/48 VDC, -40 to 75°C	In stock	Warranty:		€287.00 €353.01 Login to check your price	Login to check your price	pcs.

INJ-24-T

Industrial IEEE802.3af/at PoE injector, maximum output of 30W at 24/48 VDC, -40 to 75°C

Availability:

In stock

Net price:

€287.00

Accessories

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
HDR-60-24 DIN rail power supply 60W 24V 2.5A	In stock	Warranty:		€18.20 €22.39 Login to check your price	Login to check your price	pcs. 60 pieces in box

HDR-60-24

DIN rail power supply 60W 24V 2.5A

Availability:

In stock

Net price:

€18.20

Description

The INJ-24 is a Gigabit IEEE 802.3at PoE+ injector that combines power and data and delivers them to a powered device over one Ethernet cable. Designed for use with power-hungry devices, the INJ-24 injector provides PoE of up to 30 watts. The -40 to 75°C (-40 to 167°F) operating temperature capability makes the INJ-24 ideally suited to operating in harsh industrial environments.

Technical Specification

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)	1 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed
PoE Ports (10/100/1000BaseT(X), RJ45 connector)	1 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed
PoE Pinout	V+, V+, V-, V-, for pins 4, 5, 7, 8 (Midspan, MDI, Mode B)
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3af/at for PoE/PoE+ output

Power Parameters

Input Voltage	24/48 VDC
Operating Voltage	22 to 57 VDC
Input Current	1.42 A @ 24 VDC
Power Consumption (Max.)	Max. 4.08 W full loading without PDs’ consumption
Power Budget	Max. 30 W for total PD consumption Max. 30 W for each PoE port
Connection	1 removable 3-contact terminal block(s)
Overload Current Protection	Supported
Reverse Polarity Protection	Supported

Physical Characteristics

Housing	Plastic
IP Rating	IP30
Dimensions	24.9 x 100 x 86.2 mm (0.98 x 3.93 x 3.39 in)
Weight	115 g (0.26 lb)
Installation	DIN-rail mounting

Environmental Limits

Operating Temperature	INJ-24: 0 to 60°C (32 to 140°F) INJ-24-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

Safety	UL 508, EN 60950-1
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Freefall	IEC 60068-2-31
Shock	IEC 60068-2-27
Vibration	IEC 60068-2-6
