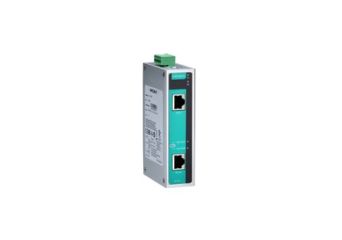

INJ-24A

Gigabit high power IEEE 802.3af/at PoE+ injectors

Manufacturer: MOXA

High-power mode provides up to 60 W
DIP switch configurator and LED indicator for PoE management
3 kV surge resistance for harsh environments
Mode A and Mode B selectable for flexible installation
Built-in 24/48 VDC booster for redundant dual power inputs
-40 to 75°C operating temperature range (-T model)

Price from €342.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Models
Accessories
Description
Technical Specification
Download
Recommended Products

INJ-24A

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
INJ-24A Gigabit High-power PoE+ injector, max. output of 36W/60W @24 or 48VDC by 2-pair/4-pair mode, 0 to 60°C operating temperature	In stock	Warranty:		€342.00 €420.66 Login to check your price	Login to check your price	pcs.

INJ-24A

Gigabit High-power PoE+ injector, max. output of 36W/60W @24 or 48VDC by 2-pair/4-pair mode, 0 to 60°C operating temperature

Availability:

In stock

Net price:

€342.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
INJ-24A-T Gigabit High-power PoE+ injector, max. output of 36W/60W @24 or 48VDC by 2-pair/4-pair mode, -40 to 75°C operating temperature	In stock	Warranty:		€430.00 €528.90 Login to check your price	Login to check your price	pcs.

INJ-24A-T

Gigabit High-power PoE+ injector, max. output of 36W/60W @24 or 48VDC by 2-pair/4-pair mode, -40 to 75°C operating temperature

Availability:

In stock

Net price:

€430.00

Accessories

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
HDR-60-48 DIN rail power supply 60W 48V 1.25A	In stock	Warranty:		€18.20 €22.39 Login to check your price	Login to check your price	pcs. 60 pieces in box

HDR-60-48

DIN rail power supply 60W 48V 1.25A

Availability:

In stock

Net price:

€18.20

Description

The INJ-24A is a Gigabit high-power PoE+ injector that combines power and data and delivers them to a powered device over one Ethernet cable. Designed for power-hungry devices, the INJ-24A injector provides up to 60 watts, which is twice as much power as conventional PoE+ injectors. The injector also includes features such as a DIP switch configurator and LED indicator for PoE management, and it can also support 24/48 VDC power inputs for power redundancy and operational flexibility. The -40 to 75°C (-40 to 167°F) operating temperature capability makes the INJ-24A ideally suited to operating in harsh industrial environments.

Technical Specification

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)	1 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed
PoE Ports (10/100/1000BaseT(X), RJ45 connector)	1 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed
PoE Pinout	Default: V+, V+, V-, V- for pins 4, 5, 7, 8 (Midspan, MDI, Mode B) Custom DIP switch setting: V+, V+, V-, V- for pins 1, 2, 3, 6 (Endspan, MDI, Mode A)
Standards	IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3af/at for PoE/PoE+ output IEEE 802.3u for 100BaseT(X)

Power Parameters

Input Voltage	24/48 VDC
Operating Voltage	22 to 57 VDC
Input Current	2.71 A @ 24 VDC
Power Consumption (Max.)	Max. 5.29 W full loading without PDs’ consumption
Power Budget	Max. 60 W for total PD consumption Max. 60 W for each PoE port
Connection	1 removable 4-contact terminal block(s)
Overload Current Protection	Supported
Reverse Polarity Protection	Supported

Physical Characteristics

Housing	Metal
IP Rating	IP30
Dimensions	30 x 115 x 78.8 mm (1.19 x 4.53 x 3.10 in)
Weight	245 g (0.54 lb)
Installation	DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating Temperature	INJ-24A: 0 to 60°C (32 to 140°F) INJ-24A-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

Safety	UL 508, EN 60950-1
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 3 kV; Signal: 3 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Freefall	IEC 60068-2-31
Shock	IEC 60068-2-27
Vibration	IEC 60068-2-6
