Manufacturer: MOXA
- Plug and play
- EN 61000-4-5 Level 4 surge protection for serial data lines
- Supports RS-232 or RS-422/485
- Compact size for easy installation
- Wide-temperature model available for -40 to 85°C environments
Price from €78.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5

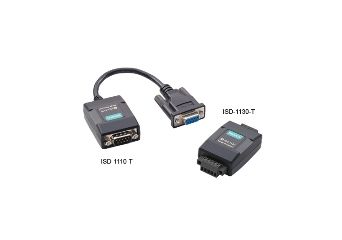

ISD-1110-T/1130-T
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddISD-1130-T4 data line entry surge protector, RS-422/485, 4 kV surge protection, -40 to 85°C operating temperatureIn stockWarranty: €78.00€95.94Login to check your price ISD-1130-T4 data line entry surge protector, RS-422/485, 4 kV surge protection, -40 to 85°C operating temperatureAvailability:In stockNet price:€78.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddISD-1110-T7 data line entry surge protector, RS-232, 4 kV surge protection, -40 to 85°C operating temperatureIn stockWarranty: €88.00€108.24Login to check your price ISD-1110-T7 data line entry surge protector, RS-232, 4 kV surge protection, -40 to 85°C operating temperatureAvailability:In stockNet price:€88.00
Description
The ISD-1110-T/1130-T Series provides surge protection for serial data lines to prevent damage to devices such as modems, fax machines, I/O ports, terminals, instrumentation, hubs, and any other devices that use serial data connections. The ISD-1110-T/1130-T can add serial data line protection to a variety of serial connections: RS-232, RS-422, and RS-485.
Technical Specification
- Serial Interface
| Connector | ISD-1110-T: DB9 male ISD-1130-T: Terminal block |
| Serial Standards | ISD-1110-T: RS-232 ISD-1130-T: RS-422, RS-485 |
| Baudrate | 50 bps to 921.6 kbps |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
- Physical Characteristics
| Housing | Plastic |
| IP Rating | IP30 |
| Dimensions | 53 x 37 x 20.6 mm (2.01 x 1.46 x 0.81 in) |
| Weight | ISD-1110-T: Packaged: 119 g (0.26 lb) ISD-1130-T: Packaged: 96 g (0.21 lb) ISD-1110-T: Product only: 58 g (0.13 lb) ISD-1130-T: Product only: 30 g (0.07 lb) |
| Installation | Desktop |
- Environmental Limits
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMS | IEC 61000-4-5 Surge: Signal: 4 kV |
| Environmental Testing | IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3 |
| Safety | EN 60950-1, IEC 60950-1 |
| Vibration | IEC 60068-2-6 |
- MTBF
| Time | 62,642,538 hrs |
| Standards | Telcordia (Bellcore), GB |
