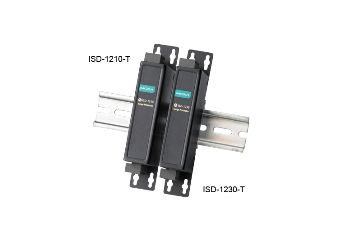

ISD-1210-T/1230-T
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddISD-1230-T4 data line advanced surge protector, RS-422/485, 20 kV surge protection, -40 to 85°C operating temperatureIn stockWarranty: €217.00€266.91Login to check your price ISD-1230-T4 data line advanced surge protector, RS-422/485, 20 kV surge protection, -40 to 85°C operating temperatureAvailability:In stockNet price:€217.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddISD-1210-T4 data line advanced surge protector, RS-232, 20 kV surge protection, -40 to 85°C operating temperatureIn delivery Warranty: €217.00€266.91Login to check your price ISD-1210-T4 data line advanced surge protector, RS-232, 20 kV surge protection, -40 to 85°C operating temperatureAvailability: In deliveryNet price:€217.00
Description
The ISD-1210-T/1230-T Series provides surge protection for serial data lines to prevent damage to devices such as modems, fax machines, I/O ports, terminals, instrumentation, hubs, and any other devices that use serial data connections. The ISD-1210-T/1230-T can add serial data line protection to a variety of serial connections: RS-232, RS-422, and RS-485.
Technical Specification
- Serial Interface
| Connector | Terminal block |
| Serial Standards | ISD-1210-T: RS-232 ISD-1230-T: RS-422, RS-485 |
| Baudrate | 50 bps to 921.6 kbps |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
- Physical Characteristics
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | 95 x 53 x 25 mm (3.74 x 2.01 x 0.98 in) |
| Weight | ISD-1210-T: Packaged: 276 g (0.61 lb) ISD-1230-T: Packaged: 274 g (0.60 lb) ISD-1210-T: Product only: 214 g (0.47 lb) ISD-1230-T: Product only: 212 g (0.46 lb) |
| Installation | DIN-rail mounting |
- Environmental Limits
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMS | IEC 61643-21 C2 20 kV |
| Environmental Testing | IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3 |
| Safety | EN 60950-1, IEC 60950-1 |
| Vibration | IEC 60068-2-6 |
- MTBF
| Time | 62,642,538 hrs |
| Standards | Telcordia (Bellcore), GB |
Download
