MAT-WDB-CA-RM-2-0205
MIMO 2x2, 2.4/5 GHz, dual-band ceiling antenna, 2/5 dBi, RP-SMA-type (male)
Manufacturer: MOXA
Manufacturer: MOXA
- RP-SMA-type (male) connector
- Lightweight
- Easy to mount on the ceiling
- -40 to 75°C operating temperature range
Price from €73.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
MAT-WDB-CA-RM-2-0205
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMAT-WDB-CA-RM-2-0205MIMO 2x2, 2.4/5 GHz, dual-band ceiling antenna, 2/5 dBi, RP-SMA-type (male)Out of stock Warranty: €73.00€89.79Login to check your price MAT-WDB-CA-RM-2-0205MIMO 2x2, 2.4/5 GHz, dual-band ceiling antenna, 2/5 dBi, RP-SMA-type (male)Availability: Out of stockNet price:€73.00
Description

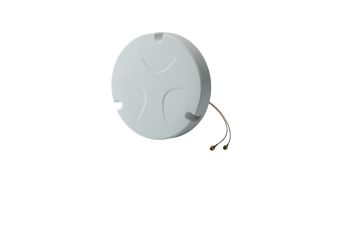

The MAT-WDB-CA-RM-2-0205 antenna is a lightweight MIMO 2x2 dual-band ceiling antenna with a RP-SMA-type (male) connector. The antenna can be used in both the 2.4 GHz and 5 GHz frequencies and is designed to operate in temperatures from -40 to 75°C.
Technical Specification
- Antenna Characteristics
| Frequency | 2.4 to 2.5, 4.9 to 5.9 GHz |
| Antenna Type | MIMO 2x2, Omni-directional |
| Typical Antenna Gain | 2/5 dBi |
| Connector | RP-SMA (male) |
| Impedance | 50 ohms |
| Polarization | Linear |
| HPBW/Horizontal | 360° |
| V.S.W.R. | 2:1 max. |
| Power Handling | 10 W (max.) |
- Physical Characteristics
| Weight | 115 g (0.25 lb) |
| Height | 37 mm (1.46 in) |
| Diameter | 210.9 mm (8.3 in) |
| Radome Color | White |
| Radome Material | ABS |
| Installation | Ceiling mount |
| Cable | RG-178 |
| Cable Length | 250 mm (9.84 in) |
- Environmental Limits
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (30°C, non-condensing) |
