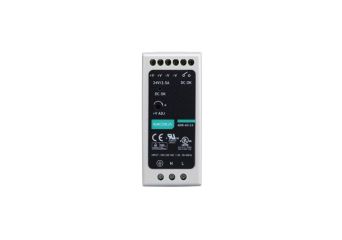

MDR-60-24

Industrial power supply for a wide range of temperatures, output voltage 24VDC, 60W power

Manufacturer: MOXA

High inrush current protection
24 VDC power output
-20 to 70°C operating temperature range
85 to 264 VAC or 120 to 370 VDC input

Price from €103.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Models
Description
Technical Specification
Download
Recommended Products

MDR-60-24

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
MDR-60-24 (Moxa) 60W/2.5A DIN-Rail 24V VDC power supply with universal 85 to 264 VAC input: -20~70?	Out of stock	Warranty:		€103.00 €126.69 Login to check your price	Login to check your price	pcs.

MDR-60-24 (Moxa)

60W/2.5A DIN-Rail 24V VDC power supply with universal 85 to 264 VAC input: -20~70?

Availability: Out of stock

Net price:

€103.00

Description

The MDR Power Supply Series supports inrush current protection of 30 A at 115 VAC and 60 A at 230 VAC. The series has an operating temperature range of -20 to 70°C and a three year warranty, which ensures suitability for operating in harsh environments. In addition, the MDR Series has passed a 100% full load burn-in test, is UL/CUL listed, TÜV/CB certified, and CE marked. This model is available with output 60 W with 24 VDC output.

Technical Specification

Specyfication

Power	60W
Input voltage	85-264 VAC (47-63 Hz) or 120-370 VDC
Output	60 W, 24 VDC, 0-2.5 A
Over-voltage Protection	31.2-36 V
Overload Protection	105-150%
Type	Constant Current Limiting
Reset	Auto Recovery
Inrush Current	30 A and 115 V, or 60 A and 230 V
Safety Standards	TÜV EN60950-1, UL508 Approved
EMC Standards	CISPR22 (EN55022) Class B, EN61000-4-2/3/4/5/6/8/11, ENV50204, EN61000-3-2, EN50082-2
Dimensions	40 x 90 x 100 mm
Weight	280 g
Operating Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	20 to 90% RH
