Manufacturer: MOXA
- DIN-rail mounted power supply
- Slim form factor that is ideal for cabinet installation
- Universal AC power input
- High power conversion efficiency
Price from €282.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-

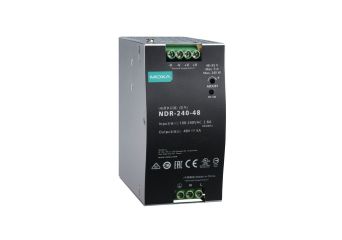

Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNDR-240-48 (Moxa)240W/5A, 48 VDC, with 90 to 264 VAC, 120 to 370 VDC inputOut of stock Warranty: €282.00€346.86Login to check your price NDR-240-48 (Moxa)240W/5A, 48 VDC, with 90 to 264 VAC, 120 to 370 VDC inputAvailability: Out of stockNet price:€282.00
Description
The NDR Series of DIN rail power supplies is designed specifically for use in industrial applications. The 40 to 63 mm slim form-factor enables the power supplies to be easily installed in small and confined spaces such as cabinets. The broad operating temperature range of -20 to 70°C means they are capable of operating in harsh environments. The devices have a metal housing, an AC input range from 90 VAC to 264 VAC, and conform to the EN 61000-3-2 standard. In addition, these power supplies feature constant current mode to provide overload protection.
Technical Specification
- Specyfikacja
| Power | 240W |
| Input voltage |
90 to 264 VAC (47 to 63 Hz), 127 to 370 VDC |
| Output | 240 W, 48 VDC, 0-5 A |
| Voltage Adjustment Range |
48 to 55 VDC |
| Over-voltage Protection |
56 to 65 V |
| Overload Protection | 105-160% |
| Type | Constant current limiting, recovers automatically after fault condition is removed |
| Reset | Auto Recovery |
| Inrush Current | 35 A @ 230 VAC, 20 A @ 115 VAC |
| Safety Standards | UL 508, EN 62368-1, IEC 62368-1 |
| EMC Standards | EN 55032/24, EN 61000-3-2 Class A, EN 61000-3-3 |
| Dimensions | 123.75 x 125.20 x 40 mm |
| Weight | 500 g |
| Operating Temperature | -20 to 70°C (-4 to 158°F) |
| Relative Humidity | 20 to 95% RH |
