8 FE copper + 2 GbE SFP multiport industrial secure router
Price from €1,091.00 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
new
Manufacturer: MOXA
- Data encryption with secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
- Secure Boot only allows Moxa-authorized firmware to run on devices
- One-click log collection and application analysis for easy troubleshooting
- Easy RS-485 configuration of serial interfaces with software-adjustable pull high/low resistor and terminator
- Supports SSL certificate signing by RSA-4096 / ECC-521
- IEC 62443-4-2 Security Level 2 certified
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyAccessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCBL-PJ21NOPEN-BK-30In stockWarranty: €8.00€9.84Login to check your price CBL-PJ21NOPEN-BK-30Availability:In stockNet price:€8.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDK-43-01DIN-rail mounting kit with 2 plates (42.5 x 19.3 mm), 4 M3 x 6 mm screws ( black)Out of stock Warranty: €5.00€6.15Login to check your price DK-43-01DIN-rail mounting kit with 2 plates (42.5 x 19.3 mm), 4 M3 x 6 mm screws ( black)Availability: Out of stockNet price:€5.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDB9 Female to Terminal BlockIn stockWarranty: €11.00€13.53Login to check your price DB9 Female to Terminal BlockAvailability:In stockNet price:€11.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add12V 1.5A, 5.5/2.1/7.5, w/Nut WT, -40 to 75°C, EU PlugIn stockWarranty: €38.00€46.74Login to check your price 12V 1.5A, 5.5/2.1/7.5, w/Nut WT, -40 to 75°C, EU PlugAvailability:In stockNet price:€38.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWR-12150-WPEU-S412V 1.5A, 5.5/2.1/7.5, w/EU PlugOut of stock Warranty: €30.00€36.90Login to check your price PWR-12150-WPEU-S412V 1.5A, 5.5/2.1/7.5, w/EU PlugAvailability: Out of stockNet price:€30.00
Description
Introduction

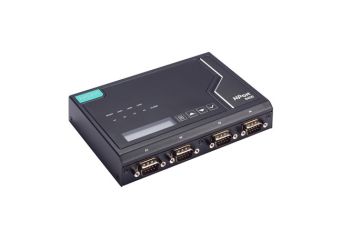

Moxa has leveraged the IEC 62443-4-1 secure development life-cycle process to develop a new generation of secure terminal servers. The NPort 6400-G2 Series secure terminal servers are also IEC 62443-4-2 Security Level 2 certified, enabling secure connections for your legacy serial devices to industrial networks. In addition, user experience is enhanced based on Moxa’s 35 years of experience in the serial-connectivity field by providing versatile installation means for different space requirements and an easy-to-use troubleshooting tool for maintenance.
Secure Data Transmission
For many applications, guaranteeing secure data transmission is an important concern when connecting serial devices to a network. To answer this concern, the NPort® 6400-G2 secure terminal servers support the TLS and SSH protocols, which work by encrypting data before sending it over the network. With the NPort® 6400-G2, you can be rest assured that serial data is transmitted securely over both private and public networks.
One-click Logs and Application Analysis for Easy Troubleshooting
During the deployment stage, system integrators must connect devices and ensure the communication is smooth. They may encounter issues and will require tools to troubleshoot issues. Moxa provides a application analyzer that generates a report at the click of a button to help the system integrator easily identify potential issues and understand how to resolve them.
At the maintenance stage, system errors may require you to call for help. Device vendors might take a long time to troubleshoot issues because they need to collect information and then hold discussions with the technical support team. The NPort 6400-G2 comes with a one-click log collection function, which can provide all the data that a technical support team needs to quickly troubleshoot system issues.
Technical Specification
- Memory
| SD Slot | microSD card, Up to 2 TB (high speed, 25 Mbps) |
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | 1 to 3, Auto MDI/MDI-X connection |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
- Ethernet Software Features
| Configuration Options | Web Console (HTTP/HTTPS), Windows Utility, Device Search Utility (DSU), MCC Tool, Serial Console |
| Management | ARP, DHCP Client, DNS, HTTPS, ICMP, IPv4/IPv6, SMTP, SMTPS, SNMPv1/v2c/v3, SNTP, TCP/IP, UDP, WINS |
| Windows Real COM Drivers | Windows 11, 10, 8.1, 8, and 7; Windows Server 2022, 2019, 2016, 2012 R2, 2012, and 2008 R2 |
| Linux Real TTY Drivers | Kernel versions 6.x, 5.x, and 4.x |
| Fixed TTY Drivers | macOS versions: 14, 13, 12, and 11 |
| Arm®-based Platform Support | Windows 11, Linux kernel 6.x, 5.x, and 4.x, macOS 14, 13, 12, and 11 |
| Virtual Machine | VMWare ESXi (Windows 11/10/8.1/8/7 & Linux 6.x, 5.x, and 4.x), VMware Fusion (Windows on macOS 14, 13, 12, and 11), Parallels Desktop (Windows on macOS 14, 13, 12, and 11) |
| Time Management | SNTP Client |
| MIB | MIB-II, RFC1213, RFC1317, Private MIB |
| Unicast Routing | RIPV1/V2, Static Route |
- Security Functions
| Root of Trust | Secure Boot, True Random Number Generator (TRNG), Security Screws |
| Authentication | Local database, RADIUS, TACACS+ |
| Security Protocols | HTTPS (TLS 1.2/1.3), SNMPv3, SSHv2 |
| Encryption | HTTPS: ECC-256, ECC-384, ECC-521, RSA-1024, RSA-2048, RSA-3072, RSA-4096, AES-128, AES-256, CHACHA20, SHA-256, SHA-384, HMAC; SSH: ECC-256, ECC-384, ECC-521, RSA-2048, AES-128, AES-256, SHA-256, SHA-384, HMAC; SNMPv3: AES-128, SHA-256, SHA-384; Secure OP mode: HTTPS: ECC-256, ECC-384, ECC-521, RSA-1024, RSA-2048, RSA-3072, RSA-4096, AES-128, AES-256, CHACHA20, SHA-256, SHA-384, HMAC; Config Import/Export: AES-256, SHA-256, HMAC |
- Serial Interface
| No. of Ports | 4 |
| Connector | DB9 male |
| Serial Standards | RS-232, RS-422, RS-485 |
| Secure Operation Modes | Reverse SSH, Secure Pair Connection, Secure Real COM, Secure TCP Client, Secure TCP Server, SSH, Secure Redundant COM, Secure Reverse Real COM |
| Standard Operation Modes | Disabled, Pair Connection, SLIP, PPP, Real COM, Reverse Terminal, RFC2217, TCP Client, TCP Server, Terminal, UDP, Redundant COM, Reverse Real COM |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, DTR/DSR, RTS Toggle, XON/XOFF |
| RS-485 Data Direction Control | Automatic Data Direction Control (ADDC) |
| Terminator for RS-485 | 120 ohms (software–configurable) |
| Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms (software–configurable) |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 / RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
Relay
Contact Type N.O. / Common / N.C. Contact Rating (resistive load) 1 A @ 24 VDC - Power Parameters
| Input Current | 373 mA (max.) |
| Input Voltage | 12 to 48 VDC |
- Reliability
| Automatic Reboot Trigger | Built-in WDT |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
- Physical Characteristics
| Housing | Metal |
| Dimensions (with ears) | 158 x 114.4 x 30 mm (6.22 x 4.5 x 1.18 in) |
| Weight | NPort 6450-G2: 538 g (1.186 lb); NPort 6450-2TX-G2: 546 g (1.204 lb); NPort 6450-G2-T: 522 g (1.151 lb); NPort 6450-2TX-G2-T: 530 g (1.168 lb); NPort 6450-2M/-2S-SC-G2-T: 535 g (1.179 lb) |
| Weight (including package) | NPort 6450-G2: 900 g (1.984 lb); NPort 6450-2TX-G2: 908 g (2.002 lb); NPort 6450-G2-T: 690 g (1.521 lb); NPort 6450-2TX-G2-T: 698 g (1.539 lb); NPort 6450-2M/-2S-SC-G2-T: 705 g (1.554 lb) |
| Installation | Desktop, DIN-rail mounting (with optional kit), Wall mounting |
- Environmental Limits
| Operating Temperature | Standard models: -10 to 60°C (14 to 140°F); Standard models with power adapter: 0 to 40°C (32 to 104°F); Wide temp. models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV, Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m; IEC 61000-4-4 EFT: Power: 1 kV, Signal: 0.5 kV; IEC 61000-4-5 Surge: Power: 1 kV; IEC 61000-4-6 CS: 3 V; IEC 61000-4-8 PFMF; IEC 61000-4-11 |
| Safety | IEC 62368-1, UL 62368-1, EN 62368-1 |
| Traffic Control | NEMA TS2 |
| Vibration | IEC 60068-2-6 |
| Package Drop Test | ISTA 1A |
| Declaration (Green Product) | RoHS, CRoHS, WEEE |
- MTBF
| Time | NPort 6450-G2: 29,716 hrs; NPort 6450-2TX-G2: 29,713 hrs; NPort 6450-2M-SC-G2-T: 2,664,201 hrs; NPort 6450-2S-SC-G2-T: 2,664,201 hrs |
| Standards | Telcordia Standard SR-332, Telcordia SR-332 Issue 4 |
- Warranty
| Warranty Period | 5 years |
