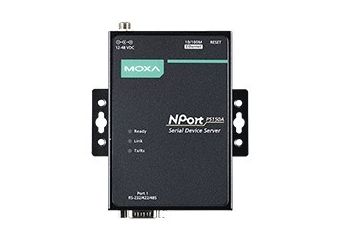

NPort P5150A
1-port RS-232/422/485 PoE serial device servers
- IEEE 802.3af-compliant PoE power device equipment
- Speedy 3-step web-based configuration
- Surge protection for serial, Ethernet, and power
- COM port grouping and UDP multicast applications
- Screw-type power connectors for secure installation
- Real COM/TTY drivers for Windows and Linux
- Standard TCP/IP interface and versatile TCP and UDP operation modes
Price from €279.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort P5150A-T1-port RS-232/422/485 device server, 10/100M Ethernet, DB9 male, PoE, -40~75?, 1KV serial surgeOut of stock Warranty: €349.00€429.27Login to check your price NPort P5150A-T1-port RS-232/422/485 device server, 10/100M Ethernet, DB9 male, PoE, -40~75?, 1KV serial surgeAvailability: Out of stockNet price:€349.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort P5150A1-port RS-232/422/485 device server, 10/100M Ethernet, DB9 male, PoE, 0-60?, 1KV serial surgeIn stockWarranty: €279.00€343.17Login to check your price NPort P5150A1-port RS-232/422/485 device server, 10/100M Ethernet, DB9 male, PoE, 0-60?, 1KV serial surgeAvailability:In stockNet price:€279.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCBL-PJ21NOPEN-BK-30In stockWarranty: €8.00€9.84Login to check your price CBL-PJ21NOPEN-BK-30Availability:In stockNet price:€8.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN Rail Mounting Kit 35mm, for DE-311/211, NPort 5200/5400, NPort W2250/2150In stockWarranty: €4.00€4.92Login to check your price DIN Rail Mounting Kit 35mm, for DE-311/211, NPort 5200/5400, NPort W2250/2150Availability:In stockNet price:€4.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDB9 Female to Terminal BlockIn stockWarranty: €10.00€12.30Login to check your price DB9 Female to Terminal BlockAvailability:In stockNet price:€10.00
Description
NPort® P5150A device servers are designed to make serial devices network-ready in an instant. It is a power device and is IEEE 802.3af compliant, so it can be powered by a PoE PSE device without an additional power supply. Use the NPort® P5150A device servers to give your PC software direct access to serial devices from anywhere on the network. The NPort® P5150A device servers are ultra-lean, ruggedized, and user-friendly, making simple and reliable serial-to-Ethernet solutions possible.
Surge Protection for Serial, Ethernet, and Power
Surge, which is typically caused by high voltages that result from switching and lightning transients, is a common threat to all electrical devices. Moxa’s leading-edge surge immunity solution, which is applied to the NPort® P5150A’s serial, power, and Ethernet lines, is tested and proven compliant with IEC 61000-4-5. This state-of-the-art surge protection provides a robust serial-to-Ethernet solution that can protect electrical devices from voltage spikes and withstand electrically noisy environmental conditions.
3-Step Web-based Configuration
The NPort® P5150A’s 3-step web-based configuration tool is straightforward and user-friendly. The NPort® P5150A’s web console guides users through 3 simple configuration steps that are necessary to activate the serial-to-Ethernet application. With this speedy 3-step web-based configuration, a user only needs to spend an average of 30 seconds to complete the NPort® settings and enable the application, saving a great amount of time and effort.
Easy to Troubleshoot
NPort® P5150A device servers support SNMP, which can be used to monitor all units over Ethernet. Each unit can be configured to send trap messages automatically to the SNMP manager when user-defined errors are encountered. For users who do not use SNMP manager, an email alert can be sent instead. Users can define the trigger for the alerts using Moxa’s Windows utility, or the web console. For example, alerts can be triggered by a warm start, a cold start, or a password change.
Technical Specification
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | 1 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Standards | PoE (IEEE 802.3af) |
- Ethernet Software Features
| Configuration Options | Windows Utility, Serial Console, Telnet Console, Web Console (HTTP/HTTPS) |
| Management | ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP |
| Filter | IGMP v1/v2 |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Android API | Android 3.1.x and later |
| MIB | RFC1213, RFC1317 |
- Serial Interface
| Connector | DB9 male |
| No. of Ports | 1 |
| Serial Standards | RS-232, RS-422, RS-485 |
| Operation Modes | Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP |
| Baudrate | Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, DTR/DSR, XON/XOFF |
| Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
- Power Parameters
| Input Current | DC Jack I/P: 125 mA @ 12 VDC PoE I/P: 180 mA @ 48 VDC |
| Input Voltage | 12 to 48 VDC (supplied by power adapter), 48 VDC (supplied by PoE) |
| No. of Power Inputs | 1 |
| Source of Input Power | Power input jack PoE |
- Reliability
| Automatic Reboot Trigger | Built-in WDT |
- Physical Characteristics
| Housing | Metal |
| Dimensions (with ears) | 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in) |
| Dimensions (without ears) | 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in) |
| Weight | 300 g (0.66 lb) |
- Environmental Limits
| Operating Temperature | NPort P5150A: 0 to 60°C (32 to 140°F) NPort P5150A-T: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs |
| Safety | UL 60950-1 |
- MTBF
| Time | 2,231,530 hrs |
| Standards | Telcordia (Bellcore) Standard TR/SR |
