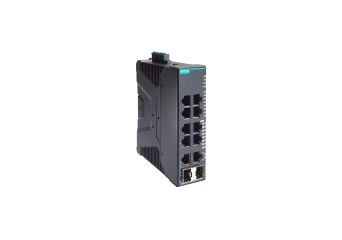

SDS-3010-PoE
Industrial 8+2G-port smart Ethernet switches with 8-port IEEE 802.3af/at PoE+
- Compact and flexible housing design to fit into confined spaces
- Web-based GUI for easy device configuration and management
- Multi-language web GUI: English, Traditional Chinese, Simplified Chinese, Japanese, German, and French
- Supports RSTP/STP, and MRP for network redundancy to ensure high network availability
- EtherNet/IP, PROFINET, and Modbus TCP industrial protocols supported for easy integration and monitoring in automation HMI/SCADA systems
- Security features based on IEC 62443
- Rotary DIP switch can perform profile-based settings without using a web browser
- Supports MXstudio for easy, visualized industrial network management
- 8 IEEE 802.3af/at PoE+ standard ports
- 36-watt output per PoE+ port in high-power mode
Price from €863.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSDS-3010-8PoE-2GTXSFPCompact industrial smart Ethernet switch with 8 x PoE/PoE+ 10/100BaseT(X) ports, 2 x 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, dual 48 VDC power inputs, -40 to 75°C operating temperatureOut of stock Warranty: €863.00€1,061.49Login to check your price SDS-3010-8PoE-2GTXSFPCompact industrial smart Ethernet switch with 8 x PoE/PoE+ 10/100BaseT(X) ports, 2 x 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, dual 48 VDC power inputs, -40 to 75°C operating temperatureAvailability: Out of stockNet price:€863.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSDS-3010-8PoE-2GTXSFP-TCompact industrial smart Ethernet switch with 8 x PoE/PoE+ 10/100BaseT(X) ports, 2 x 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, dual 48 VDC power inputs, -10 to 60°C operating temperatureOut of stock Warranty: €944.00€1,161.12Login to check your price SDS-3010-8PoE-2GTXSFP-TCompact industrial smart Ethernet switch with 8 x PoE/PoE+ 10/100BaseT(X) ports, 2 x 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, dual 48 VDC power inputs, -10 to 60°C operating temperatureAvailability: Out of stockNet price:€944.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLM38-A3S-TI-N-DDmoduł SFP: FE, multi-mode LC 2km LEDOut of stock Warranty: €54.00€66.42Login to check your price LM38-A3S-TI-N-DDmoduł SFP: FE, multi-mode LC 2km LEDAvailability: Out of stockNet price:€54.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLS38-A3S-TI-N-DDmoduł SFP: 1x100Base, 30km, SM, 1310nmIn stockWarranty: €57.00€70.11Login to check your price LS38-A3S-TI-N-DDmoduł SFP: 1x100Base, 30km, SM, 1310nmAvailability:In stockNet price:€57.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLS38-C3S-TI-N-DDmoduł SFP: 1x 1000LX LC 10km, SM, 1310nmIn stockWarranty: €60.00€73.80Login to check your price LS38-C3S-TI-N-DDmoduł SFP: 1x 1000LX LC 10km, SM, 1310nmAvailability:In stockNet price:€60.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 100Base multi-mode, LC connector, 4Km, -40 to 85°CIn stockWarranty: €122.00€150.06Login to check your price Small Form Factor pluggable transceiver with 100Base multi-mode, LC connector, 4Km, -40 to 85°CAvailability:In stockNet price:€122.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 100Base single-mode, LC connector, 40Km, -40 to 85°CIn delivery Warranty: €274.00€337.02Login to check your price Small Form Factor pluggable transceiver with 100Base single-mode, LC connector, 40Km, -40 to 85°CAvailability: In deliveryNet price:€274.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km, 0 to 60°CIn stockWarranty: €257.00€316.11Login to check your price Small Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km, 0 to 60°CAvailability:In stockNet price:€257.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 1000BaseSX, LC connector, 0.5 km, 0 to 60°CIn stockWarranty: €145.00€178.35Login to check your price Small Form Factor pluggable transceiver with 1000BaseSX, LC connector, 0.5 km, 0 to 60°CAvailability:In stockNet price:€145.00
Description
The SDS-3010 smart Ethernet switch is the ideal product for IA engineers and automation machine builders to make their networks compatible with the vision of Industry 4.0. By breathing life into machines and control cabinets, the smart switch simplifies daily tasks with its easy configuration and easy installation. In addition, it is monitorable and is easy to maintain throughout the entire product life cycle.
The most frequently used automation protocols—including EtherNet/IP, PROFINET, and Modbus TCP—are embedded in the SDS-3010 switch to provide enhanced operational performance and flexibility by making it controllable and visible from automation HMIs. It also supports a range of useful management functions, including IEEE 802.1Q VLAN, port mirroring, SNMP, warning by relay, and a multi-language Web GUI.
Additional Features and Benefits
-
IP port binding to ensure critical devices can be replaced quickly without reassigning the IP Address
-
IEEE 802.1Q VLAN to ease network planning
-
Supports the ABC-02-USB (automatic Backup Configurator) for quick system configuration backup/restore and firmware upgrade
-
Automatic warning by exception through relay output
-
Unused port lock, SNMPv3 and HTTPS to enhance network security
-
Port mirroring for online debugging and monitoring
-
Local log and the ability to export inventory files ease inventory management
-
Advanced PoE management function (PoE port setting, PD failure check, and PoE scheduling)
Technical Specification
- Ethernet Interfaces
| 10/100BaseT(X) Ports (RJ45 connector) | SDS-3010-2GTXSFP(-T) models: 8 SDS-3010-8PoE-2GTXSFP(-T) models: 8 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP) | SDS-3010-2GTXSFP(-T) models: 2 SDS-3010-8PoE-2GTXSFP(-T) models: 2 |
| PoE Ports (10/100BaseT(X), RJ45 connector) | SDS-3010-8PoE-2GTXSFP(-T) models: 8 |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service |
| Industrial Protocols | EtherNet/IP Modbus TCP PROFINET IO Device |
| Management | Back Pressure Flow Control DHCP Client Fiber check Flow control IPv4/IPv6 LLDP Port Mirror RMON SNMP Inform SNMPv1/v2c/v3 Syslog |
| MIB | RFC1213 Ethernet-like MIB IF MIB LLDP MIB Bridge MIB Q-BRIDGE MIB |
| Redundancy Protocols | STP, RSTP, MRP |
| Security | Broadcast storm protection HTTPS/SSL Port Lock SNMPv3 Trust access control |
| Time Management | NTP Server/Client SNTP |
| VLANs | 802.1Q VLAN |
- Switch Properties
| Max. No. of VLANs | 8 |
| VLAN ID Range | VID 1 to 4094 |
| MAC Table Size | 8 K |
| Packet Buffer Size | 3 Mbit |
- Interfaces
| LED Indicators |
PWR1, PWR2, STATE, FAULT, 10/100M (TP Port), 10/100/1000M (Gigabit Combo port), smart PoE LED (SDS-3010-8PoE-2GTXSFP(-T) models only) |
| Storage port |
USB Type A (for ABC-02 only) |
| Alarm Contact Channels | 1 Relay output with current carrying capacity of 1 A @ 24 VDC |
| Digital input |
+13 to +30 V for state 1 |
| Reset button | Present |
- Power parameters
| Input Voltage |
SDS-3010-2GTXSFP(-T) models: 12-48 VDC |
| Operating Voltage |
SDS-3010-2GTXSFP(-T) models: 9.6 to 60 VDC SDS-3010-8PoE-2GTXSFP(-T) models: 44 to 57 VDC |
| Input current | SDS-3010-2GTXSFP(-T) models: 0.98 A max. 12-48 VDC SDS-3010-8PoE-2GTXSFP(-T) models: 0.28 A max. 48 VDC |
| Power budget |
Max. 240 W for total PD consumption @ 48 VDC input Note: PoE model specifications are preliminary. |
| Power Consumption (Max.) | SDS-3010-2GTXSFP(-T) models: 7.20 W SDS-3010-8PoE-2GTXSFP(-T) models: 10.76 W full loading without PDs’ consumption |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Power connection |
2 removable 4-contact terminal block(s) |
- Housing
| Housing | Metal, IP40 |
| Weight | SDS-3010-2GTXSFP(-T): 767g SDS-3010-8PoE-2GTXSFP(-T): 795g |
| Dimensions | 36 x 135 x 111 mm |
| Installation | DIN-rail mounting Wall mounting (with optional kit) |
- Environmental Limits
| Operating temperature |
Standard Models: -10 to 60°C Wide Temp. Models: -40 to 75°C |
| Storage Temperature (package included) | -40 to 85°C |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and certifications
| EMC | EN 55032/35 EN 61000-6-2/-6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 800 MHz: 10 V/m; 800 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (1.2/50 μs), 1 kV (10/700 μs) IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Safety | EN IEC 62368-1 UL 61010-2-201 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
MTBF (mean time between failures)
| Time | SDS-3010-2GTXSFP(-T): 3,086,399 hrs SDS-3010-8PoE-2GTXSFP(-T): 2,150,066 hrs |
| Database | Telcordia (Bellcore), GB |
