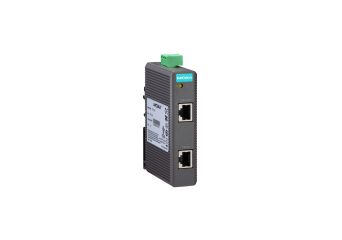

SPL-24

PoE splitters

Manufacturer: MOXA

IEEE 802.3af compliant; splits power and data from PoE equipment
Supports output power up to 12.95 W at 24 VDC
Short-circuit protection for power output
-40 to 75°C operating temperature range (-T model)
DIN-rail mounting ability

Price from €158.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Models
Accessories
Description
Technical Specification
Download
Recommended Products

SPL-24

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
SPL-24 Industrial IEEE802.3af PoE splitter, Maximum output of 12.95W at 24 VDC, 0 to 60°C	Out of stock	Warranty:		€158.00 €194.34 Login to check your price	Login to check your price	pcs.

SPL-24

Industrial IEEE802.3af PoE splitter, Maximum output of 12.95W at 24 VDC, 0 to 60°C

Availability: Out of stock

Net price:

€158.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
SPL-24-T Industrial IEEE802.3af PoE splitter, Maximum output of 12.95W at 24 VDC, -40 to 75°C	Out of stock	Warranty:		€235.00 €289.05 Login to check your price	Login to check your price	pcs.

SPL-24-T

Industrial IEEE802.3af PoE splitter, Maximum output of 12.95W at 24 VDC, -40 to 75°C

Availability: Out of stock

Net price:

€235.00

Accessories

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
HDR-30-24 DIN rail power supply 30W 24V 1.5A	In stock	Warranty:		€13.40 €16.48 Login to check your price	Login to check your price	pcs. 96 pieces in box

HDR-30-24

DIN rail power supply 30W 24V 1.5A

Availability:

In stock

Net price:

€13.40

Description

The main benefit of PoE is that it can transfer data and power to Ethernet-enabled devices using a standard Ethernet CAT5 cable. Moxa’s SPL-24 PoE splitters perform the role of powered devices (PDs) and split power from the injector to Ethernet devices. When using Moxa’s devices, power and data can be transmitted up to 100 meters (328 feet) from the power source equipment (PSE).

The standard model in can operate in temperatures from 0 to 60°C (32 to 140°F) and the wide-temperature model can operate in temperatures from -40 to 75°C (-40 to 167°F). In addition, the rugged hardware means that these devices will perform reliably even when used in demanding industrial applications.

Technical Specification

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)	1 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed
PoE Ports (PD), 10/100BaseT(X), RJ45 Connector	1 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed
Standards	IEEE 802.3af for PoE IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X)

Power Parameters

Operating Voltage	44 to 75 VDC (PoE)
Overload Current Protection	Supported
Output Voltage Rating	24 VDC
Output Power Rating	12.95 W (max.)
Connection	1 removable 3-contact terminal block(s)

Physical Characteristics

Dimensions	24.9 x 100 x 86.2 mm (0.98 x 3.93 x 3.39 in)
Installation	DIN-rail mounting
IP Rating	IP30
Weight	95 g (0.21 lb)

Environmental Limits

Operating Temperature	SPL-24: 0 to 60°C (32 to 140°F) SPL-24-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

Safety	UL 60950-1
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Signal: 2 kV IEC 61000-4-5 Surge: Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Freefall	IEC 60068-2-31
Shock	IEC 60068-2-27
Maritime	DNV-GL, ABS, LR, NK
Vibration	IEC 60068-2-6
