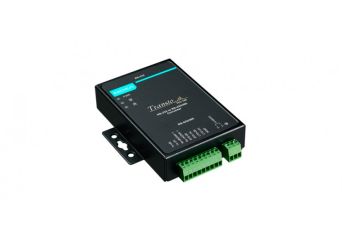

TCC-100/100I

Industrial RS-232 to RS-422/485 converters with optional 2 kV isolation

Manufacturer: MOXA
Manufacturer: MOXA
  • RS-232 to RS-422 conversion with RTS/CTS support
  • RS-232 to 2-wire or 4-wire RS-485 conversion
  • 2 kV isolation protection (TCC-100I)
  • Wall mounting and DIN-rail mounting
  • Plug-in terminal block for easy RS-422/485 wiring
  • LED indicators for power, Tx, Rx
  • Wide-temperature model available for -40 to 85°C environments
Price from €81.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €500

See 4 models

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    TCC-100
    Industrial RS-232/422/485 Converter.
    In stock
    Warranty: 60 months
    €81.00
    €99.63
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    TCC-100I
    Industrial RS-232/422/485 Converter. 2.5KV Isolation
    In stock
    Warranty: 60 months
    €130.00
    €159.90
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    TCC-100I-T
    Industrial RS-232/422/485 Converter. 2.5KV Isolation -40 to 85°C
    In stock
    Warranty: 60 months
    €163.00
    €200.49
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    TCC-100-T
    Industrial RS-232/422/485 Converter. -40 to 85°C
    In stock
    Warranty: 60 months
    €106.00
    €130.38
    Login to check your price

Accessories

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    DIN Rail Mounting Kit 35mm, for DE-311/211, NPort 5200/5400, NPort W2250/2150
    In stock
    Warranty: 24 months
    €4.00
    €4.92
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    DIN rail power supply 20W 12V 1.67A
    In stock
    Warranty: 36 months
    €15.00
    €18.45
    Login to check your price
    72 pieces in box

Description

The TCC-100/100I Series of RS-232 to RS-422/485 converters increases networking capability by extending the RS-232 transmission distance. Both converters have a superior industrial-grade design that includes DIN-rail mounting, terminal block wiring, an external terminal block for power, and optical isolation (TCC-100I and TCC-100I-T only). The TCC-100/100I Series converters are ideal solutions for converting RS-232 signals to RS-422/485 in critical industrial environments.

Technical Specification

  • Serial Interface
Baudrate 50 bps to 921.6 kbps (supports non-standard baudrates)
Connector Terminal block
Isolation TCC-100I/100I-T: 2 kV (-I model)
No. of Ports 2
Pull High/Low Resistor for RS-485 1 kilo-ohm, 150 kilo-ohms
RS-485 Data Direction Control ADDC® (automatic data direction control)
Serial Standards RS-232, RS-422, RS-485
Terminator for RS-485 N/A, 120 ohms, 120 kilo-ohms
  • Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
  • Power Parameters
Input Current TCC-100/100-T: 50 to 85 mA @ 12 to 48 VDC
TCC-100I/100I-T: 150 mA @ 12 to 48 VDC
Input Voltage 12 to 48 VDC
No. of Power Inputs 1
Overload Current Protection Supported
Power Connector Terminal block (for DC models)
Power Consumption TCC-100/100-T: 50 to 85 mA @ 12 to 48 VDC
TCC-100I/100I-T: 150 mA @ 12 to 48 VDC
  • Physical Characteristics
Housing Metal
Dimensions 67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in)
IP Rating IP30
Weight 148 g (0.33 lb)
Installation DIN-rail mounting (with optional kit), Wall mounting
  • Environmental Limits
Operating Temperature Standard Models: -20 to 60°C (-4 to 140°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
Environmental Testing IEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-3
Safety EN 60950-1, IEC 60950-1
Vibration IEC 60068-2-6
  • MTBF
Time 3,017,857 hrs
Standards Telcordia (Bellcore), GB
