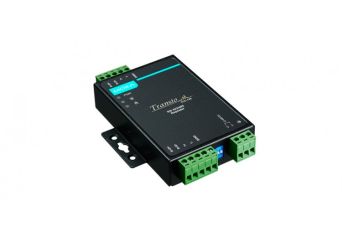

TCC-120/120I

Industrial RS-422/485 converters/repeaters with optional 2 kV isolation

Manufacturer: MOXA

Boosts serial signal to extend transmission distance
Wall mounting or DIN-rail mounting
Terminal block for easy wiring
Power input from terminal block
DIP switch setting for built-in terminator (120 ohm)
Boosts RS-422 or RS-485 signal, or converts RS-422 to RS-485
2 kV isolation protection (TCC-120I)

Price from €106.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Models
Accessories
Description
Technical Specification
Download
Recommended Products

TCC-120/120I

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
TCC-120 Industrial RS-422/485 Repeater	Out of stock	Warranty:		€106.00 €130.38 Login to check your price	Login to check your price	pcs.

TCC-120

Industrial RS-422/485 Repeater

Availability: Out of stock

Net price:

€106.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
TCC-120I Industrial RS-422/485 Isolator/Repeater	In stock	Warranty:		€141.00 €173.43 Login to check your price	Login to check your price	pcs.

TCC-120I

Industrial RS-422/485 Isolator/Repeater

Availability:

In stock

Net price:

€141.00

Accessories

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
MDR-20-12 DIN rail power supply 20W 12V 1.67A	In stock	Warranty:		€12.70 €15.62 Login to check your price	Login to check your price	pcs. 72 pieces in box

MDR-20-12

DIN rail power supply 20W 12V 1.67A

Availability:

In stock

Net price:

€12.70

Description

The TCC-120 and TCC-120I are RS-422/485 converters/repeaters designed to extend RS-422/485 transmission distance. Both products have a superior industrial-grade design that includes DIN-rail mounting, terminal block wiring, and an external terminal block for power. In addition, the TCC-120I supports optical isolation for system protection. The TCC-120 and TCC-120I are ideal RS-422/485 converters/repeaters for critical industrial environments.

Technical Specification

Serial Interface

Connector	Terminal block
No. of Ports	2
Serial Standards	RS-422, RS-485
Baudrate	50 bps to 921.6 kbps (supports non-standard baudrates)
Isolation	TCC-120I: 2 kV
Pull High/Low Resistor for RS-485	1 kilo-ohm, 150 kilo-ohms
RS-485 Data Direction Control	ADDC® (automatic data direction control)
Terminator for RS-485	N/A, 120 ohms, 120 kilo-ohms

Serial Signals

RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND

Power Parameters

Input Current	TCC-120: 65 mA @ 12 VDC TCC-120I: 180 mA @ 12 VDC
Input Voltage	12 to 48 VDC
No. of Power Inputs	1
Overload Current Protection	Supported
Power Connector	Terminal block (for DC models)
Power Consumption	TCC-120: 65 mA @ 12 VDC TCC-120I: 180 mA @ 12 VDC

Physical Characteristics

Housing	Metal
IP Rating	IP30
Dimensions	67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in)
Weight	148 g (0.33 lb)
Installation	DIN-rail mounting (with optional kit), Wall mounting

Environmental Limits

Operating Temperature	Standard Models: -20 to 60°C (-4 to 140°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
Environmental Testing	IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3
Safety	EN 60950-1, IEC 60950-1
Vibration	IEC 60068-2-6
