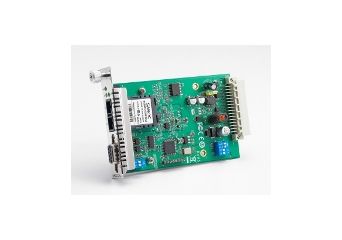

main product photo

TCF-142-RM

RS-232/422/485 to fiber slide-in modules for the NRack System™

Manufacturer: MOXA
Manufacturer: MOXA
  • Extends RS-232/422/485 transmission up to 40 km with single-mode or 5 km with multi-mode
  • 1 or 150 kilo-ohm adjustable pull high/low resistor
  • Supports ring and point-to-point transmission
Price from €199.00 Net price

High price? Log in and buy cheaper

In delivery

Free shipping from €300

See 4 models

Promocja cenowa na model HDR-15-5

Moduł RS-232/422/485 na światłowód do systemu kasetowego NRack

TCF-142-RM

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    TCF-142-M-SC-RM
    RS-232/422/485 to Fiber Optic Converter. SC Multi-mode. Slide-in Module
    		 In delivery Warranty:
    €199.00
    €244.77
    Login to check your price
    		Login to check your price
    TCF-142-M-SC-RM
    RS-232/422/485 to Fiber Optic Converter. SC Multi-mode. Slide-in Module
    Availability: In delivery
    Net price:
    €199.00
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    TCF-142-M-ST-RM
    RS-232/422/485 to Fiber Optic Converter. ST Multi-mode. Slide-in Module
    		 Out of stock Warranty:
    €199.00
    €244.77
    Login to check your price
    		Login to check your price
    TCF-142-M-ST-RM
    RS-232/422/485 to Fiber Optic Converter. ST Multi-mode. Slide-in Module
    Availability: Out of stock
    Net price:
    €199.00
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    TCF-142-S-ST-RM
    RS-232/422/485 to Fiber Optic Converter. ST Single mode. Slide-in Module
    		 Out of stock Warranty:
    €418.00
    €514.14
    Login to check your price
    		Login to check your price
    TCF-142-S-ST-RM
    RS-232/422/485 to Fiber Optic Converter. ST Single mode. Slide-in Module
    Availability: Out of stock
    Net price:
    €418.00
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    TCF-142-S-SC-RM
    RS-232/422/485 to Fiber Optic Converter. SC Single mode. Slide-in Module
    		 In delivery Warranty:
    €418.00
    €514.14
    Login to check your price
    		Login to check your price
    TCF-142-S-SC-RM
    RS-232/422/485 to Fiber Optic Converter. SC Single mode. Slide-in Module
    Availability: In delivery
    Net price:
    €418.00
    Login to check your price

Accessories

Description

The TCF-142-RM Series slide-in modules are serial-to-fiber converters that work with the TRC-190 chassis. The modules convert from the RS-232, RS-422, or RS-485 signal to a fiber-optic signal.

Automatic Baudrate Detection

The TCF-142-RM Series can automatically detect the serial baudrate. This is an extremely convenient feature. Even if a device’s baudrate is changed, the signal will still be transmitted through the media converter without any problem.



Technical Specification

  • Serial Interface
No. of Ports 2
Serial Standards RS-232, RS-422, RS-485
Baudrate 50 bps to 921.6 kbps (supports non-standard baudrates)
Flow Control ADDC® (automatic data direction control) for RS-485
Connector DB9 female
Pull High/Low Resistor for RS-485 1 kilo-ohm, 150 kilo-ohms
RS-485 Data Direction Control ADDC® (automatic data direction control)
Terminator for RS-485 N/A, 120 ohms, 120 kilo-ohms
  • Serial Signals
RS-232 TxD, RxD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
  • Power Parameters
Input Current 150 mA @ 12 VDC
Overload Current Protection Supported
Power Consumption 150 mA @ 12 VDC
  • Physical Characteristics
Housing Metal
IP Rating IP30
Dimensions 86.8 x 136.5 x 21 mm (3.42 x 5.37 x 0.83 in)
Weight 105 g (0.23 lb)
  • Environmental Limits
Operating Temperature 0 to 60°C (32 to 140°F)
Storage Temperature (package included) -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
Environmental Testing IEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-3
Safety EN 60950-1, IEC 60950-1
Vibration IEC 60068-2-6
  • MTBF
Time 514,926 hrs
Standards Telcordia (Bellcore), GB
