Price from €6,026.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTN-4908-ETBN-4GTX-4GTXBP-WV-CT-T8*GE ETBN router with 4*GE BP port, 24-110 VDC power input, conformal coating -40 to 70?, IP40.Out of stock Warranty: TN-4908-ETBN-4GTX-4GTXBP-WV-CT-T8*GE ETBN router with 4*GE BP port, 24-110 VDC power input, conformal coating -40 to 70?, IP40.Availability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTN-4908-4GPoE-4GTX-WV-CT-T8 port router includes 8*GE with 4PoE, 24 to 110 VDC power input, -40 to 70? operating temperature, IP40, conformal coating.Out of stock Warranty: TN-4908-4GPoE-4GTX-WV-CT-T8 port router includes 8*GE with 4PoE, 24 to 110 VDC power input, -40 to 70? operating temperature, IP40, conformal coating.Availability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTN-4908-ETBN-4GPoE-4GTXBP-WV-CT-T8 port ETBN router includes 8*GE with 4PoE, 24 to 110 VDC power input, -40 to 70? operating temperature, IP40, conformal coating.Out of stock Warranty: TN-4908-ETBN-4GPoE-4GTXBP-WV-CT-T8 port ETBN router includes 8*GE with 4PoE, 24 to 110 VDC power input, -40 to 70? operating temperature, IP40, conformal coating.Availability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTN-4908-ETBN-F-4GPoE-4GTXBP-WV-CT-T8 port ETBN firewall router includes 8*GE with 4PoE, 24 to 110 VDC power input, -40 to 70? operating temperature, IP40, conformal coating.Out of stock Warranty: TN-4908-ETBN-F-4GPoE-4GTXBP-WV-CT-T8 port ETBN firewall router includes 8*GE with 4PoE, 24 to 110 VDC power input, -40 to 70? operating temperature, IP40, conformal coating.Availability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTN-4908-ETBN-F-4GTX-4GTXBP-WV-CT-T8*GE ETBN Firewall router with 4*GE BP, 24-110 VDC power input, conformal coating,-40 to 70?, IP40.Out of stock Warranty: TN-4908-ETBN-F-4GTX-4GTXBP-WV-CT-T8*GE ETBN Firewall router with 4*GE BP, 24-110 VDC power input, conformal coating,-40 to 70?, IP40.Availability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTN-4908-8GTX-WV-CT-T8*GE router, 24 to 110 VDC power input, conformal coating, -40 to 70? operating temperature, IP40.Out of stock Warranty: €6,026.00€7,411.98Login to check your price TN-4908-8GTX-WV-CT-T8*GE router, 24 to 110 VDC power input, conformal coating, -40 to 70? operating temperature, IP40.Availability: Out of stockNet price:€6,026.00
Description
Introduction

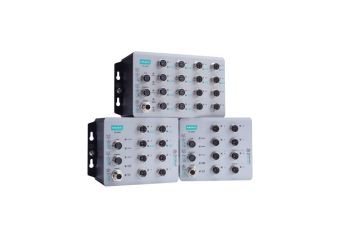

The ToughNet TN-4900 Series, designed for rolling stock Ethernet networks, is a set of high-performance M12 routers with 8 Gigabit ports and up to four bypass relay ports. These routers feature firewall, ETBN, and routing functionality to facilitate the deployment of applications across networks. The TN-4900 Series routers use M12 and other circular connectors to ensure tight, robust connections that guarantee reliability against environmental disturbances, such as vibration and shock.
The TN-4900 Series supports a wide power input range of 24 to 110 VDC and can operate in temperatures of -40 to 70°C for extended periods of time. Furthermore, these routers are compliant with the mandatory requirements of EN 50155, making them suitable for a variety of industrial applications.
Additional Features and Benefits
-
IEC 61375-2-3, 61375-2-5–compliant ETBN
-
IEC 62443-4-2:2019–compliant cybersecurity
-
Routing functionality to divide a large network into hierarchical subnets and allow data and information to communicate across networks
-
NAT makes IP management easier as end devices in different carriages can use the same IP addresses
-
Leading EN 50155 Ethernet router for rolling stock applications
-
Turbo Ring and RSTP/STP for network redundancy
-
Panel mounting installation
-
Line-swap fast recovery
-
Automatic recovery of connected device’s IP addresses
-
LLDP for automatic topology discovery in network management software
-
Configurable by web browser, Telnet/serial console, and CLI Windows utility
Technical Specification
- Ethernet Interface
| 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector) | TN-4908 non-PoE non-ETBN Models: 8TN-4908 non-PoE ETBN Models: 4TN-4908 PoE non-ETBN Models: 4TN-4916 PoE non-ETBN models: 4 |
| 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay) | ETBN Models: 4 |
| PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector) | TN-4916 PoE Models: 8 |
| PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector) | PoE Models: 4 |
| Standards | IEEE 802.1Q for VLAN Tagging IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.3af/at for PoE/PoE+ output IEEE 802.3ab for 1000BaseT(X) IEEE 802.1X for authentication IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.3x for flow control IEEE 802.3u for 100BaseT(X) IEEE 802.1p for Class of Service IEEE 802.3 for 10BaseT |
- Ethernet Software Features
| Configuration Options | Command Line Interface (CLI) through Serial/Telnet/SSH Web Console (HTTP/HTTPS) Windows Utility |
| Filter | IGMP v1/v2 Static Multicast 802.1Q |
| Management | Back Pressure Flow Control SNMP Inform LLDP Syslog HTTP Flow control SMTP QoS/CoS/ToS Port Mirror SNMP Trap SNMPv1/v2c/v3 IPv4 Telnet DHCP server TFTP RARP Account Management |
| Redundancy Protocols | RSTP Static Port Trunk Turbo Ring v2 STP |
| Routing Redundancy | VRRP |
| Security | Port Lock SSH Broadcast storm protection TACACS+ Local Account Accessibility HTTPS/SSL |
| Time Management | SNTP NTP Server/Client |
| Unicast Routing | RIPV1/V2 OSPF Static Route |
| Multicast Routing | Static Route |
- DoS and DDoS Protection
| Technology | NMAP-ID Scan ARP-Flood SYN/FIN Scan Null Scan ICMP-Death FIN Scan SYN-Flood NEWWithout-SYN Scan Xmas Scan NMAP-Xmas Scan SYN/RST Scan |
- Firewall
| Filter | ICMP MAC address Ethernet protocols Ports IP address DDoS |
| Quick Automation Profiles | Telnet HTTP RADIUS PROFINET EtherCAT IPsec SSH PPTP IEC 60870-104 FOUNDATION Fieldbus L2TP EtherNet/IP LonWorks DNP Modbus TCP FTP |
| Stateful Inspection | Router firewall Transparent (bridge) firewall |
| Throughput | Max. 500,000 packets per second |
- Switch Properties
| IGMP Groups | 256 |
| MAC Table Size | 16 K |
| Max. No. of VLANs | 16 |
| VLAN ID Range | VID 1 to 4094 |
- LED Interface
| LED Indicators | STATE, PWR1, PWR2, FAULT, 10/100/1000M, PoE |
- NAT
| Features | 1-to-1 Port forwarding N-to-1 |
- Serial Interface
| Console Port | RS-232 (M12 B-coded 5-pin female connector) |
- USB Interface
| M12 Connector | M12 A-coded 5-pin female (for ABC-02 USB storage) |
- Power Parameters
| Input Current | TN-4908 Non-PoE Models: 0.68 A @ 24 VTN-4908 PoE Models: 3.6 A @ 24 VTN-4916 PoE Models: 5.9 A @ 24 V |
| Input Voltage | 24/36/48/72/96/110 VDC Redundant dual inputs No. of power inputs: 2 |
| Operating Voltage | 16.8 to 137.5 VDC |
| Overload Current Protection | Supported |
| Power Connector | M12 K-coded 5-pin male connector |
| Reverse Polarity Protection | Supported |
| Total PoE Power Budget | TN-4908 PoE Models: 50 WTN-4916 PoE Models: 95 W |
- Physical Characteristics
| Housing | Metal |
| Dimensions | TN-4908 Non-PoE Models: 160 x 115 x 70 mm (6.30 x 4.53 x 2.76 in)TN-4908 PoE Models: 160 x 115 x 100 mm (6.30 x 4.53 x 3.94 in)TN-4916 PoE Models: 206 x 115 x 100 mm (8.10 x 4.53 x 3.94 in) |
| IP Rating | IP40 |
| Weight | TN-4908 Non-PoE Models: 1120 g (2.47 lb)TN-4908 PoE Models: 1640 g ( 3.62 lb)TN-4916 PoE Models: 1990 g ( 4.39 lb) |
| Installation | Wall mounting |
| Protection | Optional PCB conformal coating |
- Environmental Limits
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032, EN 55035 |
| EMS | IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Freefall | IEC 60068-2-31 |
| Radio Frequency | FCC |
| Railway | EN 50121-4 EN 50155 IEC 60571 |
| Railway Fire Protection | EN 45545-2 |
| Safety | IEC 62368, UL 62368 |
| Shock | IEC 60068-2-27, IEC 61373, EN 50155 |
| Vibration | IEC 60068-2-64, IEC 61373, EN 50155 |
- Declaration
| Green Product | RoHS, CRoHS, WEEE |
- MTBF
| Time | TN-4908 Non-PoE Models: 795,840 hrsTN-4908 Non-PoE ETBN Models: 648,903 hrsTN-4908 PoE Models: 644,898 hrsTN-4908 PoE ETBN Models: 545,021 hrsTN-4916 PoE Models: 550,148 hrsTN-4916 PoE ETBN Models: 472,578 hrs |
| Standards | Telcordia SR332 |
- Warranty
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
