Note: TN-5308 series available while stocks last.

Check out the successor - TN-5300A.

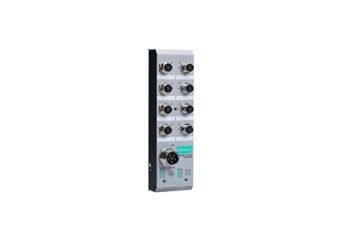

TN-5308

EN 50155 8-port unmanaged Ethernet switches

M12 connectors and IP40 metal housing
Supports IEEE 802.3/802.3u/802.3x
Complies with all EN 50155 mandatory test items
-40 to 75°C operating temperature range (-T models)

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Models
Accessories
Description
Technical Specification
Download
Recommended Products

TN-5308

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
TN-5308-LV-T Unmanaged Ethernet switch with 8 10/100BaseT(X) ports with M12 connectors, 12/24/36/48 VDC, -40 to 75°C	In stock	Warranty:

TN-5308-LV-T

Unmanaged Ethernet switch with 8 10/100BaseT(X) ports with M12 connectors, 12/24/36/48 VDC, -40 to 75°C

Availability:

In stock

Accessories

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
A-CAP-M12F-M CAP-M for M12FF	Out of stock	Warranty:		€8.00 €9.84 Login to check your price	Login to check your price	pcs.

A-CAP-M12F-M

CAP-M for M12FF

Availability: Out of stock

Net price:

€8.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CBL-M12(FF5P)/OPEN-100 IP67 1-meter M12-to-5-pin power cable with waterproof 5-pin A-coded M12 connector	In stock	Warranty:		€22.00 €27.06 Login to check your price	Login to check your price	pcs.

CBL-M12(FF5P)/OPEN-100 IP67

1-meter M12-to-5-pin power cable with waterproof 5-pin A-coded M12 connector

Availability:

In stock

Net price:

€22.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
CBL-M12D(MM4P)/RJ45-100 IP67 1-meter M12-to-RJ45 Cat-5E UTP Ethernet cable with waterproof 4-pin D-coded M12 connector	Out of stock	Warranty:		€22.00 €27.06 Login to check your price	Login to check your price	pcs.

CBL-M12D(MM4P)/RJ45-100 IP67

1-meter M12-to-RJ45 Cat-5E UTP Ethernet cable with waterproof 4-pin D-coded M12 connector

Availability: Out of stock

Net price:

€22.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
M12A-5P-IP68 LTW12-05BFFA-SL8001 Field-installable A-coded screw-in sensor connector, female	Out of stock	Warranty:		€30.00 €36.90 Login to check your price	Login to check your price	pcs.

M12A-5P-IP68 LTW12-05BFFA-SL8001

Field-installable A-coded screw-in sensor connector, female

Availability: Out of stock

Net price:

€30.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
M12D-4P-IP68 Field-installable D-coded screw-in sensor connector, male	In stock	Warranty:		€17.00 €20.91 Login to check your price	Login to check your price	pcs.

M12D-4P-IP68

Field-installable D-coded screw-in sensor connector, male

Availability:

In stock

Net price:

€17.00

Description

The ToughNet TN-5308 Series M12 unmanaged Ethernet switches are designed for industrial applications in harsh environments. TN-5308 Series switches use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. The TN-5308 Series Ethernet switches provide 8 Fast Ethernet M12 ports, support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.

Models with an extended operating temperature range of -40 to 75°C are also available. TN-5308 Ethernet switches comply with those EN 50155 requirements that make products more suitable for rolling stock applications, including operating temperature, power input voltage, surge, ESD, and vibration, making the switches suitable for a variety of industrial applications.

Technical Specification

Ethernet Interface

10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)	8
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control

Power Parameters

Input Current	TN-5308-LV Series: 0.19 A @ 12 VDC, 0.10 A @ 24 VDC, 0.05 A @ 48 VDC TN-5308-MV Series: 0.033 A @ 72 VDC, 0.024 A @ 96 VDC, 0.021 A @ 110 VDC
Input Voltage	TN-5308-LV Series: 12 to 48 VDC TN-5308-MV Series: 72 to 110 VDC
Operating Voltage	TN-5308-LV Series: 8.4 to 60 VDC TN-5308-MV Series: 50.4 to 137.5 VDC
Power Connector	TN-5308-LV Series: M12 A-coded male connector TN-5308-MV Series: M23 connectorPhysical Characteristics

Housing	Metal
IP Rating	IP40
Dimensions	TN-5308-LV Series: 60 x 216.6 x 36.1 mm (2.36 x 8.53 x 1.42 in) TN-5308-MV Series: 60 x 216.6 x 53.8 mm (2.36 x 8.53 x 2.12 in)
Weight	TN-5308-LV Series: 485 g (1.07 lb) TN-5308-MV Series: 685 g (1.51 lb)
Installation	DIN-rail mounting (with optional kit), Wall mounting
Protection	TN-5308 Series -CT models: PCB conformal coating

Environmental Limits

Operating Temperature	Standard Models: -25 to 60°C (-13 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Altitude	2000 m

Standards and Certifications

Freefall	IEC 60068-2-32
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	EC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Environmental Testing	IEC 60068-2-1, EN 50155 IEC 60068-2-14, EN 50155 IEC 60068-2-2, EN 50155 IEC 60068-2-30, EN 50155
International Approval	RCM
Railway	EN 50121-4, EN 50155
Railway Fire Protection	EN 45545-2
Safety	EN 60950-1, UL 508
Salt Spray Test	IEC 60068-2-11, EN 50155
Shock	IEC 60068-2-27, IEC 61373, EN 50155
Vibration	IEC 60068-2-64, IEC 61373, EN 50155
