- 19-inch chassis for rackmount use
- 18 slots for high-density applications
- Supports dual power inputs with redundancy
- Fanless chassis design reduces servicing costs
- SNMP/web console for easy management
- -20 to 55°C operating temperature range
Price from €1,070.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTRC-2190-AC2U Rackmount chassis, with a single 110 to 240 VAC input, 18 slots on the front panel, and CSM-MN01 managed moduleOut of stock Warranty: €1,070.00€1,316.10Login to check your price TRC-2190-AC2U Rackmount chassis, with a single 110 to 240 VAC input, 18 slots on the front panel, and CSM-MN01 managed moduleAvailability: Out of stockNet price:€1,070.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTRC-2190-DC-48V2U Rackmount chassis, with a single 36 to 53 VDC input, 18 slots on the front panel, and CSM-MN01 managed moduleOut of stock Warranty: €1,252.00€1,539.96Login to check your price TRC-2190-DC-48V2U Rackmount chassis, with a single 36 to 53 VDC input, 18 slots on the front panel, and CSM-MN01 managed moduleAvailability: Out of stockNet price:€1,252.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add10/100Base-TX to 100Base-Fx Converter. ST Multi mode. Slide-in ModuleOut of stock Warranty: €243.00€298.89Login to check your price 10/100Base-TX to 100Base-Fx Converter. ST Multi mode. Slide-in ModuleAvailability: Out of stockNet price:€243.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add10/100Base-TX to 100Base-Fx Converter. SC Multi mode. Slide-in ModuleOut of stock Warranty: €243.00€298.89Login to check your price 10/100Base-TX to 100Base-Fx Converter. SC Multi mode. Slide-in ModuleAvailability: Out of stockNet price:€243.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add10/100Base-TX to 100Base-Fx Converter. SC Single mode. Slide-in ModuleIn stockWarranty: €342.00€420.66Login to check your price 10/100Base-TX to 100Base-Fx Converter. SC Single mode. Slide-in ModuleAvailability:In stockNet price:€342.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add10/100BaseT(X) to 100BaseFX slide-in managed module converter, multi-mode ST connector, -20 to 55°COut of stock Warranty: €275.00€338.25Login to check your price 10/100BaseT(X) to 100BaseFX slide-in managed module converter, multi-mode ST connector, -20 to 55°CAvailability: Out of stockNet price:€275.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add10/100BaseT(X) to 100BaseFX slide-in managed module converter, multi-mode ST connector, -40 to 75°COut of stock Warranty: €342.00€420.66Login to check your price 10/100BaseT(X) to 100BaseFX slide-in managed module converter, multi-mode ST connector, -40 to 75°CAvailability: Out of stockNet price:€342.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add10/100BaseT(X) to 100BaseFX slide-in managed module converter, multi-mode SC connector, -20 to 55°COut of stock Warranty: €275.00€338.25Login to check your price 10/100BaseT(X) to 100BaseFX slide-in managed module converter, multi-mode SC connector, -20 to 55°CAvailability: Out of stockNet price:€275.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add10/100BaseT(X) to 100BaseFX slide-in managed module converter, multi-mode SC connector, -40 to 75°COut of stock Warranty: €342.00€420.66Login to check your price 10/100BaseT(X) to 100BaseFX slide-in managed module converter, multi-mode SC connector, -40 to 75°CAvailability: Out of stockNet price:€342.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add10/100BaseT(X) to 100BaseFX slide-in managed module converter, single-mode SC connector, -20 to 55°CIn stockWarranty: €364.00€447.72Login to check your price 10/100BaseT(X) to 100BaseFX slide-in managed module converter, single-mode SC connector, -20 to 55°CAvailability:In stockNet price:€364.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add10/100BaseT(X) to 100BaseFX slide-in managed module converter, single-mode SC connector, -40 to 75°COut of stock Warranty: €450.00€553.50Login to check your price 10/100BaseT(X) to 100BaseFX slide-in managed module converter, single-mode SC connector, -40 to 75°CAvailability: Out of stockNet price:€450.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add10/100BaseT(X) to 100BaseFX slide-in managed module converter, WDM-A single-mode SC connector, -20 to 55°COut of stock Warranty: €364.00€447.72Login to check your price 10/100BaseT(X) to 100BaseFX slide-in managed module converter, WDM-A single-mode SC connector, -20 to 55°CAvailability: Out of stockNet price:€364.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add10/100BaseT(X) to 100BaseFX slide-in managed module converter, WDM-A single-mode SC connector, -40 to 75°COut of stock Warranty: €450.00€553.50Login to check your price 10/100BaseT(X) to 100BaseFX slide-in managed module converter, WDM-A single-mode SC connector, -40 to 75°CAvailability: Out of stockNet price:€450.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add10/100BaseT(X) to 100BaseFX slide-in managed module converter, WDM-B single-mode SC connector, -20 to 55°COut of stock Warranty: €364.00€447.72Login to check your price 10/100BaseT(X) to 100BaseFX slide-in managed module converter, WDM-B single-mode SC connector, -20 to 55°CAvailability: Out of stockNet price:€364.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add10/100BaseT(X) to 100BaseFX slide-in managed module converter, WDM-B single-mode SC connector, -40 to 75°COut of stock Warranty: €450.00€553.50Login to check your price 10/100BaseT(X) to 100BaseFX slide-in managed module converter, WDM-B single-mode SC connector, -40 to 75°CAvailability: Out of stockNet price:€450.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddME-10-T1 slot chassis, redundant power 12 to 48 VDC input.Out of stock Warranty: €119.00€146.37Login to check your price ME-10-T1 slot chassis, redundant power 12 to 48 VDC input.Availability: Out of stockNet price:€119.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWR-2190-ACRedundant power supply, 110 to 240 VACOut of stock Warranty: €226.00€277.98Login to check your price PWR-2190-ACRedundant power supply, 110 to 240 VACAvailability: Out of stockNet price:€226.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPWR-2190-DC-48VRedundant power supply, 48 VDCOut of stock Warranty: €404.00€496.92Login to check your price PWR-2190-DC-48VRedundant power supply, 48 VDCAvailability: Out of stockNet price:€404.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-232/422/485 to Fiber Optic Converter. SC Multi-mode. Slide-in ModuleIn delivery Warranty: €199.00€244.77Login to check your price RS-232/422/485 to Fiber Optic Converter. SC Multi-mode. Slide-in ModuleAvailability: In deliveryNet price:€199.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-232/422/485 to Fiber Optic Converter. ST Multi-mode. Slide-in ModuleOut of stock Warranty: €199.00€244.77Login to check your price RS-232/422/485 to Fiber Optic Converter. ST Multi-mode. Slide-in ModuleAvailability: Out of stockNet price:€199.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-232/422/485 to Fiber Optic Converter. SC Single mode. Slide-in ModuleIn delivery Warranty: €418.00€514.14Login to check your price RS-232/422/485 to Fiber Optic Converter. SC Single mode. Slide-in ModuleAvailability: In deliveryNet price:€418.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRS-232/422/485 to Fiber Optic Converter. ST Single mode. Slide-in ModuleOut of stock Warranty: €418.00€514.14Login to check your price RS-232/422/485 to Fiber Optic Converter. ST Single mode. Slide-in ModuleAvailability: Out of stockNet price:€418.00
Description

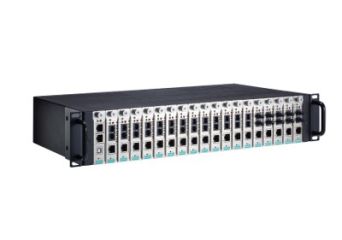

The TRC-2190 Series provides 18 slots for media converter modules from the CSM-400 Series of Ethernet-to-fiber management modules. It also supports SNMP/web console for remote management and monitoring. A TRC-2190 chassis comes with one AC or DC power input, with an optional redundant power expansion module available for greater reliability. The TRC-2190 Series’ power input module supports a fanless chassis design, as well as a -20 to 55°C operating temperature range.
Technical Specification
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | 2 |
- Ethernet Software Features
| Industrial Protocols | SNMPv1/v2c, SNMPv1/v2c Trap |
| Management | DHCP Client, IPv4/IPv6, SNMPv1/v2c, Syslog, TCP/IP, Telnet, TFTP, UDP, Web Console |
| MIB | MIB-II |
| Security | HTTPS/SSL, Local Account Accessibility, TACACS+, RADIUS, SSH |
| Time Management | NTP Client |
- Power Parameters
| Input Voltage | TRC-2190-AC: 110 to 240 VAC, TRC-2190-DC-48V: 36 to 53 VDC |
| No. of Power Inputs | 2 |
| Overload Current Protection | Supported |
| Power Consumption | TRC-2190-AC: 0.9 mA @ 110 VAC TRC-2190-DC-48V: 2.1 mA @ 48 VDC |
- Physical Characteristics
| IP Rating | IP30 |
| Dimensions | 440 x 260 x 77 mm (18.6 x 11 x 3.3 in) |
| Weight | 5.2 g (11.4 lb) |
| Installation | 19-inch rack mounting |
- Environmental Limits
| Operating Temperature | -20 to 55°C (-4 to 131°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF |
| Environmental Testing | IEC 60068-2-1 IEC 60068-2-14 IEC 60068-2-2 IEC 60068-2-3 |
| Safety | EN 60950-1, IEC 60950-1 |
| Vibration | IEC 60068-2-6 |
- MTBF
| Time | 1,055,112 hrs |
| Standards | Telcordia (Bellcore), GB |
