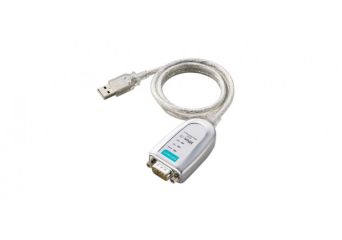

UPort 1110

1-port RS-232 USB-to-serial converters

Manufacturer: MOXA
Manufacturer: MOXA
  • 921.6 kbps maximum baudrate for fast data transmission
  • Drivers provided for Windows, macOS, Linux, and WinCE
  • Mini-DB9-female-to-terminal-block adapter for easy wiring
  • LEDs for indicating USB and TxD/RxD activity

Price from €36.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €500

See 1 model

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    UPort 1110
    1 Port USB-to-Serial Adaptor, RS-232
    In stock
    Warranty: 60 months
    €36.00
    €44.28
    Login to check your price

Description

The UPort® 1110 of USB-to-serial converters is the perfect accessory for laptop or workstation computers that do not have a serial port. They are essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector.

The UPort® 1110 converts from USB to RS-232. All products are compatible with legacy serial devices, and can be used with instrumentation and point-of-sale applications.

Technical Specification

  • USB Interface
Speed 12 Mbps
USB Connector USB Type A
USB Standards USB 1.0/1.1 compliant, USB 2.0 compatible
  • Serial Interface
No. of Ports 1
Connector DB9 male
Baudrate 50 bps to 921.6 kbps
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control None, RTS/CTS, XON/XOFF
Serial Standards RS-232
  • Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • Power Parameters
Input Voltage 5 VDC
Input Current 30 mA
  • Physical Characteristics
Housing ABS + Polycarbonate
Dimensions 37.5 x 20.5 x 60 mm (1.48 x 0.81 x 2.36 in)
Weight 65 g (0.14 lb)
  • Environmental Limits
Operating Temperature 0 to 55°C (32 to 131°F)
Storage Temperature (package included) -20 to 70°C (-4 to 158°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class 1
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m
IEC 61000-4-8 PFMF
  • Declaration
Green Product RoHS, CRoHS, WEEE
  • MTBF
Time 1,949,025 hrs
Standards MIL-HDBK-217F Telcordia (Bellcore), GB
