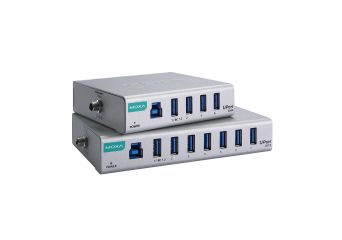

UPort 200A

4 and 7 USB 3.2 hubs

Manufacturer: MOXA

USB-IF certification
USB 3.2 SuperSpeed capability
IP30 aluminum housing
DIN-rail housing and wall-mountable housing

Price from €198.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Models
Description
Technical Specification
Download
Recommended Products

UPort 200A

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
UPort 207A 7 port general-purpose USB 3.2 hubs	In stock	Warranty:		€239.00 €293.97 Login to check your price	Login to check your price	pcs.

UPort 207A

7 port general-purpose USB 3.2 hubs

Availability:

In stock

Net price:

€239.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
UPort 204A 4 port general-purpose USB 3.2 hubs	Out of stock	Warranty:		€198.00 €243.54 Login to check your price	Login to check your price	pcs.

UPort 204A

4 port general-purpose USB 3.2 hubs

Availability: Out of stock

Net price:

€198.00

Description

The Uport 200A is a USB 3.2 hubs capable of expanding a USB port to 4 or 7 ports. The device is designed to provide USB 3.2 Gen 1 SuperSpeed 5Gbps data transfer rates through each port. Full compliance with the USB plug-and-play specification and full power supply of up to 900mA per port, guaranteeing the proper operation of USB devices and the widest compatibility. In addition, the UPort 200A are compatible with BC 1.2 on port 1 which allows charging of mobile devices up to 1.5A.

Technical Specification

USB Interface

USB Standards	USB 1.1/2.0 compliant USB 3.2 Gen 1
Speed	5 Gbps
USB Connector	UFP: type BDFP: type A
No. of USB Ports	8 (UFP: 1, DFP 7) for UPort 207A 5 (UFP: 1, DFP 4) for UPort 204A

Power Parameters

Input Voltage	No. of power inputs: 1, 12 VDC
Power Connector	Power jack
Power Consumption	UPort 207A: 4.5 A @ 12 VDC UPort 204A: 2.65 A @ 12 VDC
Reverse Polarity Protection	Supported
Output Power Rating	Port 1: 900 / 1500 mA @ 5 VDC (BC 1.2 compatible) Rest of ports: 900 mA @ 5 VDC

Physical Characteristics

Housing	Metal
Dimensions	UPort 207A: 80 x 27 x 140 mm (3.15 x 1.06 x 5.51 in) UPort 204A: 85 x 27 x 100 mm (3.35 x 1.06 x 3.94 in)
Weight	UPort 207A: 273 g (0.60 lb)UPort 204A: 208 g (0.46 lb)
Installation	DIN-rail mounting (with optional kit), Wall mounting (with optional kit)

Environmental Limits

Operating Temperature	0 to 60°C (32 to 140°F)
Storage Temperature	-20 to 75°C (-4 to 167°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

EMC	EN 55032/35
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m IEC 61000-4-8 PFMF
Safety	EN 62368-1, UL 62368-1, KC
Environmental Testing	IEC 60068-2-1
Freefall	IEC 60068-2-34
