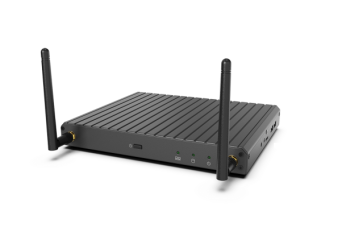

MS-1P17

Ultra Slim Size Box PC with Intel IOTG Alder Lake-N Processor for Ultra Low-Power Fanless Solution

  • Intel Alder Lake-N PC Client Series SoC
  • DDR5 4800 MHz SODIMM Slot up to 16GB
  • Dual independent displays: DP, HDMI
  • 2 2.5 GbE LAN with RJ-45
  • 1 M.2 B Key, 1 M.2 E Key Slot
  • 4 USB 3.1 , 2 USB 2.0, 1 COM (1 RS-485), Audio
  • 2 opening reserved for antennas
  • DC-IN 12~24V
  • Ultra Slim with fanless design
Price from €502.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 3 models

Promocja cenowa na model HDR-15-5

Product intended for professional use only
MS-1P17

MS-1P17

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    MS-1P17-SKU1
    miniPCI, N97, 8GB, 128 GB SSD, DP/HDMI, 2LAN, 6USB, COM
    Out of stock Warranty:
    €502.00
    €617.46
    Login to check your price
    MS-1P17-SKU1
    miniPCI, N97, 8GB, 128 GB SSD, DP/HDMI, 2LAN, 6USB, COM
    Availability: Out of stock
    Net price:
    €502.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    MS-1P17-SKU2
    miniPCI, x7425E, 8GB, 128 GB SSD, DP/HDMI, 2LAN, 6USB, COM
    In stock
    Warranty:
    €528.00
    €649.44
    Login to check your price
    MS-1P17-SKU2
    miniPCI, x7425E, 8GB, 128 GB SSD, DP/HDMI, 2LAN, 6USB, COM
    Availability:
    In stock
    Net price:
    €528.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    MS-1P17-SKU3
    miniPCI, i3-N305, 8GB, 128 GB SSD, DP/HDMI, 2LAN, 6USB, COM
    Out of stock Warranty:
    €630.00
    €774.90
    Login to check your price
    MS-1P17-SKU3
    miniPCI, i3-N305, 8GB, 128 GB SSD, DP/HDMI, 2LAN, 6USB, COM
    Availability: Out of stock
    Net price:
    €630.00

Technical Specification

  1P17-SKU1 1P17-SKU2 1P17-SKU3
CPU Intel Processor N97 Intel Atom X7425E Intel Core i3-N305
RAM Up to 16 GB DDR5 Up to 16 GB DDR5 Up to 16 GB DDR5
DisplayPort 1 1 1
HDMI 1 1 1
Audio Mic in, Line out Mic in, Line out Mic in, Line out
Gigabit Ethernet 2 x 2.5GbE LAN 2 x 2.5GbE LAN 2 x 2.5GbE LAN
2,5" HDD - - -
mSATA - - -
M.2 1x M.2 B key (SATA/PCIe x1), 2242/3042/2280
1x M.2 E key (PCIe x1, USB 2.0), 2230
1x M.2 B key (SATA/PCIe x1), 2242/3042/2280
1x M.2 E key (PCIe x1, USB 2.0), 2230
1x M.2 B key (SATA/PCIe x1), 2242/3042/2280
1x M.2 E key (PCIe x1, USB 2.0), 2230
USB 3.1 4 4 4
USB 2.0 2 2 2
RS-232/422/485 1 1 1
miniPCIe - - -
TPM Yes Yes N/A
Working temp. -20°C ~ +60°C -20°C ~ +60°C -20°C ~ +60°C
