Compact-Size Box PC with Intel IOTG Alder Lake-N Processor for Ultra Low-Power Fanless Solution
Price from €528.00 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
Recommended
MS-C907

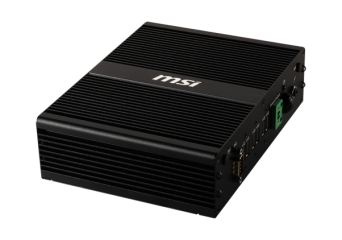

Compact-Size Box PC with Intel IOTG Alder Lake-N Processor for Ultra Low-Power Fanless Solution
Manufacturer: MSI IPC
Manufacturer: MSI IPC
- Intel Alder Lake-N PC Client Series SoC
- DDR5 4800 MHz SODIMM Slot up to 16GB
- Dual independent displays: DP, HDMI
- 2 2.5 GbE LAN with RJ-45
- 1 M.2 B Key, 1 M.2 E Key Slot
- SATA 3.0 for storage(2.5” SSD/HDD)
- 2 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 6 USB 2.0, 2 COM (1 RS-485), GPIO, Audio, Amplifier-6W
- 2 COM or 2 CANbus (Option by M.2 Module)
- 4 opening reserved for antennas
- Anti-Vibration & Shockproof Design to Compliance IEC 61373
- Wide Voltage DC-IN 9~36V
- Compact with fanless design
Price from €528.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddELM-SWIFT-001Industrial BoxPC, N97, bareboneRecommended
In stockWarranty: €528.00€649.44Login to check your price ELM-SWIFT-001Industrial BoxPC, N97, bareboneRecommended
Availability:In stockNet price:€528.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddELM-SWIFT-002Industrial BoxPC, i3-N305, bareboneRecommended
In stockWarranty: €728.00€895.44Login to check your price ELM-SWIFT-002Industrial BoxPC, i3-N305, bareboneRecommended
Availability:In stockNet price:€728.00
Description
Technical Specification
| MS-C907 | ||
| CPU | Intel IOTG Alder Lake-N Processor N97 | Intel IOTG Alder Lake-N Core i3-N305 |
| Memory | Up to 16 GB DDR5 | |
| DisplayPort | 1 | |
| HDMI | 1 | |
| Audio | Mic in, Line out | |
| Gigabit Ethernet | 2 | |
| Slot 2,5" HDD | 1 | |
| Slot mSATA | - | |
| Slot M.2 | 1 x M.2 B key (SATA/PCIe x1), 2242/3042/2280 1 x M.2 E key (PCIe x1, USB 2.0), 2230 |
|
| Slot miniPCIe | - | |
| USB 3.2 | 4 | |
| USB 2.0 | 6 | |
| Serial Ports | 2x COM ports COM1: RS-232/422/485, 0V/5V/12V COM2: RS-232 COM3~4: Option by M.2 Module |
|
| GPIO | 8-bit (4*GPI; 4*GPO), 5V | |
| CANbus | 2 (Option by M.2 Module) | |
| TPM | Infineon SLB9672VU2.0 | |
| Working temperature | -10 ~ 40°C -10 ~ 55°C (w/ WT devices) |
|
