MS-9A85

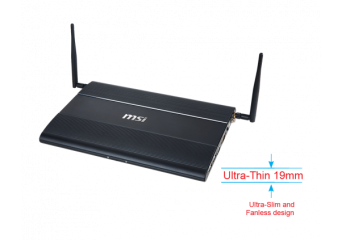

Ultra-Slim & Featherweight Fanless Box PC with Intel® Apollo Lake Platform, Low-Power for Digital Signage
- Intel® Apollo Lake Series SoC
- 1 DDR3L 1866/1600 MHz SODIMM slot up to 8GB
- Triple independent displays: 2 DP, HDMI 2.0
- 2 GbE LAN with RJ-45
- 1 M.2 E Key, 1 Mini-PCIe(Full-size, with SIM Holder) slot
- M.2 M key, SATA 3.0 (2.5” SSD/HDD, 7mm) for storage
- 3 USB 3.2 Gen 1, USB 2.0, COM(RS485), Audio
- Onboard TPM 2.0 (by option)
- Easy access HDD, Memory, SIM Card, Mini-PCIe, M.2 slots
- DC-IN 19V
- Ultra-slim, cableless & low power fanless design with thinness 19mm
Price from €411.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMS-9A85miniPC, J3455E, 2DP/HDMI2.0, COM, 2GbLANPromotion
Out of stock Warranty: €411.00€505.53Login to check your price MS-9A85miniPC, J3455E, 2DP/HDMI2.0, COM, 2GbLANPromotion
Availability: Out of stockNet price:€411.00
Description
- Intel® Apollo Lake Series SoC
- 1 DDR3L 1866/1600 MHz SODIMM slot up to 8GB
- Triple independent displays: 2 DP, HDMI 2.0
- 2 GbE LAN with RJ-45
- 1 M.2 E Key, 1 Mini-PCIe(Full-size, with SIM Holder) slot
- M.2 M key, SATA 3.0 (2.5” SSD/HDD, 7mm) for storage
- 3 USB 3.2 Gen 1, USB 2.0, COM(RS485), Audio
- Onboard TPM 2.0 (by option)
- Easy access HDD, Memory, SIM Card, Mini-PCIe, M.2 slots
- DC-IN 19V
- Ultra-slim, cableless & low power fanless design with thinness 19mm
Technical Specification
| CPU | Intel® Celeron® Processor J3455, QC, 10W |
| Frequency | 1.5 GHz, up to 2.3 GHz |
| L2 Cache | 2MB |
| Typ CPU | BGA |
| Chipset | Integrated |
| BIOS | AMI |
| Technology | Single-Channel DDR3L 1600/1866 MHz |
| Max. Capacity | Do 8 GB |
| Socket | 1 x 204-pin SO-DIMM |
| Controller | Intel® HD Graphics |
| Graphic Memory | Shared system memory up to 1.7 GB SDRAM |
| Multiple Display | 3 independent displays |
| Display Interface | HDMI 2.0 up to 3840 x 2160 @60Hz DP 1.2 up to 4096 x 2160 @60Hz (Resolution combination depends on various application) |
| Controller | 2 x Intel® I211-AT GbE LAN |
| Controller | Realtek® ALC887/888S HD Audio Codec |
| Watchdog Timer | 256-level Watchdog Timer |
| Smart Fan | N/A |
| Controller | Infineon SLB9665TT2.0 (by BOM option) |
| M.2 | 1 x E key (PCIe x2, USB 2.0), 2230 1 x M key (SATA only), 2280 |
| Mini-PCIe | 1 x Full-size (with SIM holder) |
| SATA | 1 x 2.5" HDD/SSD |
| mSATA | N/A |
| RJ-45 | 2 |
| Audio | 1 x Line-out (Mic-in by AP driver) |
| USB | 1 x USB 2.0 3 x USB 3.2 Gen 1 |
| Serial | 1 x COM port COM1: RS-232/422/485, 0V/5V/12V |
| Parallel | N/A |
| PS/2 | N/A |
| GPIO | N/A |
| CANbus | N/A |
| HDMI | 1 |
| LVDS | N/A |
| DVI | N/A |
| DisplayPort | 2 |
| VGA | N/A |
| Antenna | 2 openings reserved for antennas |
| DC Input | DC-in 19V with Lockable DC Jack |
| AC Input | N/A |
| IP Rating | N/A |
| Operating Temperature | -10 ~ 50°C (SSD) 0 ~ 40°C (HDD/WT M.2 M key) |
| Operating Humidity | 10 ~ 90%, non-condensing |
| Storage Temperature | -20 ~ 80°C |
| Storage Humidity | 10 ~ 90%, non-condensing |
| Vibration | Operating, 0.25 Grms, 5-300Hz, 3axes (w/ HDD) |
| Shock | Operating, 3 G, half sine 11 ms duration (w/ HDD) |
| Dimensions (W x D x H) | 180 x 255 x 19 mm |
| Weight | 1.13 kg |
| Mounting | VESA |
| EMC | FCC, CE, RCM, VCCI, BSMI |
| Safety | BSMI, Energy Star |
| OS Support | Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5) Linux Fedora 25 (by request) Linux Ubuntu 16.04 (by request) |
