new

MS-C926

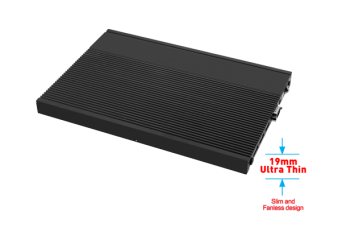

Ultra-Slim & Featherweight Fanless Box PC with Intel Alder Lake-N/Twin Lake Platform, Low-Power for Digital Signage

  • Intel Alder Lake-N/Twin Lake PC Client Series SoC
  • DDR5 4800 MHz SODIMM Slot up to 16GB
  • Triple independent displays: 2 DP, HDMI 2.0
  • 2 GbE LAN with RJ-45
  • 1 M.2 B key (with NANO SIM-holder) support 5G/LTE, 1 M.2 E key
  • 3 USB 3.2 Gen 1, USB 2.0, COM(RS485), Audio
  • Onboard TPM 2.0 (by option)
  • Easy access HDD, Memory, SIM Card, M.2 slots
  • DC-IN 12~24V
  • Ultra-slim, cableless & low power fanless design with thinness 19mm
Product out of stock

Free shipping from €300

Promocja cenowa na model HDR-15-5

Product intended for professional use only
MS-C926

MS-C926

Technical Specification

CPU Intel Twin Lake Processor N150
Memory Up to 16 GB DDR5
DisplayPort 2
HDMI 1
Audio Line out
Gigabit Ethernet 4x 2.5 GbE LAN
Slot 2,5" HDD 1 x 2.5" SSD Bay
Slot mSATA -
Slot M.2 1 x M.2 B key (PCIe x1/SATA, USB 3.2 Gen 2 x 1,  USB 2.0, w/NANO SIM-Holder), 2242/3042/2280
 1 x M.2 E key (PCIe x1, USB 2.0), 2230
Slot miniPCIe -
USB 3.2 3
USB 2.0 1
Serial Ports 1 x COM port
COM1: RS-232/422/485, 0V/5V/12V
GPIO -
CANbus -
TPM TPM 2.0 (optional)
Operating System Windows, Linux
Working temperature -10~50 °C
