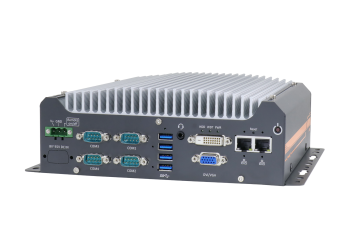

NUVO-7501
Compact fanless computer with Intel® 9th / 8th -Gen Core ™ i7/i5/i3 processors, 2x GbE and 4x COM ports
- Compact 255 x 173 x 76 mm footprint
- Intel® 9th/ 8th-Gen Core™ 35W LGA1151 CPU
- Rugged, -25°C to 60°C fanless operation
- 2x GbE and 4x USB 3.1 Gen1
- 6x COM ports, isolation on ports 1~ 4
- VGA + DVI dual display outputs
- Accommodates one 3.5" or 2.5" HDD/ SSD
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
NUVO-7501
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNuvo-7501Core gen 9/8, DVI-I/VGA, 2xGbE, 4xCOMOut of stock Warranty: Nuvo-7501Core gen 9/8, DVI-I/VGA, 2xGbE, 4xCOMAvailability: Out of stock-
Description
Nuvo-7501 is a cost-effective, compact and yet powerful fanless embedded computer with a 255 x 173 x 76 mm footprint. Powered by an Intel® 9th/ 8th-Gen Core™ hexa/ octa core CPU, it offers more than 50% computation performance improvement over the previous generation.
Nuvo-7501 is designed to be simple and compact while retaining essential elements of a rugged embedded fanless solution. It features I/Os such as 2x GbE, 4x USB 3.1 Gen1 and 4x COM ports for common industrial applications. In addition to the M.2 2280 SATA slot (SATA signal) and can also support a 2.5" SSD/ HDD or a 3.5" HDD. Its' derivative model, Nuvo-7505D, offers isolated DIO and isolated COM, which can protect the controller against ground loops in harsh environments.
The Nuvo-7501 has retained quality materials all Neousys systems utilize and the design flow/ stringent test procedures it must endure. It is a fanless embedded platform that has hit the sweet spot in terms of cost, size and performance. Nuvo-7501 is an ideal fanless embedded solution for various industrial applications.
Technical Specification
| Processor | Intel® 8th/ 9th-Gen Core™ CPU (LGA1151 socket) - Intel® Core™ i7-8700*/ i7-8700T/ i7-9700E*/ i7-9700TE - Intel® Core™ i5-8500*/ i5-8500T/ i5-9500E*/ i5-9500TE - Intel® Core™ i3-8100*/ i3-8100T/ i3-9100E*/ i3-9100TE |
|---|---|
| Chipset | Intel® H310 platform controller hub |
| Graphics | Intel® UHD Graphics 630 |
| Memory | Up to 32 GB DDR4 2666/ 2400 SDRAM (1x SODIMM slot) |
| AMT | N/A |
| TPM | N/A |
| Ethernet Port | 2x Gigabit Ethernet ports (I219 i I210) |
| PoE+ | N/A |
| USB | 4x USB 3.1 Gen1 (5 Gbps) |
| Video Port | 1x VGA , 1920 x 1200 1x DVI-D, 1920 x 1200 |
| Serial Port | 2x RS-232/422/485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4) |
| Audio | 1x 3.5 mm jack dla mic-in i speaker-out |
| PCI/PCI Express | N/A |
| Mini PCI-E | 1x full-size mini PCI Express socket |
| M.2 | 1x M.2 2242 B key socket with internal SIM |
| Expandable I/O | N/A |
| SATA HDD | 1x internal SATA port for 3.5" HDD or 2.5" HDD/ SSD |
| M.2 | 1x M.2 2280 SATA interface |
| mSATA | N/A |
| DC Input | 1x 3-pin pluggable terminal block for 8V to 35V DC input |
| Remote Ctrl. & LED Output | 1x 10-pin (2x5) pin header for remote on/off control and status LED output |
| Dimension | 255 mm (W) x 173 mm (D) x 76 mm (H) |
| Weight | 2.68 kg |
| Mounting | Wall-mount or optional DIN-Rail |
| Operating temperature | -25 ° C ~ 60 ° C ** |
| Storage temperature | -40°C ~ 85°C |
| Humidity | 10% ~ 90% , non-condensing |
| Vibration | MIL-STD-810G, Method 514.6, Category 4 |
| Shock | MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| EMC | CE/FCC Class A, według EN 55032 & EN 55024 |
* Due to thermal limitations, 65W CPUs will be configured to operate in 35W mode by default.
** For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
*** For i7 CPUs, thermal throttling may occur when sustained full-loading applied at 60°C ambient temperature.
