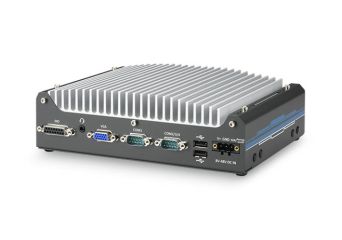

NUVO-9531

Intel® 12th and 13th -Gen Core™ i9/ i7/ i5/ i3 Compact Fanless Computer with 4x GbE, 4x USB3.2 and 1x Hot-swappable HDD Tray

  • 212 x 165 x 63 mm low-profile design
  • Intel® 12thor 13th-Gen Core™ 35W/ 65W LGA1700 CPU
  • Rugged, -25°C to 60°C fanless operation
  • 4x GbE and 4x USB3.2 Gen 1 with screw-lock
  • 1x hot-swappable HDD tray and 1x M.2 2280 Gen4 x4 NVMe for storage
  • 2x full-size mPCIe sockets
  • 4-CH isolated DI and 4-CH isolated DO
  • VGA + DP dual display outputs
In delivery

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Product intended for professional use only
NUVO-9531

NUVO-9531

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    Nuvo-9531
    Core gen 12, 4xGbE, 4xUSB, 1xHotSwapSSD
    In delivery Warranty:
    Nuvo-9531
    Core gen 12, 4xGbE, 4xUSB, 1xHotSwapSSD
    Availability: In delivery
    -

Accessories

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    AccsyBx-FAN-Nuvo9531_9501
    Fan kit with 92mm x 92mm fan for Nuvo-9501 serie
    In delivery Warranty:
    €70.00
    €86.10
    Login to check your price
    AccsyBx-FAN-Nuvo9531_9501
    Fan kit with 92mm x 92mm fan for Nuvo-9501 serie
    Availability: In delivery
    Net price:
    €70.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    DINRAIL-31
    DIN-Rail mounting assembly for Nuvo-3100/3120/5501 series
    In delivery Warranty:
    €35.00
    €43.05
    Login to check your price
    DINRAIL-31
    DIN-Rail mounting assembly for Nuvo-3100/3120/5501 series
    Availability: In delivery
    Net price:
    €35.00

Description

Nuvo-9531 is one of the most compact fanless embedded computers based on the Intel 12th or 13th-Gen platform. Measuring just 212 x 165 x 63 mm, it can fit into restricted spaces, such as in robotic arm and AMR applications. Despite its compact size, Nuvo-9531 does not compromise on performance. Built on Intel's 7nm process, Intel 12th Gen processors have up to 16 cores/ 24 threads to deliver up to 1.8x the performance when compared to previous Intel 10th or 11th Gen platforms. Nuvo-9531 is a compact fanless embedded computer that can provide the ultimate computing for various industrial applications.

Nuvo-9531 has rich I/O functions. It features four GbE and four USB3.2 Gen 1 ports for multiple camera connectivity. In addition, it features a Gen4 x4 M.2 NVMe slot for the latest NVMe SSDs that support read/ write speeds up to 7000 MB/s. It also has another hot-swappable HDD tray to hot-swap the storage drive without turning off the system or dismantling the chassis. There are two mPCIe and one M.2 E key slots to install WiFi or 5G/ 4G for wireless communication needs. In addition, Nuvo-9531 is also equipped with 8x DIO, 2x COM ports, and dual display outputs for your application needs.

As a compact embedded computer, Nuvo-9531 delivers excellent computing performance and offers an abundance of I/O connections. It is suitable for a variety of industrial applications, especially when installation space is limited. Nuvo-9531 is the ideal compact fanless computer for the industrial market.

Technical Specification

Processor Supporting Intel® 12th and 13th-Gen Core™ CPU (LGA1700 socket, 35W/ 65W TDP)
- Intel® Core™ i9-12900E/ i9-12900TE
- Intel® Core™ i7-12700E/ i7-12700TE
- Intel® Core™ i5-12500E/ i5-12500TE
- Intel® Core™ i3-12100E/ i3-12100TE
- Intel® Pentium® G7400E/ G7400TE
- Intel® Celeron® G6900E/ G6900TE
Chipset Intel® 600 Series PCH platform controller hub
Graphics Integrated Intel® UHD Graphics 770 (32EU)
Memory Up to 32GB non-ECC DDR4 3200 SDRAM (one SODIMM slot)
TPM Supports dTPM 2.0
Ethernet Port 4x Gigabit Ethernet ports by 4x I210
USB 4x USB 3.2 Gen1 (5 Gbps) ports
2x USB 2.0 ports
Video Port
(Integrated Graphics)
1x VGA output, supporting 1920 x 1200 resolution
1x DisplayPort, supporting 4096 x 2304 resolution
Serial Port 1x software-programmable RS-232/422/485 ports (COM1)
3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2)
Audio 1x 3.5 mm jack for mic-in and speaker-out
Isolated DIO DIO 4-CH isolated DI and 4-CH isolated DO
Mini PCI Express 2x full-size mini PCI Express sockets with internal SIM sockets
M.2 E key 1x M.2 2230 E key socket for WiFi5, WiFi6 or Google edge TPU module
SATA HDD 1x hot-swappable 2.5" HDD/ SSD tray
M.2 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD
DC Input 1x 3-pin pluggable terminal block for 8 to 48V DC input
Dimension 212 mm (W) x 165 mm (D) x 63 mm (H)
Weight 2.5kg
Mounting Wall-mount (standard) or DIN-rail mount (optional)
Operating Temperature with 35W CPU
-25°C ~ 60°C *
with 65W CPU (installation of the optional fan kit is recommended)
-25°C ~ 60°C */**
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, MIL-STD-810G, Method 514.6, Category 4
Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC CE/FCC Class A, according to EN 55032 & EN 55035
