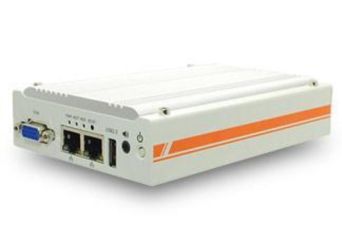

POC-120
Intel® Atom™ Bay Trail-I ultra-compact fanless rugged embedded IoT gateway computer
- Low-profile, Ultra-compact 15cm x 10cm x 3.4cm footprint
- Intel® Atom™ E3826 1.46GHz dual-core processor
- Rugged, wide temperature range from -25°C to 70°C fanless operation
- Two GigE ports and three USB ports
- One RS-232/422/485 port and one RS-232 port
- I/O expansion interface for ODM projects
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPOC-120MZ-026Atom E3826,VGA,2 x GbE, 2 x USB 3.1 + 1 x USB 2.0, MezIO,10xCOM MezIO-C181-12 (4x RS-232/422/485, 4x RS-422/485)Out of stock Warranty: POC-120MZ-026Atom E3826,VGA,2 x GbE, 2 x USB 3.1 + 1 x USB 2.0, MezIO,10xCOM MezIO-C181-12 (4x RS-232/422/485, 4x RS-422/485)Availability: Out of stock-
Description
Introducing the latest member of Neousys' ultra-compact POC family! POC-120 is a low-cost, entry-level fanless embedded computer with yet more compact dimension. It further reduces its height to 3.4 cm to have a very low-profile chassis for restricted space. POC-120 incorporates Intel® Atom™ E3826 dual-core processor to deliver adequate computing performance. It provides general I/O, such as GigE ports, COM ports and USB 3.1 Gen1/ USB 2.0 ports, for most embedded applications. Instead traditional HDD, POC-120 supports mSATA SSD to ensure reliable disk access in harsh environments.
POC-120 reserves internally a high-speed interface for I/O expansion. By customizing a mezzanine board, you can have versatile I/O functions. This makes POC-120 not only an ultra-compact controller, but also a tailor-made embedded system for your specific application. Please contact Neousys for POC-120 OEM/ODM projects.
Technical Specification
| Processor | Intel® Atom™ E3826 1.46 GHz dual-core processor |
|---|---|
| Graphics | Integrated Intel® HD graphics |
| Memory | Up to 8GB DDR3L-1333 (single SO-DIMM slot) |
| Gigabit Ethernet Port | 2x Gigabit Ethernet ports by Intel® I210 GbE controller |
| Video Port | 1x VGA connector for both analog RGB output, supporting 2560x1600 resolution |
| Serial Port | 1x RS-232/422/485 (COM1) 1x RS-232 (COM2) |
| USB | 1x USB 3.1 Gen1 port and 2x USB 2.0 ports |
| Audio | 1x Speaker-out |
| mSATA | 1x full-size mSATA socket |
| DC Input | Built-in 8V to 35V DC input |
| Input Connector | 2-pin spring-clamp terminal block for DC input |
| Dimension | 149mm (D) x 105 mm (W) x 34mm (H) |
| Weight | 0.9 kg |
| Mounting | Wall-mounting (standard) or DIN-Rail mounting (optional) |
| Operating Temperature | -25°C ~ 70°C with SSD, 100% CPU loading */** |
| StorageTemperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes(w/ SSD, according to IEC60068-2-64) |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
| EMC | CE/FCC Class A, according to EN 55022 & EN 55024 |
